Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pulley from the power steering pump. Refer to Power Steering Pulley Replacement .
  2. Remove the power steering pressure hose from the power steering pump. Refer to Power Steering Pressure Hose Replacement .
  3. Remove the power steering return hose from the power steering pump. Refer to Power Steering Return Hose Replacement .
  4. Remove the power steering pump mounting bolts.
  5. Remove the power steering pump assembly.
  6. Remove the power steering pump reservoir from the power steering pump.

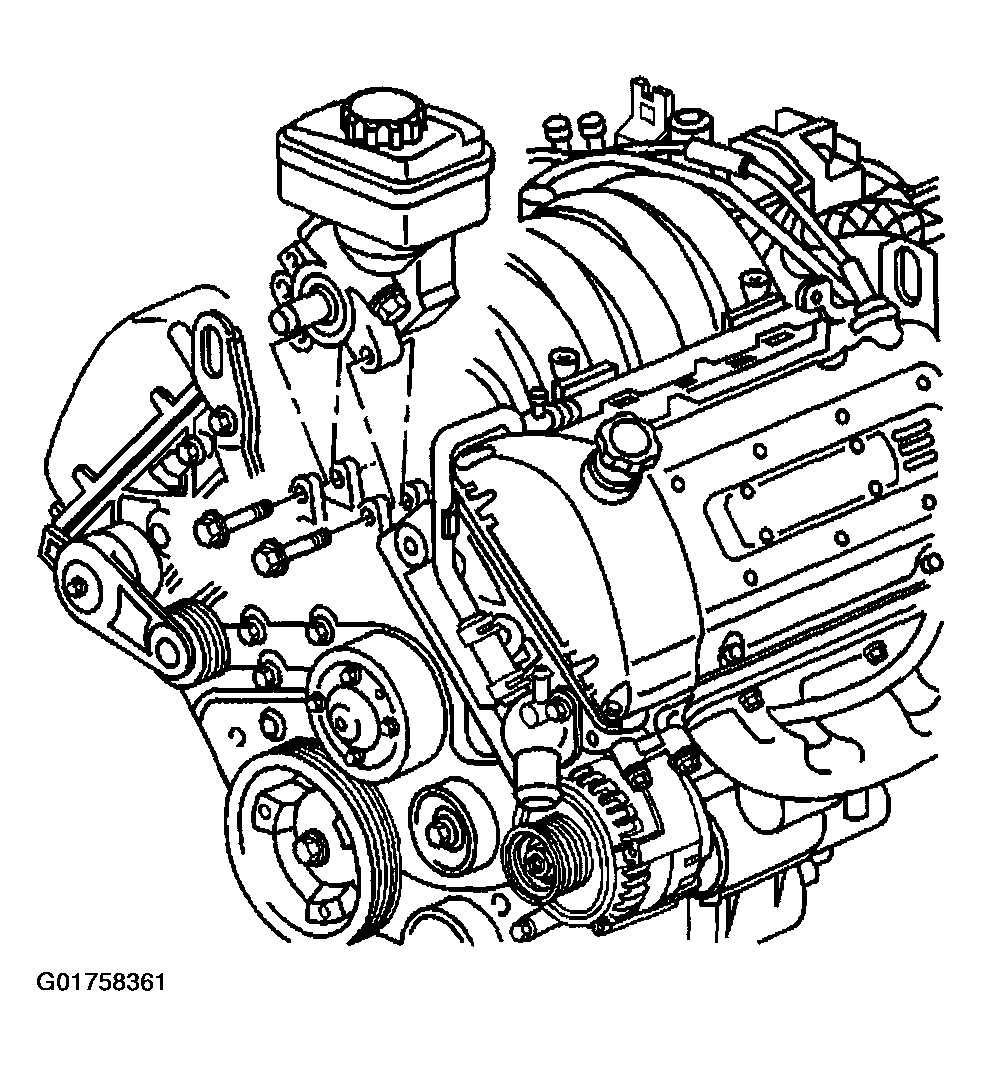

    Fig 1: Power Steering Pump Reservoir Removed
    G01758361Courtesy of GENERAL MOTORS CORP.
