Assembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. After replacing the damaged pump assembly (1) with the new pump assembly (1), assemble the pump reservoir.
  2. Refer to Power Steering Reservoir Replacement - Off Vehicle .

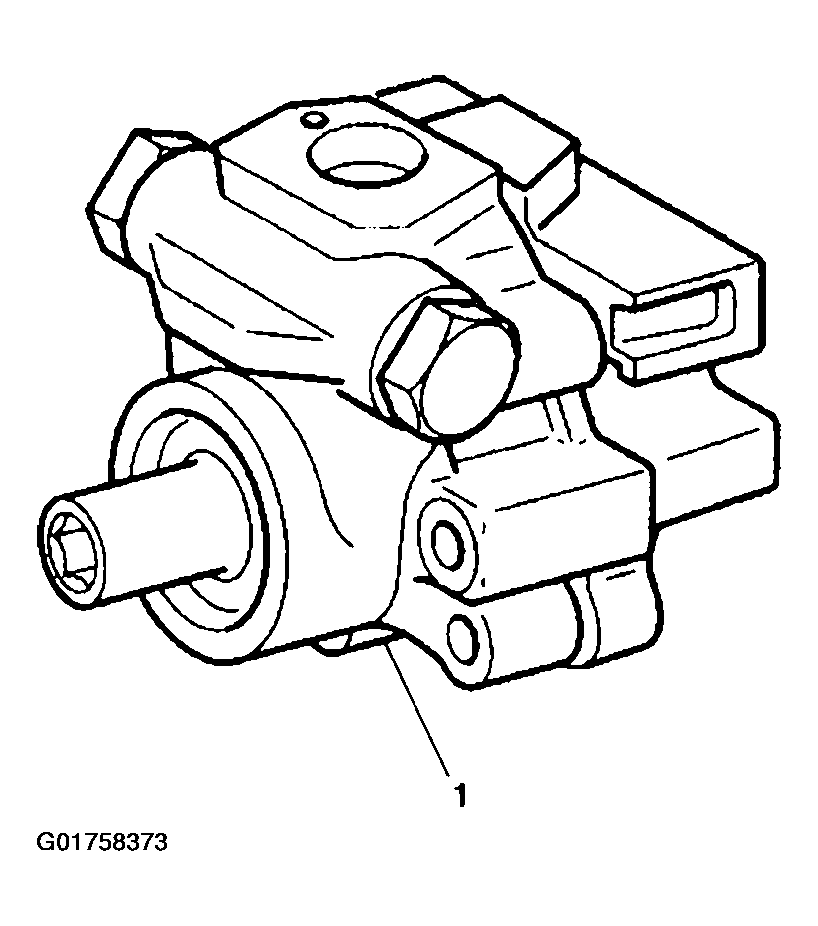

    Fig 1: Pump Assembly
    G01758373Courtesy of GENERAL MOTORS CORP.
