Vacuum Reservoir Tank: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Instrument Panel (I/P) insulator. Disconnect the vacuum hoses from the vacuum tank. See Fig 1. Remove the screws that secure the vacuum tank to the HVAC module. Remove the vacuum tank. See Fig 2.

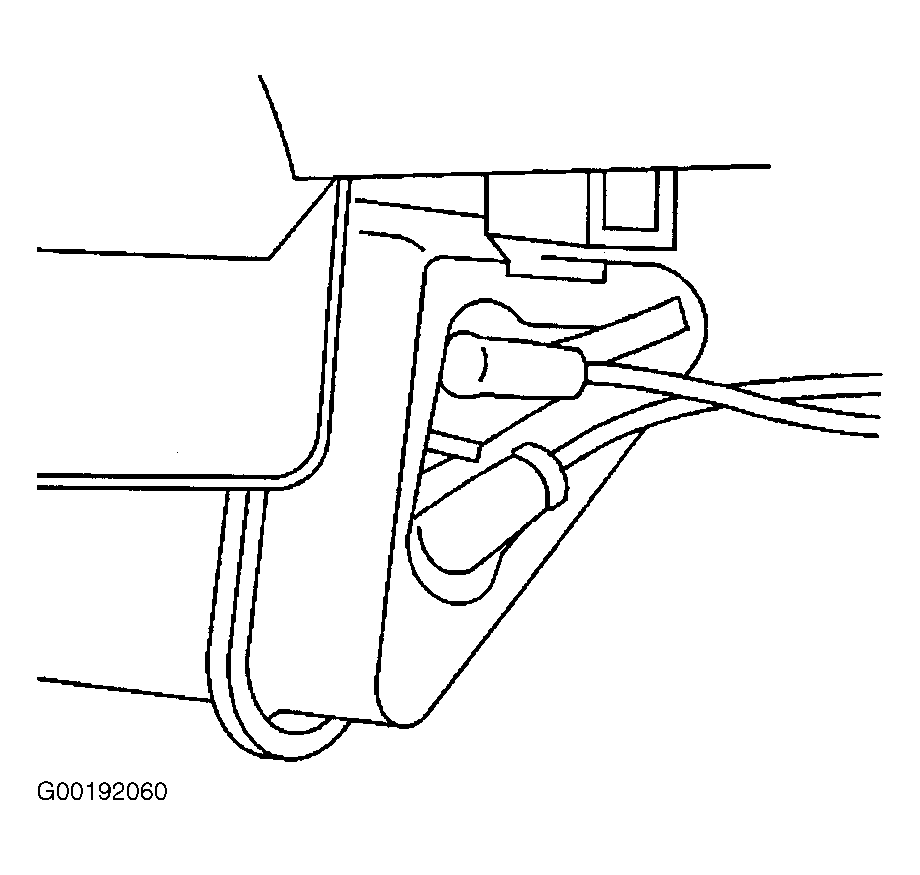

Fig 1: Locating Vacuum Hoses At Vacuum Tank

Courtesy of GENERAL MOTORS CORP.

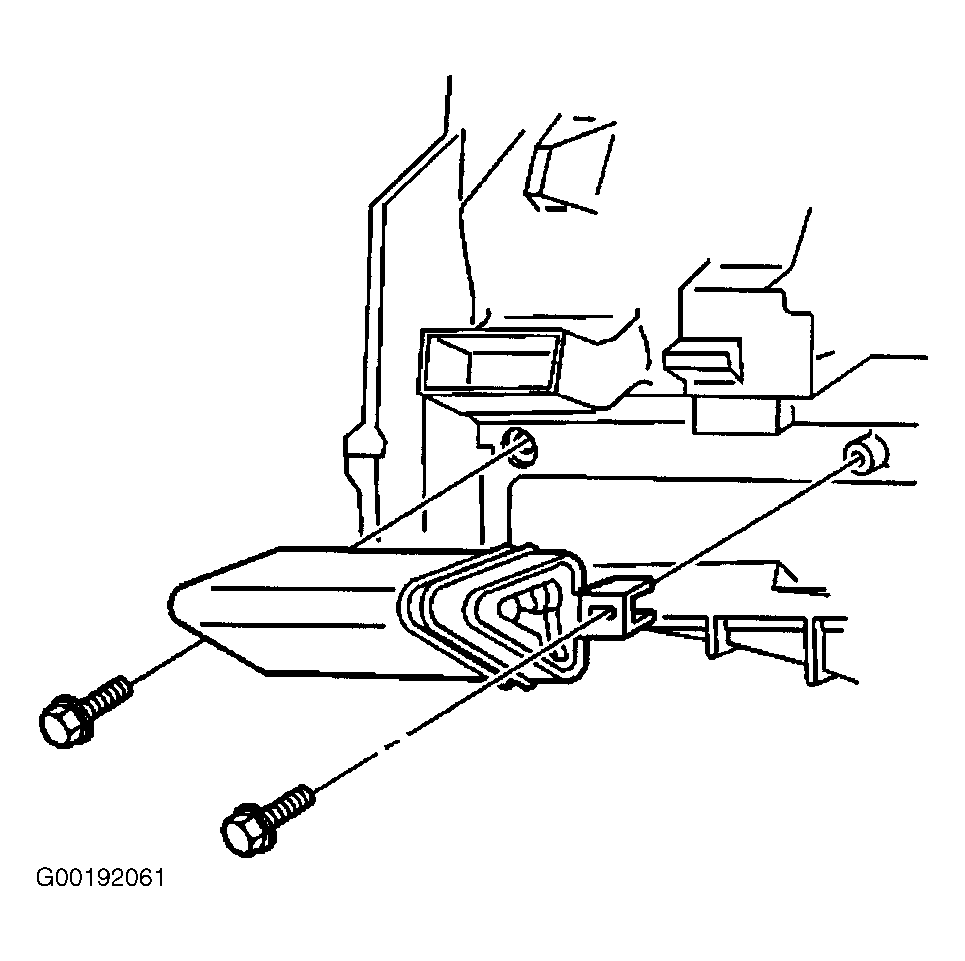

Fig 2: Removing & Installing Vacuum Tank

Courtesy of GENERAL MOTORS CORP.
