Vacuum Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel (I/P) insulator. Disconnect the electrical connector from the vacuum control assembly. See Fig 1.
  2. Disconnect the vacuum harness connector from the vacuum control assembly. See Fig 2. Remove the mounting screws from the vacuum control assembly.
    3. NOTE: Important: Pull the control solenoid straight down to release the tab from the slot in the HVAC module case.
  3. Remove the vacuum control assembly. See Fig 3.

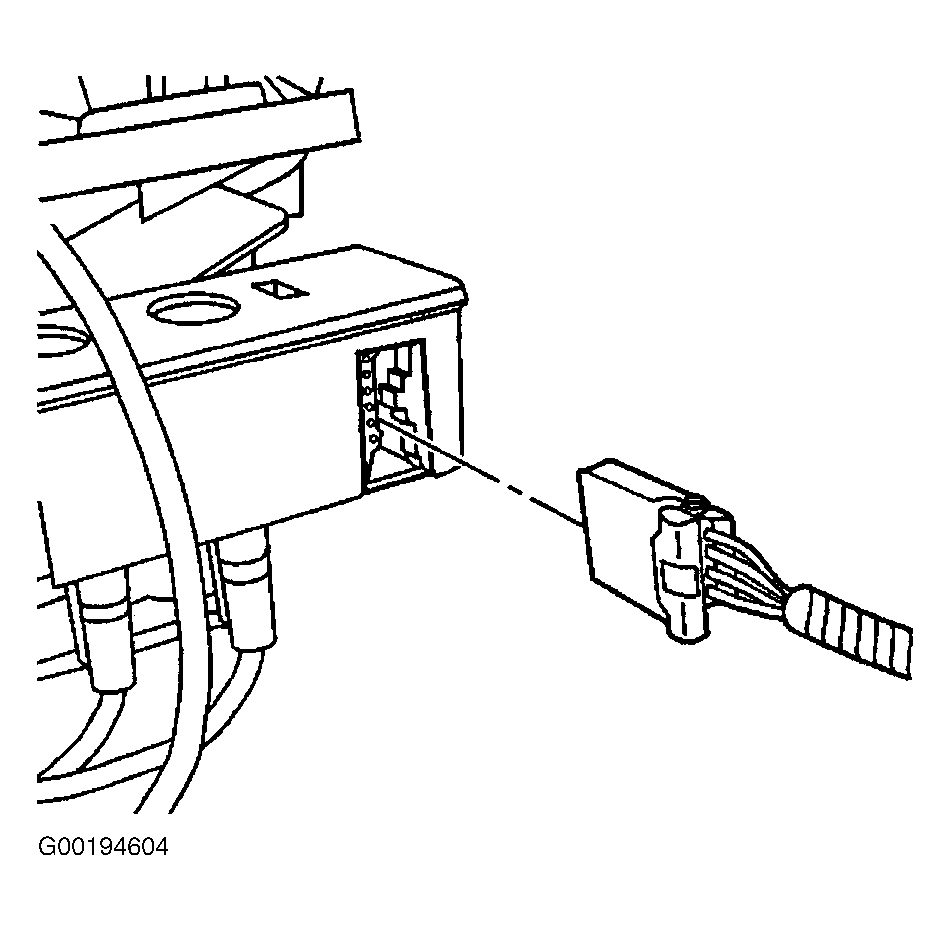

Fig 1: Removing & Installing Vacuum Control Assembly
G00194604Courtesy of GENERAL MOTORS CORP.

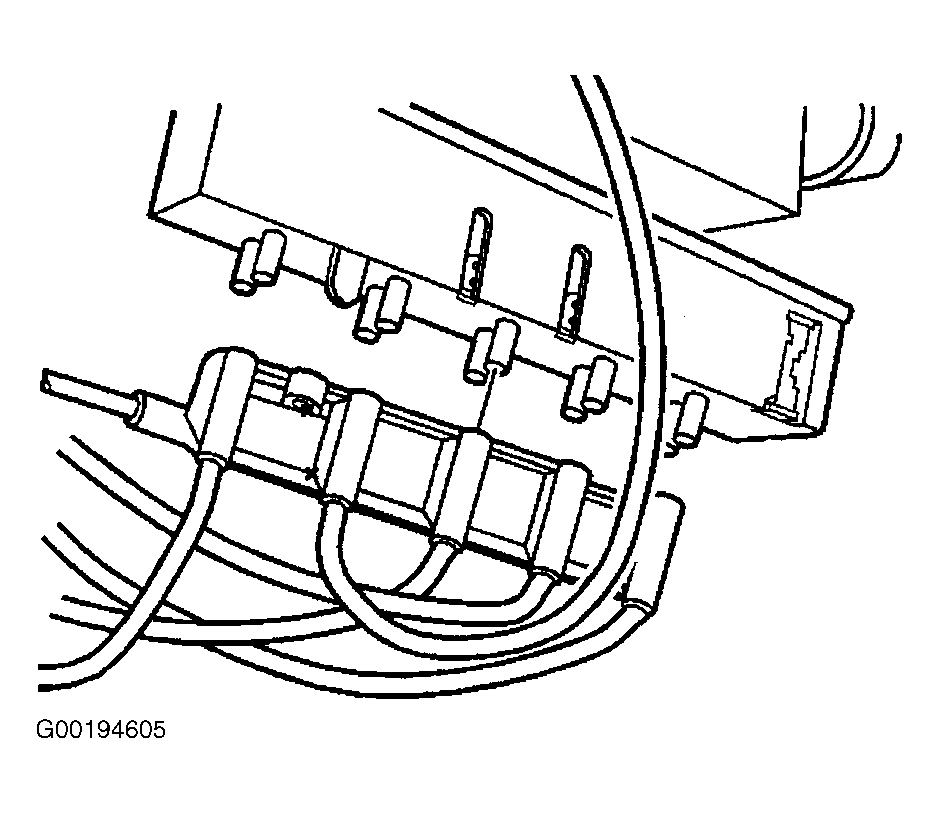

Fig 2: Removing & Installing Vacuum Harness Connector
G00194605Courtesy of GENERAL MOTORS CORP.

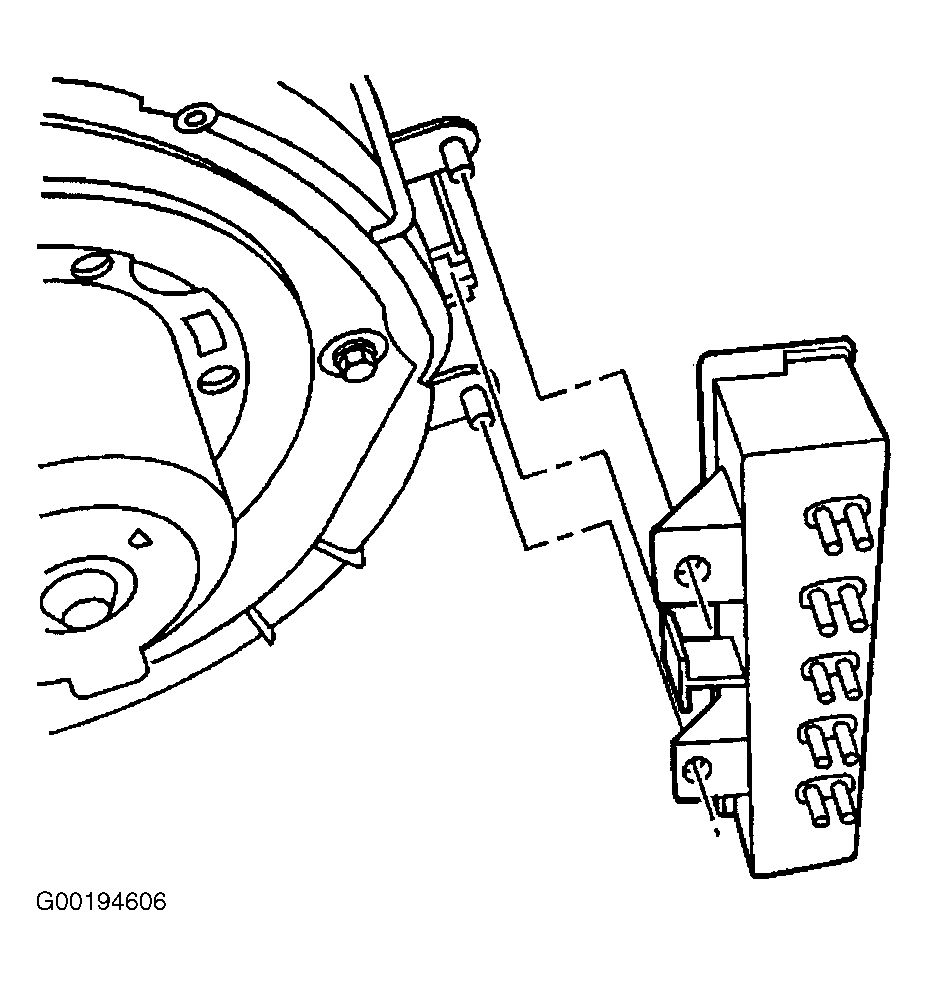

Fig 3: Removing & Installing Vacuum Control Assembly
G00194606Courtesy of GENERAL MOTORS CORP.
