Removal (Right)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right side Instrument Panel (I/P) insulator. Remove the I/P compartment. Disconnect the electrical connector from the right air temperature actuator. See Fig 1.
Remove the screws retaining the right air temperature actuator. See Fig 2. Remove the right air temperature actuator.

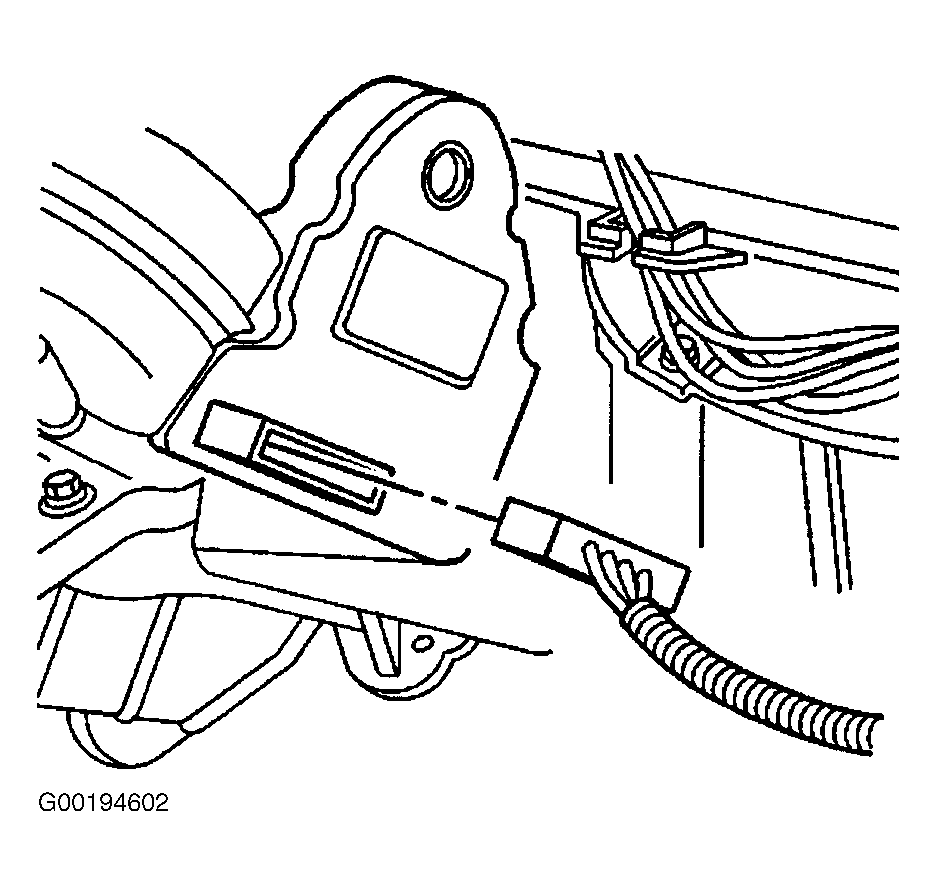

Fig 1: Locating Right Temperature Actuator Connector

Courtesy of GENERAL MOTORS CORP.

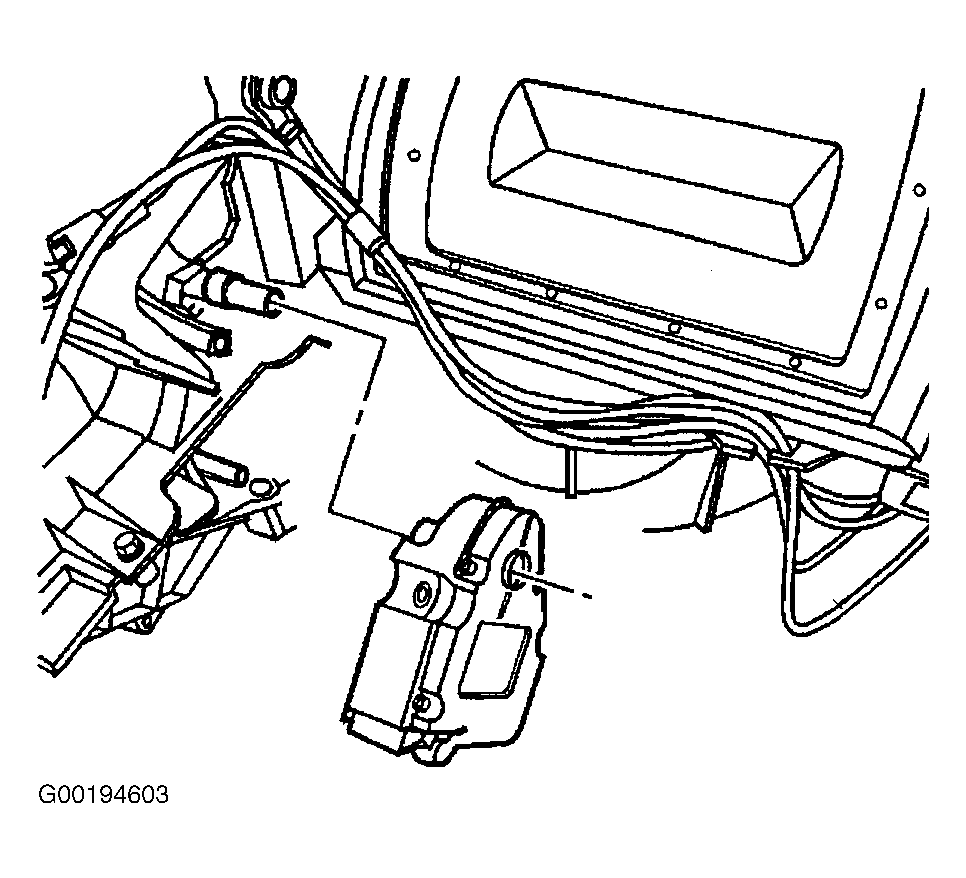

Fig 2: Removing & Installing Right Temperature Actuator

Courtesy of GENERAL MOTORS CORP.
