Removal (Left)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left Instrument Panel (I/P) insulator. Remove the steering column filler and the knee bolster bracket. See Fig 1 and Figure
Disconnect the electrical connector from the left air temperature actuator. See Fig 2. Remove the mounting screws from the left air temperature actuator. Remove the left air temperature actuator.

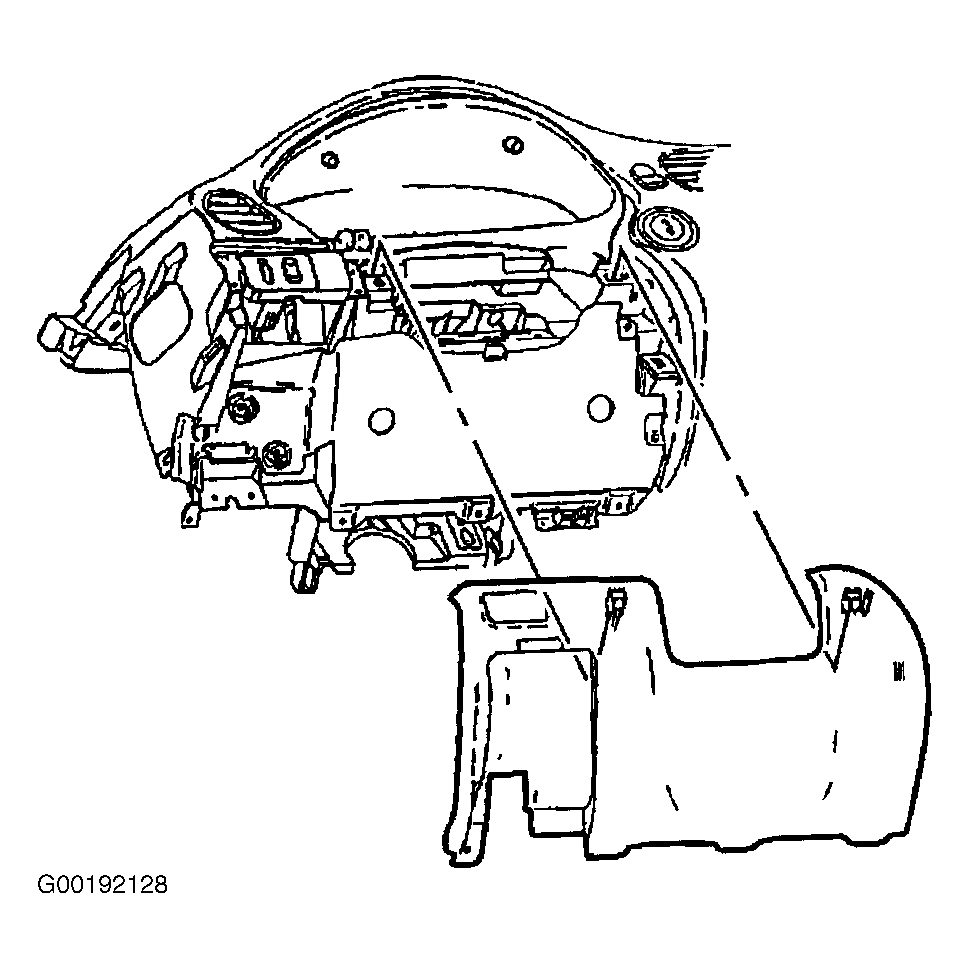

Fig 1: Removing & Installing Steering Column Filler

Courtesy of GENERAL MOTORS CORP.

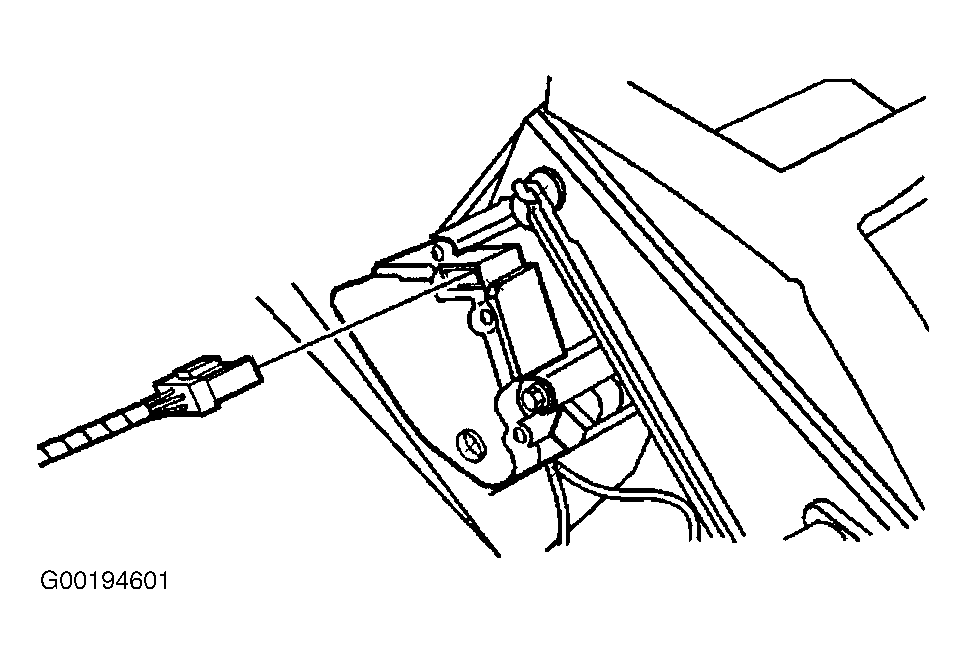

Fig 2: Removing & Installing Left Temperature Actuator

Courtesy of GENERAL MOTORS CORP.
