Sun Load Sensor: Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

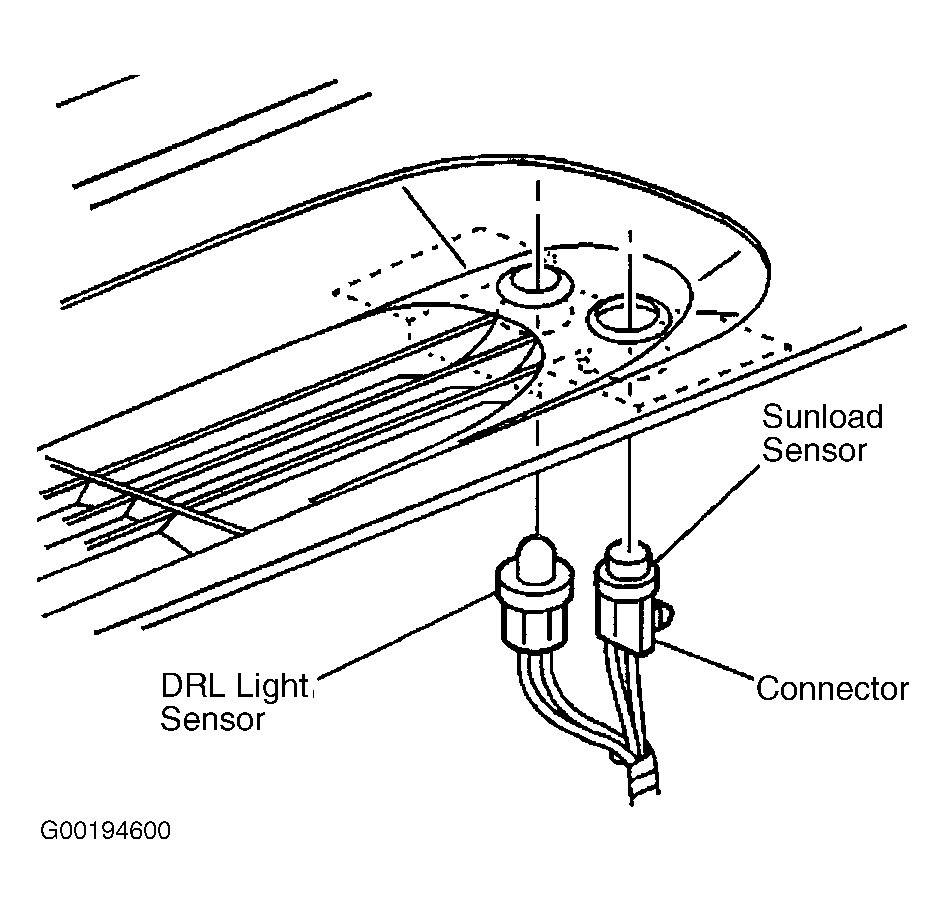

Remove the Instrument Panel (I/P) upper trim pad. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Disconnect the sunload sensor and the Daytime Running Lamp (DRL) light sensor from the defroster grille. See Fig 1. Disconnect the electrical connector from the sunload sensor. Remove the sunload sensor.
