Mode Actuator: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Connect the actuator pushrod to the mode door lever. Position the actuator on to the slides of the HVAC module assembly. Ensure that the lock tab locks the actuator. Connect the vacuum lines to the mode actuator. Install the I/P knee bolster bracket. Install the left side I/P insulator.

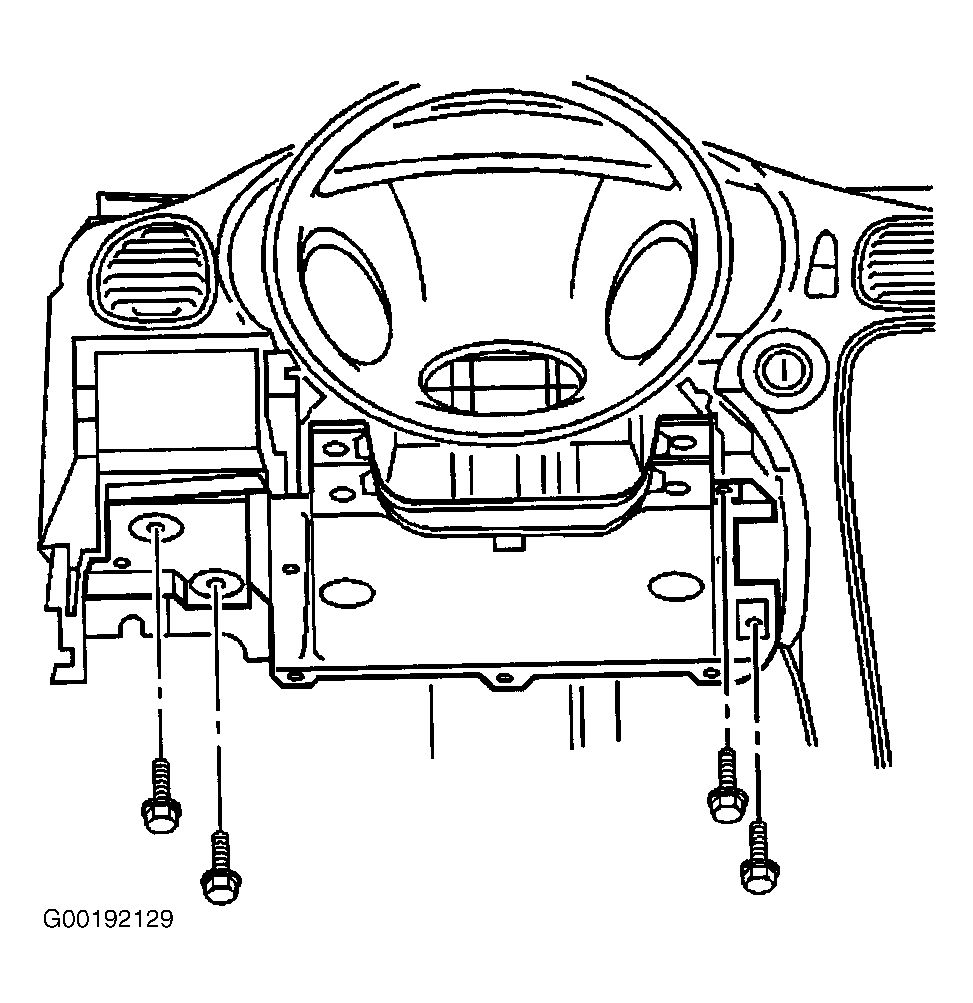

Fig 1: Removing & Installing Knee Bolster Bracket

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Lock Tab

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing Mode Actuator From HVAC Module

Courtesy of GENERAL MOTORS CORP.

Fig 4: Disconnecting Actuator Linkage

Courtesy of GENERAL MOTORS CORP.
