Inside Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left instrument panel (I/P) insulator. Remove the knee bolster bracket. Disconnect the aspirator duct and position aside. See Fig 1. Disconnect the electrical connector from the inside air temperature sensor. Remove the inside air temperature sensor.

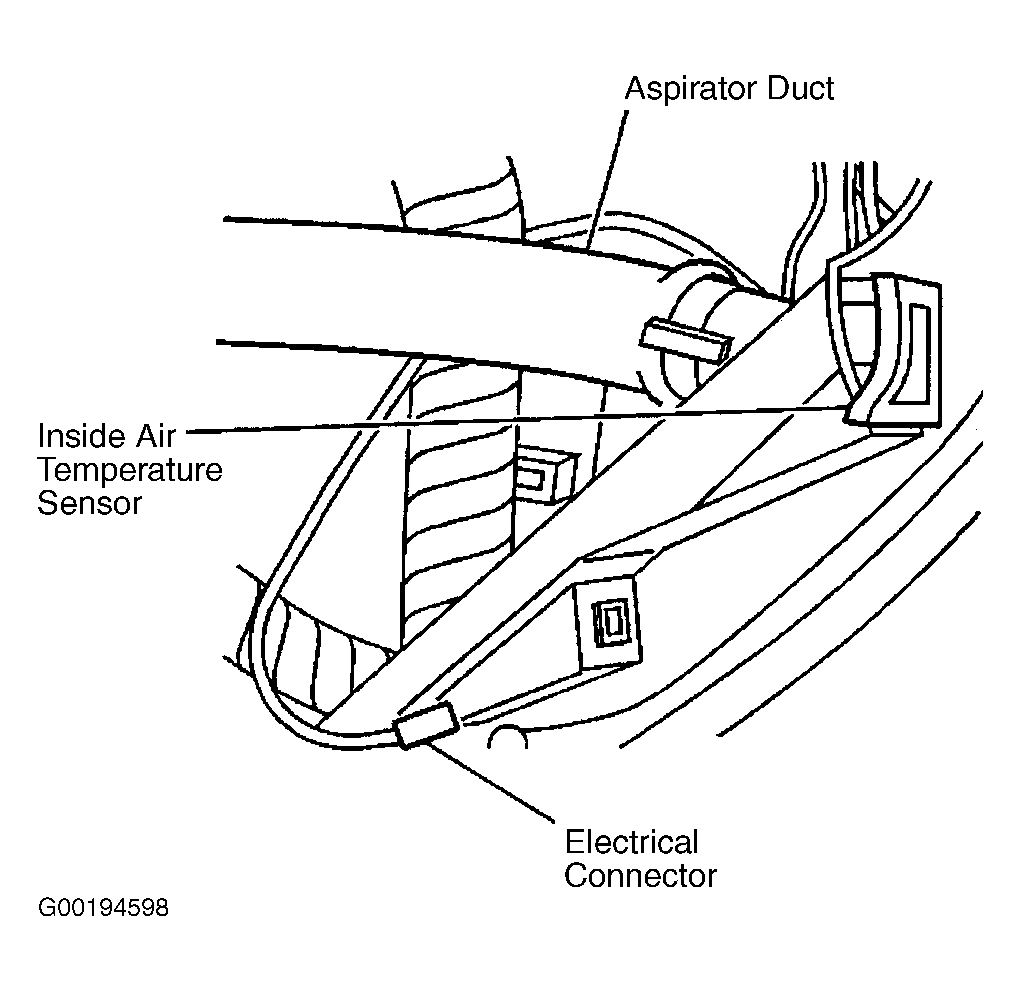

Fig 1: Removing & Installing Inside Air Temperature Sensor
G00194598Courtesy of GENERAL MOTORS CORP.
