UNDERHOOD Accessory Wiring Junction Block
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Underhood fuse blocks are located on passenger's side of engine compartment, behind battery.

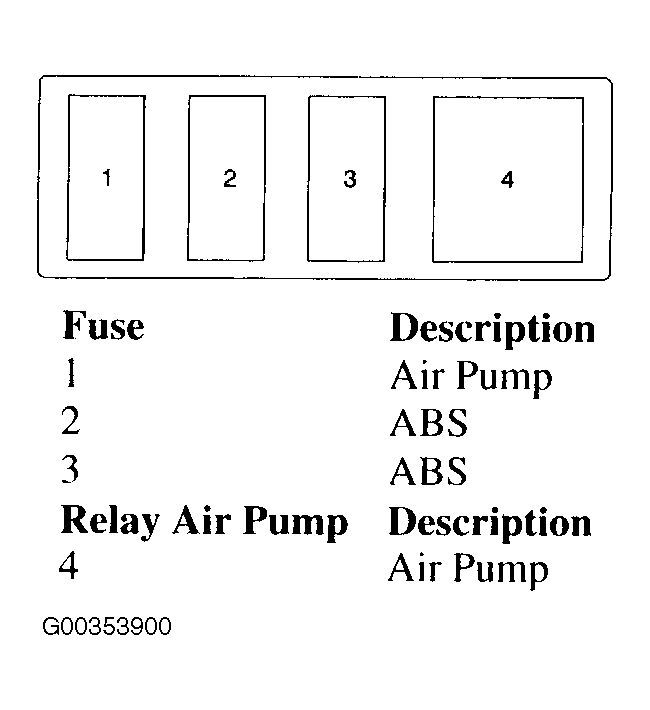

AUXILIARY UNDERHOOD FUSE BLOCK RELAY IDENTIFICATION
| FUSE AND RELAY DESCRIPTION | CIRCUITS |
|---|---|
| 1. | Air Pump |
| 2. | ABS |
| 3. | ABS |
| 4. Air Pump Relay | Air Pump |
MAIN UNDERHOOD FUSE BLOCK RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| 9 | Cooling Fan No. 2 Relay |
| 10 | Cooling Fan No. 3 Relay |
| 11 | Crank Relay |
| 12 | Cooling Fan No. 1 Relay |
| 13 | Ignition Main Relay |
| 14 | Blank |
| 15 | A/C Compressor Relay |
| 16 | Horn Relay |
| 17 | Fog Lamps Relay |
| 18 | Blank |
| 19 | Fuel Pump Relay |
