Removal & Installation

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent from the washer solvent container.
  2. Remove the right front fender liner.
  3. Disconnect the washer solvent container level sensor electrical connector.
  4. Using a small flat-bladed tool, remove the washer solvent level sensor from the washer solvent container. See Fig 1 .
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.
  6. To install, reverse removal procedure.

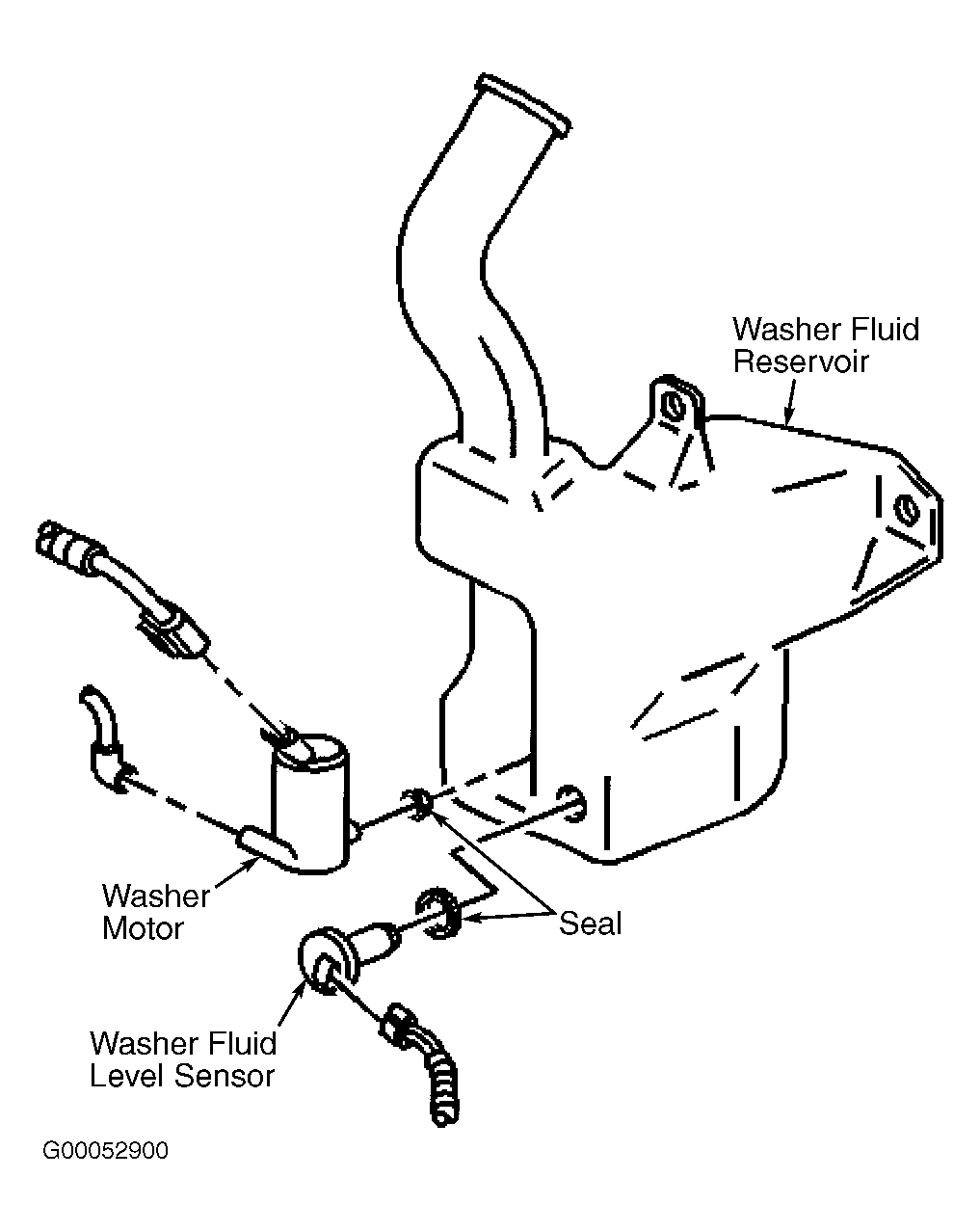

Fig 1: Removing Washer Motor & Level Sensor
G00052900Courtesy of GENERAL MOTORS CORP.
