Air Cleaner Intake Duct: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the Mass Airflow (MAF) sensor electrical connector (3). See Fig 1 .
Loosen the air cleaner intake/MAF assembly clamps from the throttle body side (2) and air cleaner cover side (4). See Fig 2 .
Remove the air cleaner intake/MAF assembly from the vehicle.
Separate the air cleaner intake duct from the MAF sensor.

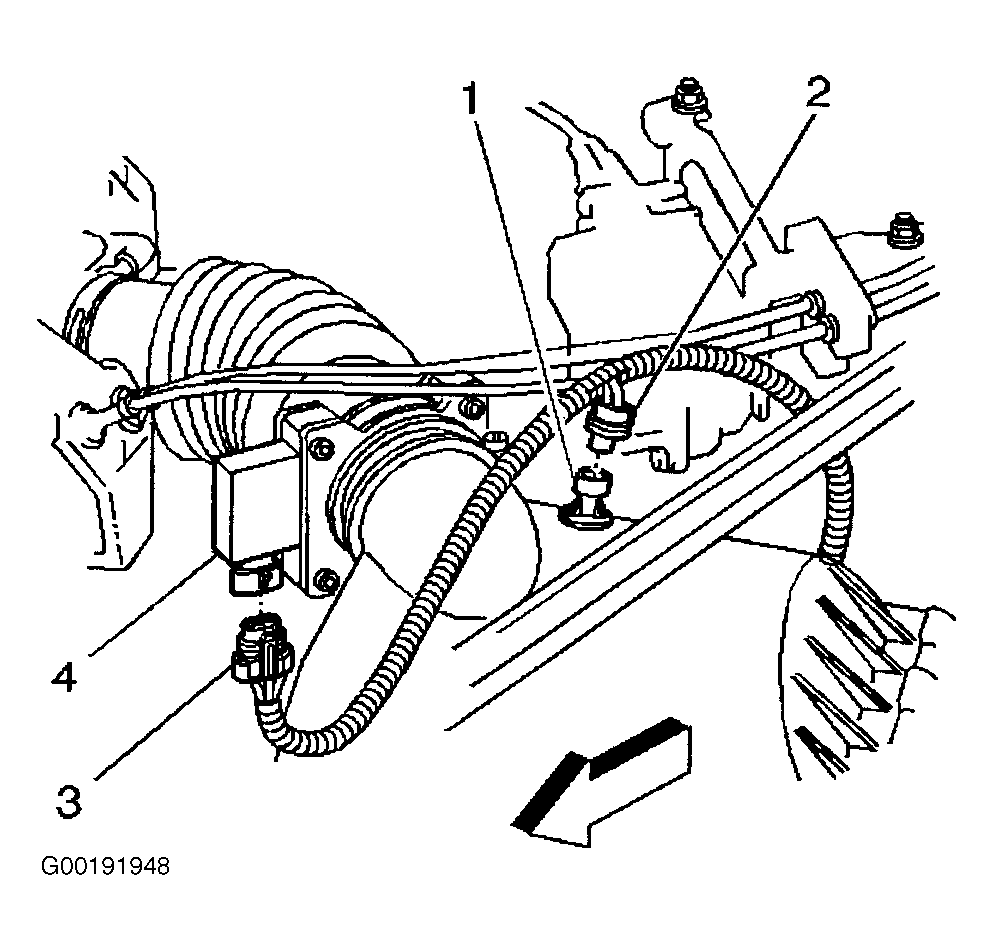

Fig 1: Disconnect/Connect Mass Airflow Sensor
Courtesy of GENERAL MOTORS CORP.

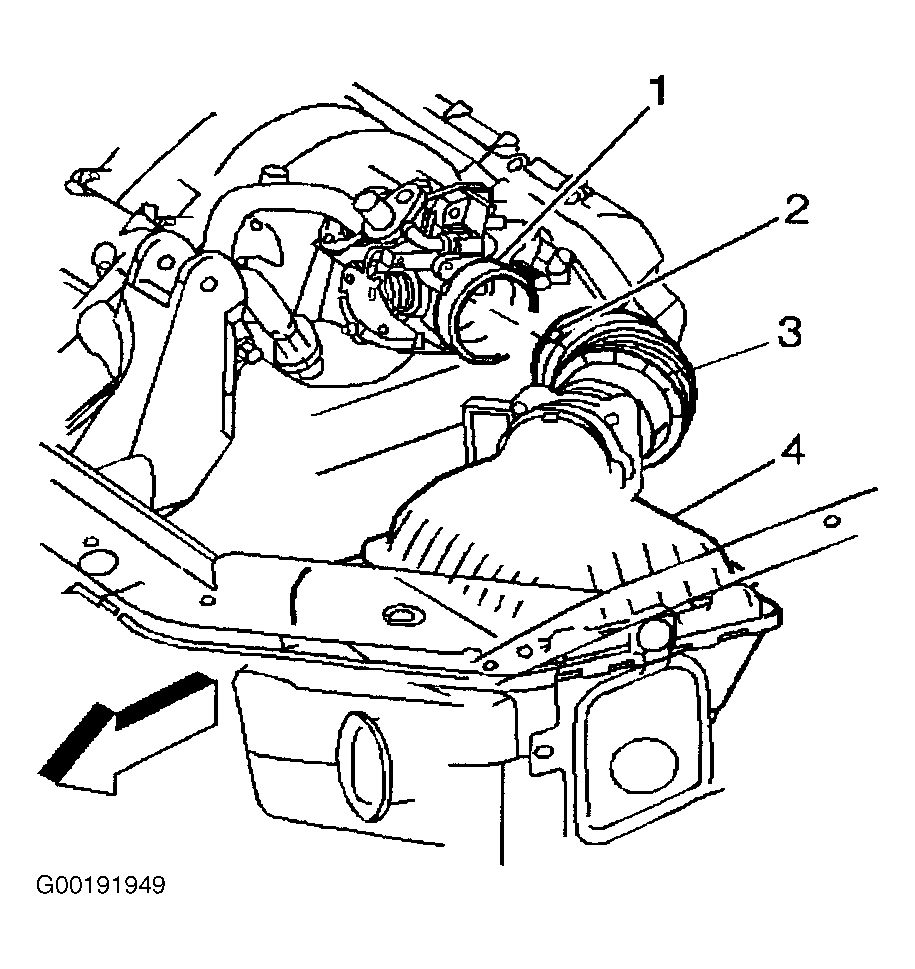

Fig 2: Removal/Installation Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.
