Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

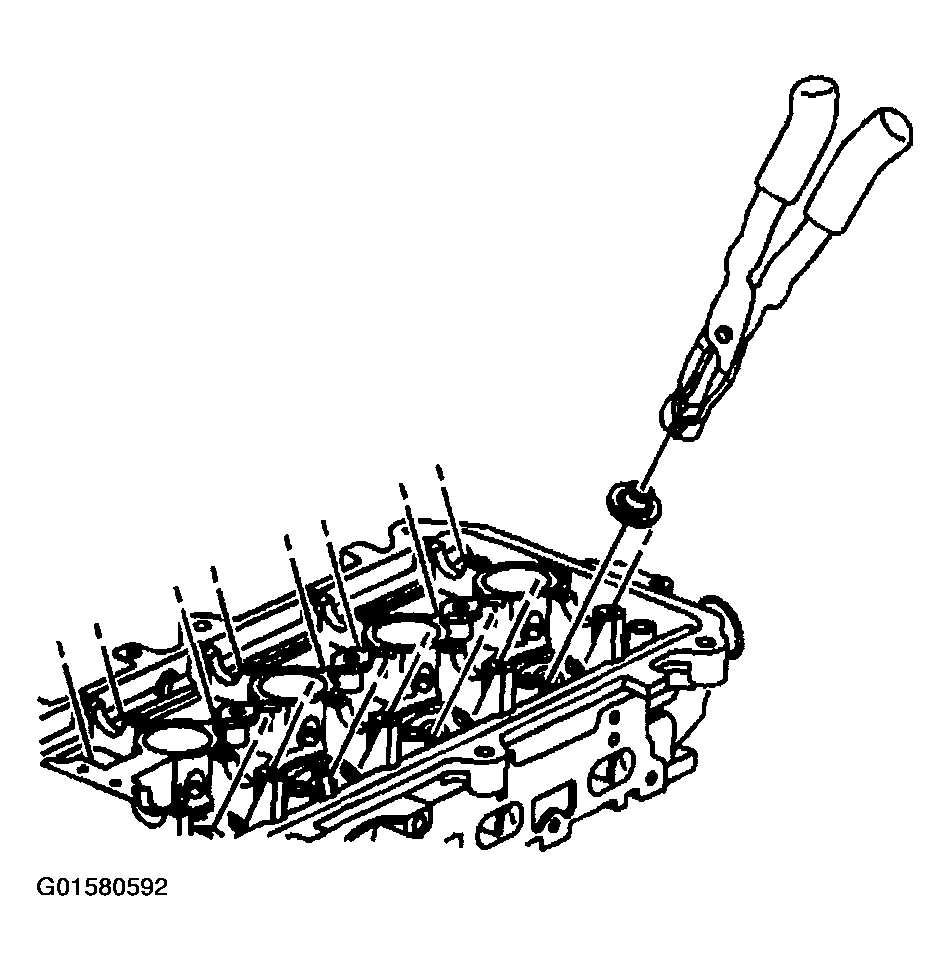

  1. Using the J 36017  install the valve seal. See Figure.
  2. Install the valve spring.
  3. Compress the valve spring.
  4. Install the valve spring keepers.

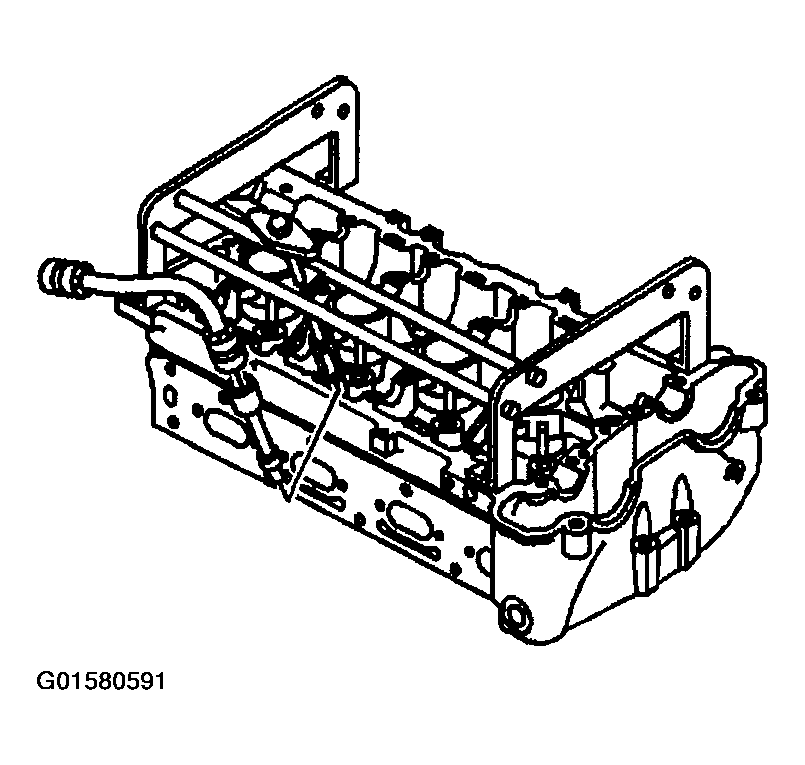

  5. Remove the air hose adaptor into the spark plug hole. See Figure.

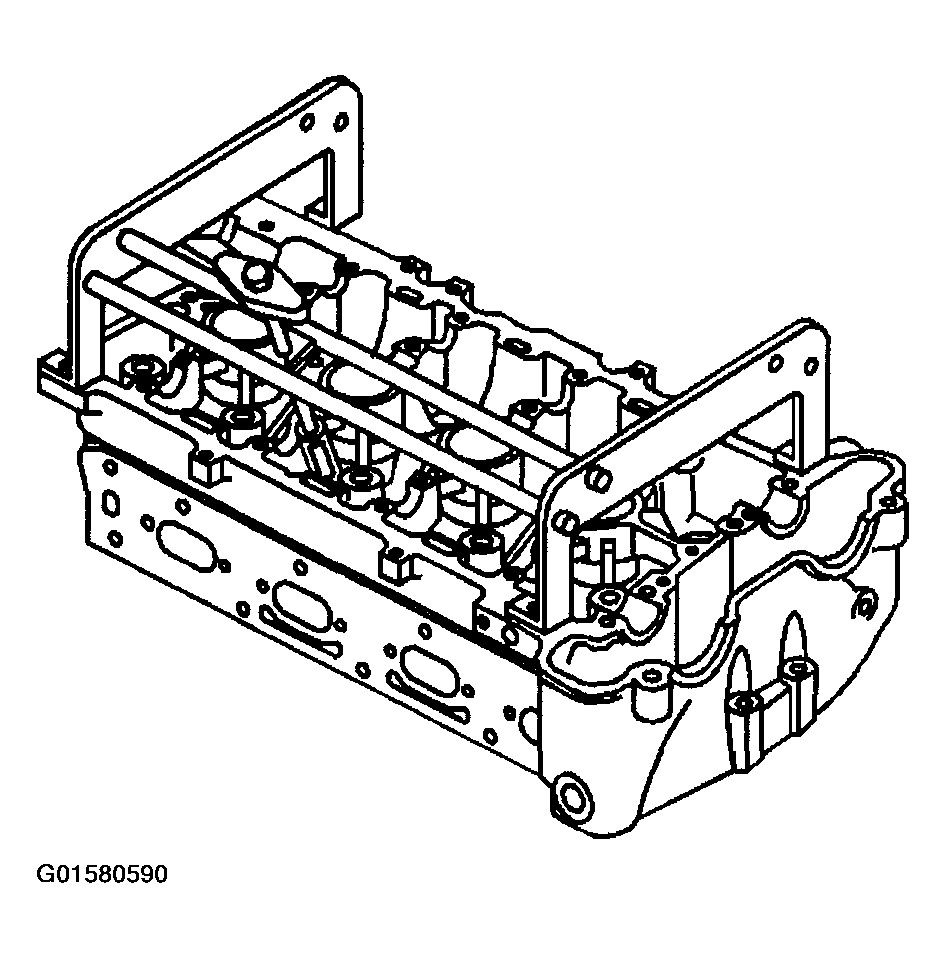

  6. Remove the J 43649  from the cylinder head. See Figure.
  7. Install the spark plugs. Refer to SPARK PLUGS .
  8. Install the camshaft roller followers.
  9. Install the camshaft. Refer to Intake Camshaft and Lifter Replacement  or Exhaust Camshaft and Lifter Replacement  .

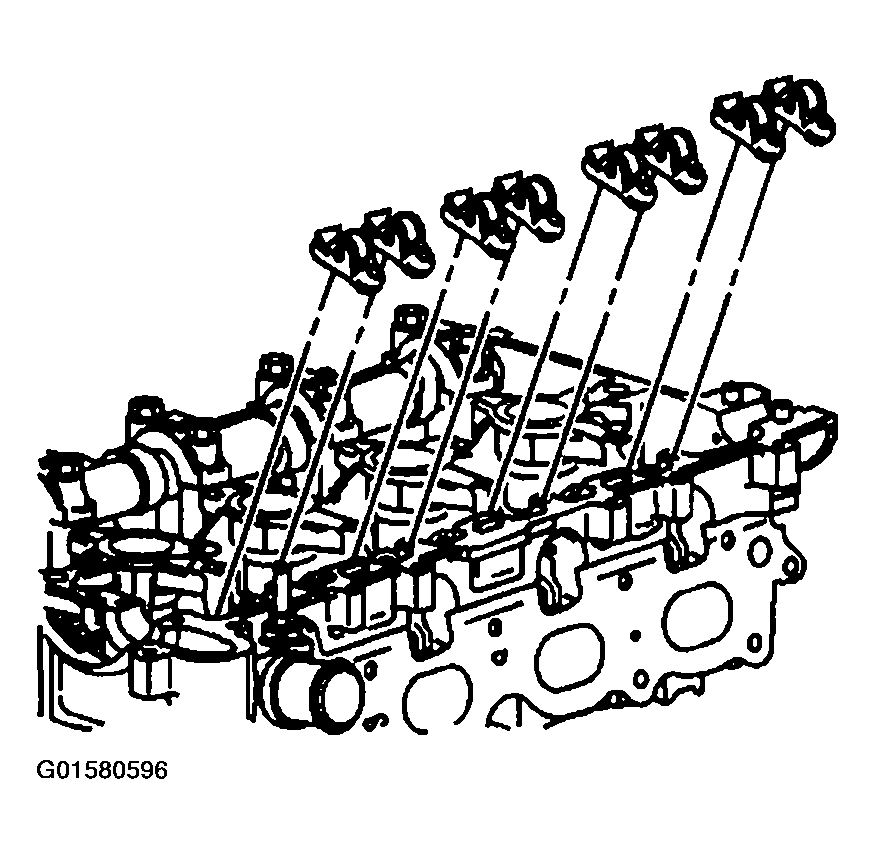

    Fig 1: Installing Camshaft Roller Followers
    G01580596Courtesy of GENERAL MOTORS CORP.
