Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Drain the engine oil.

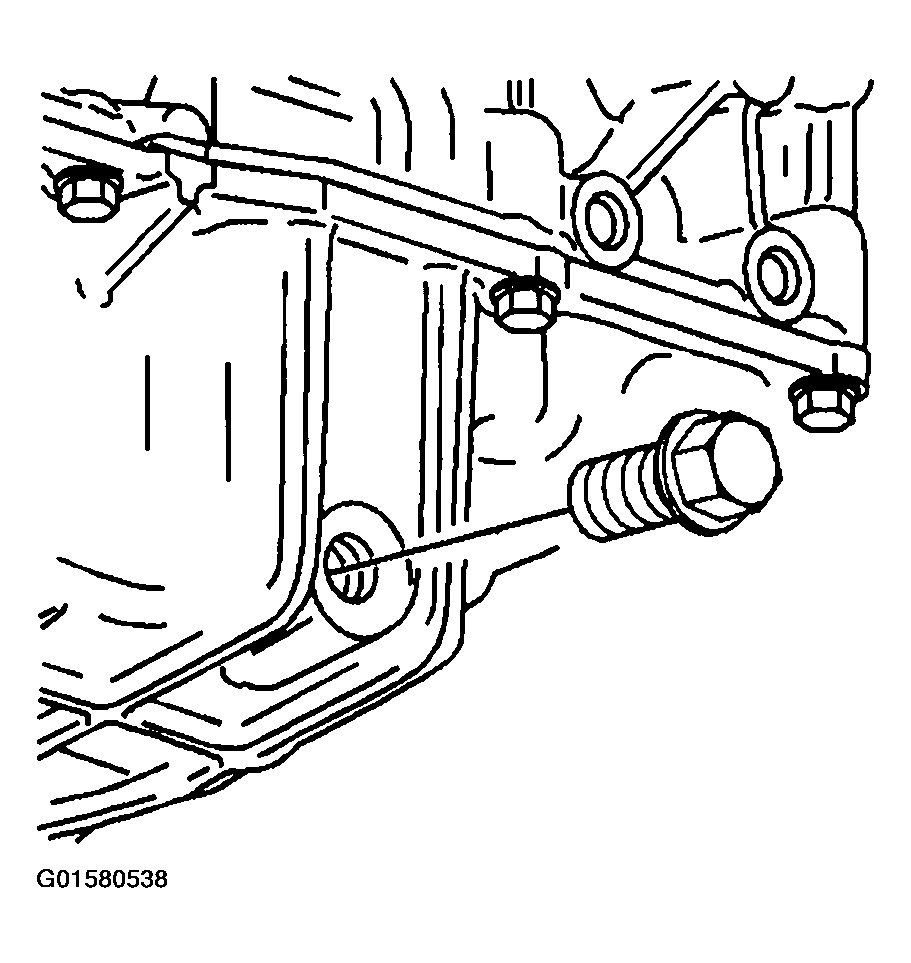

    Fig 1: Identifying Engine Oil Drain Plug
    G01580538Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement .
  4. Remove the lower AC compressor bolt.
  5. Loosen the upper AC compressor bolts.
  6. Remove the oil pan bolts.
    Fig 2: Identifying Oil Pan Bolt Removal Sequence
    G01580539Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pan

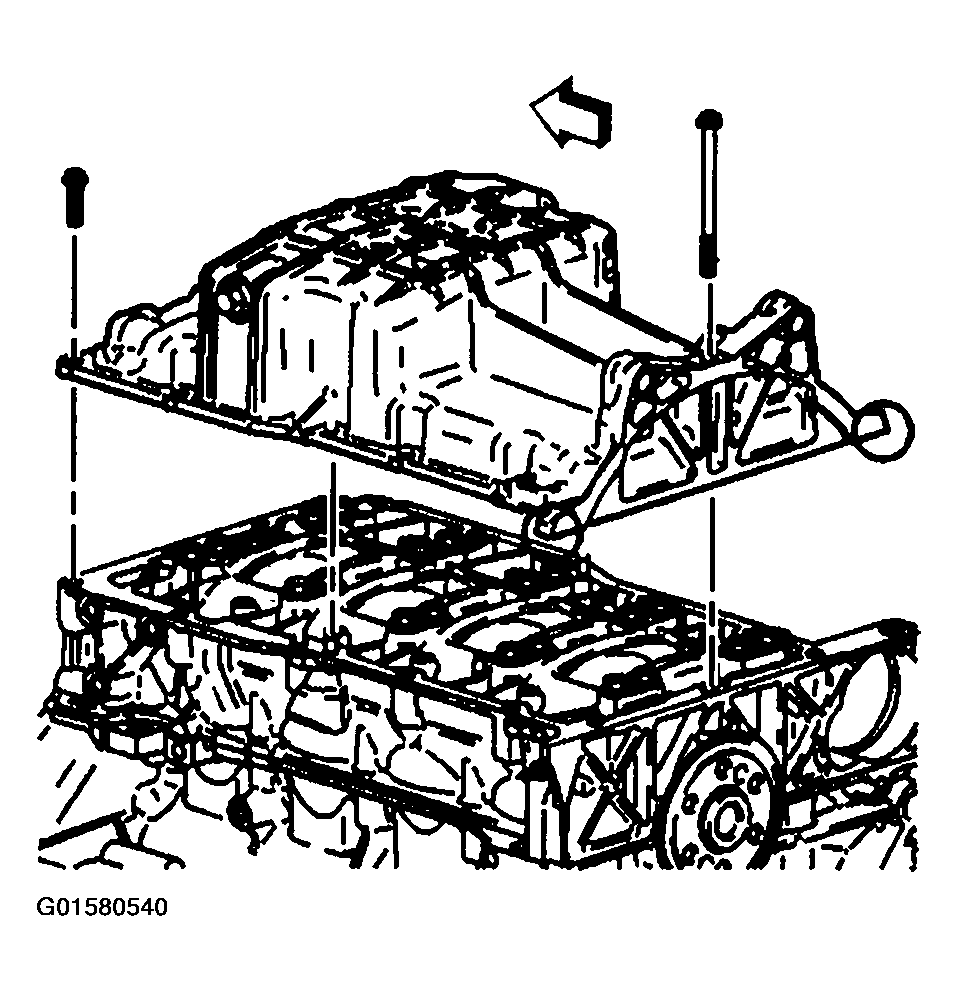

    Fig 3: Removing Oil Pan
    G01580540Courtesy of GENERAL MOTORS CORP.
