Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner outlet resonator.
  2. Unclip the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bolt (1).
  4. Remove the oil level indicator tube (3).
  5. Remove the oil level indicator tube seal (2).

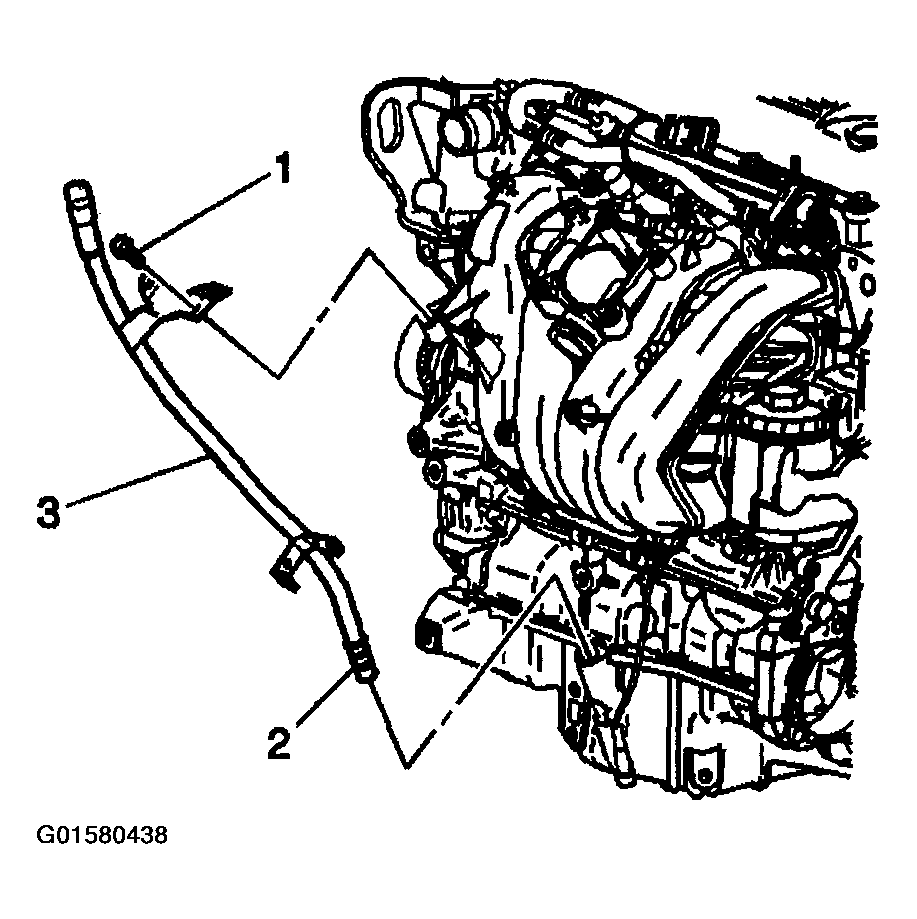

    Fig 1: Removing/Installing Oil Level Indicator Tube
    G01580438Courtesy of GENERAL MOTORS CORP.
