Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the upper timing chain guide.

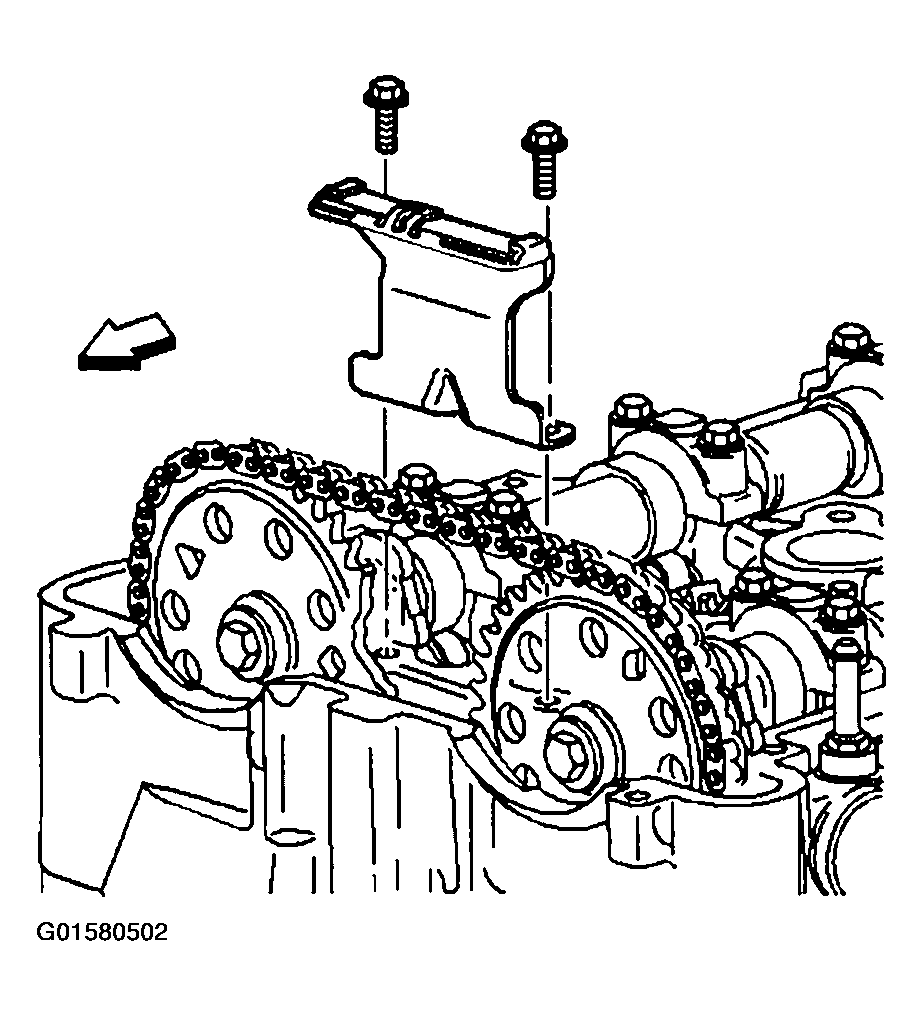

    Fig 1: Removing Upper Timing Chain Guide
    G01580502Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43655.

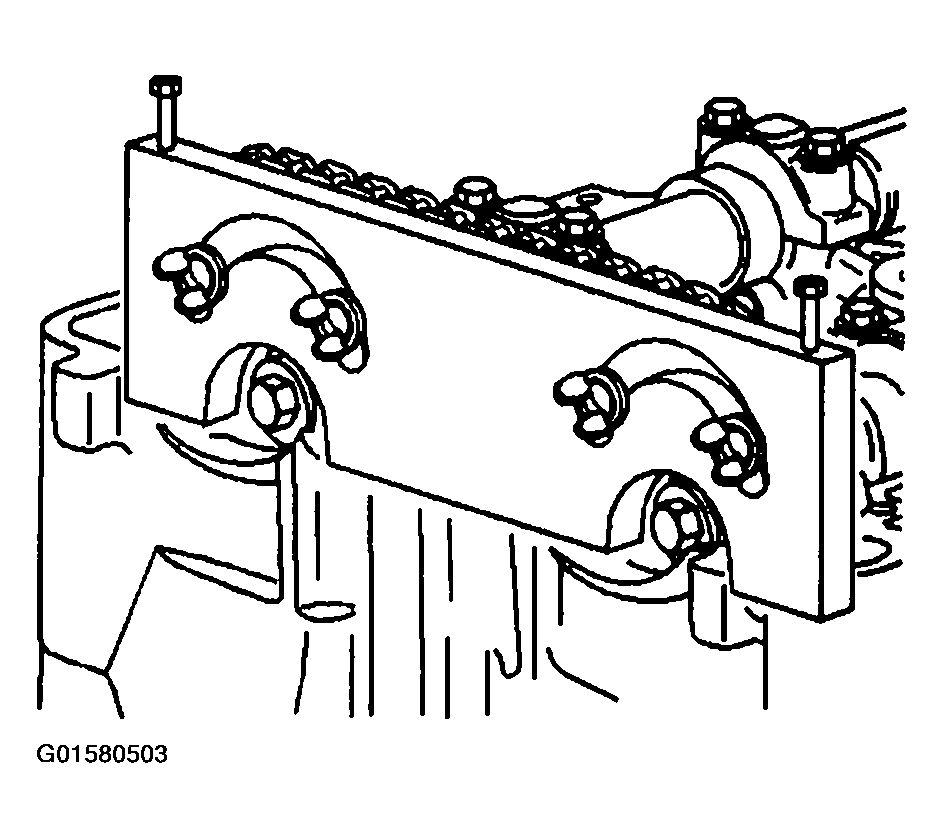

    Fig 2: Installing Camshaft Sprocket Holding Tool
    G01580503Courtesy of GENERAL MOTORS CORP.
  4. Remove both the intake and exhaust camshaft sprocket bolts and discard.

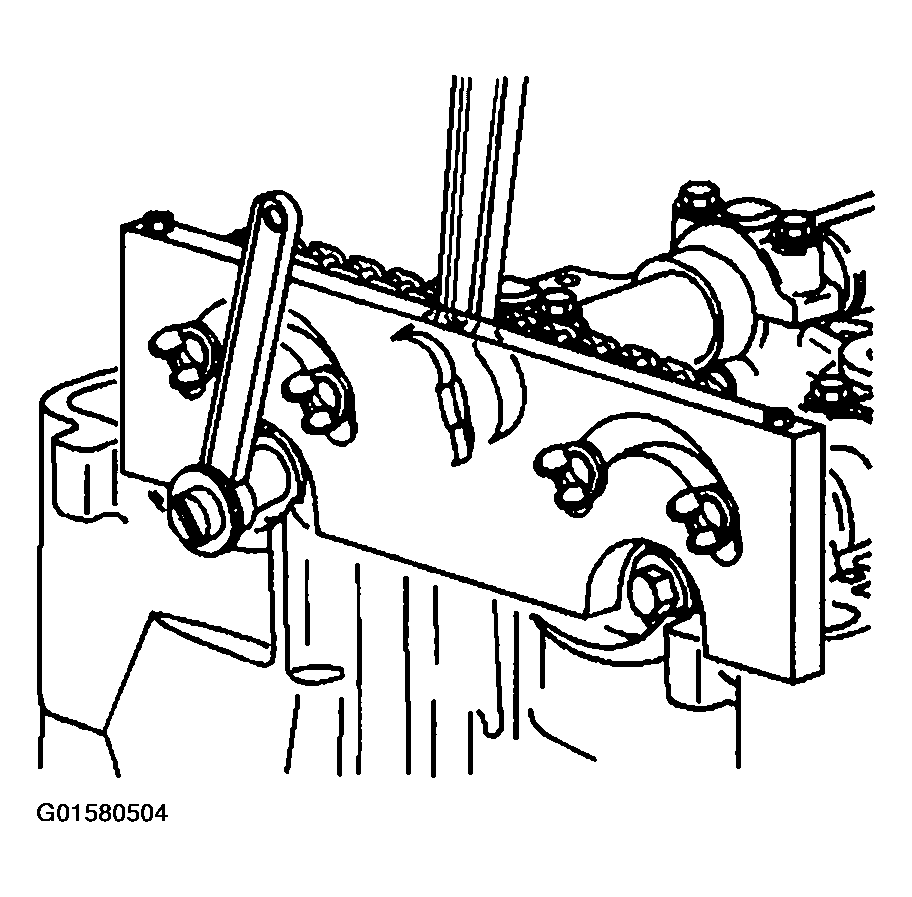

    Fig 3: Removing Camshaft Sprocket Bolts
    G01580504Courtesy of GENERAL MOTORS CORP.
  5. Slide the camshaft sprockets forward.
  6. Remove the power steering pump bolts and set pump aside.

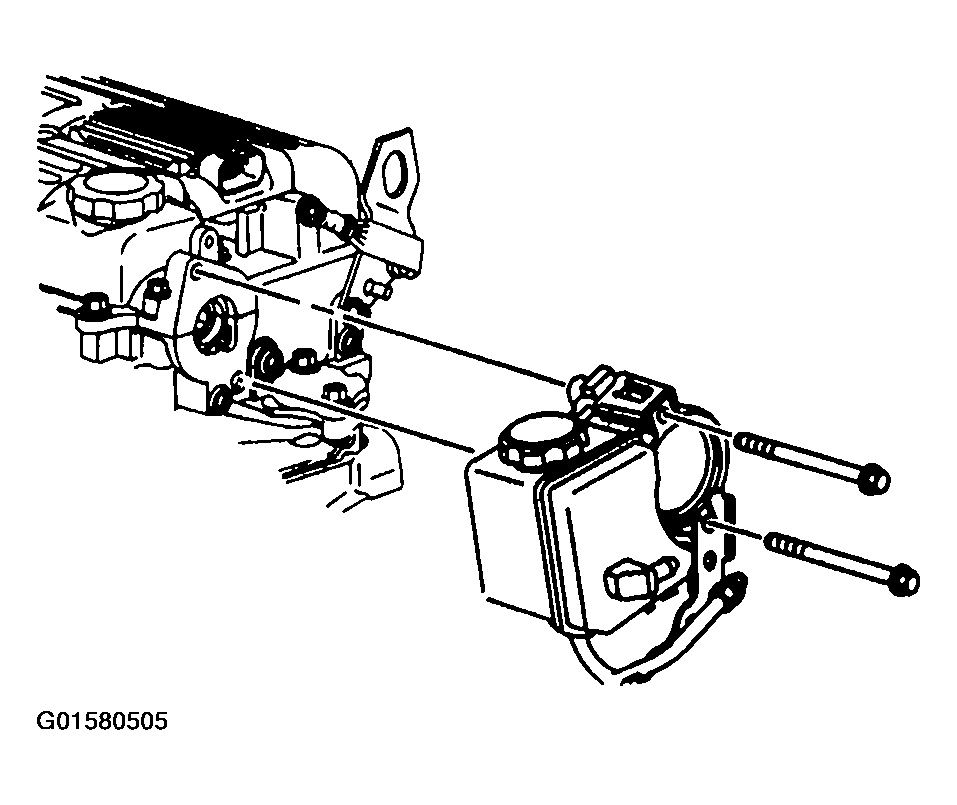

    Fig 4: Removing Power Steering Pump
    G01580505Courtesy of GENERAL MOTORS CORP.
  7. Mark bearing caps to ensure they are installed in the original position.

    Important:  Remove each bolt on each cap one turn at a time until there is no spring tension on the camshaft.

  8. Remove the bearing caps.
  9. Remove the intake camshaft.

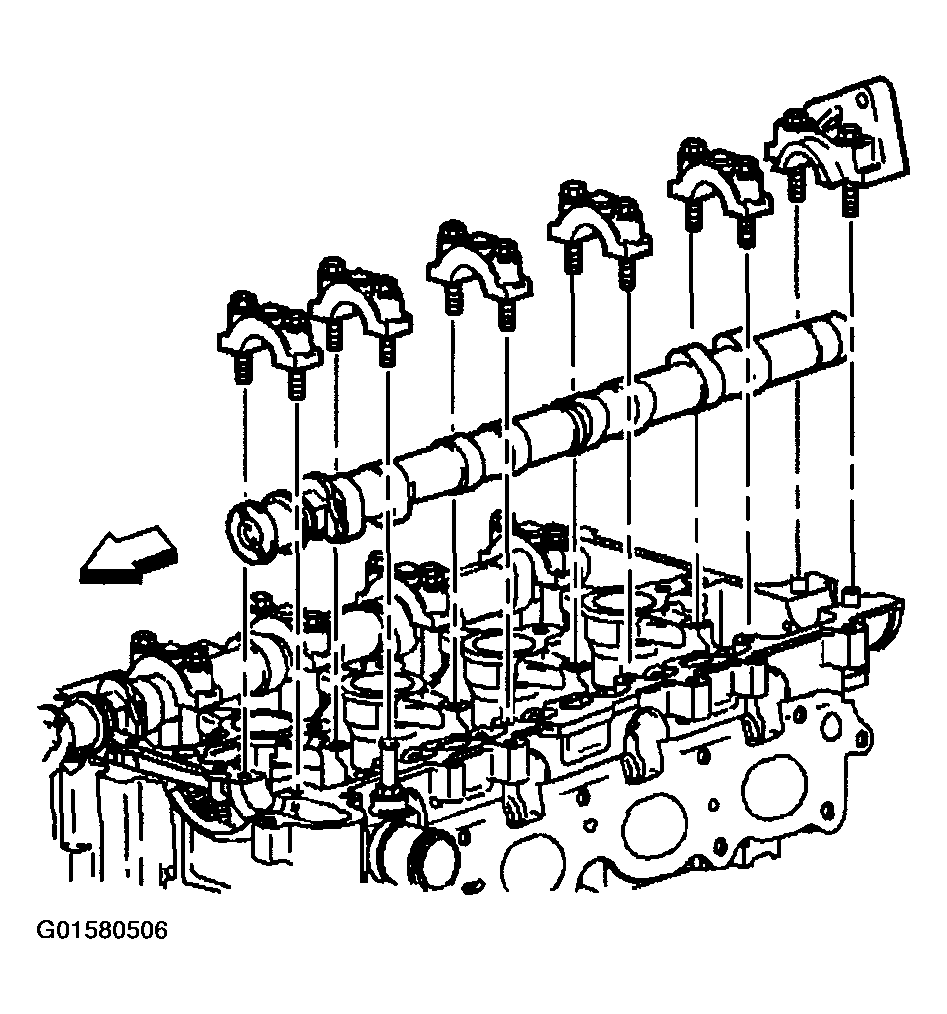

    Fig 5: Removing Intake Camshaft
    G01580506Courtesy of GENERAL MOTORS CORP.
  10. Remove the camshaft roller followers.

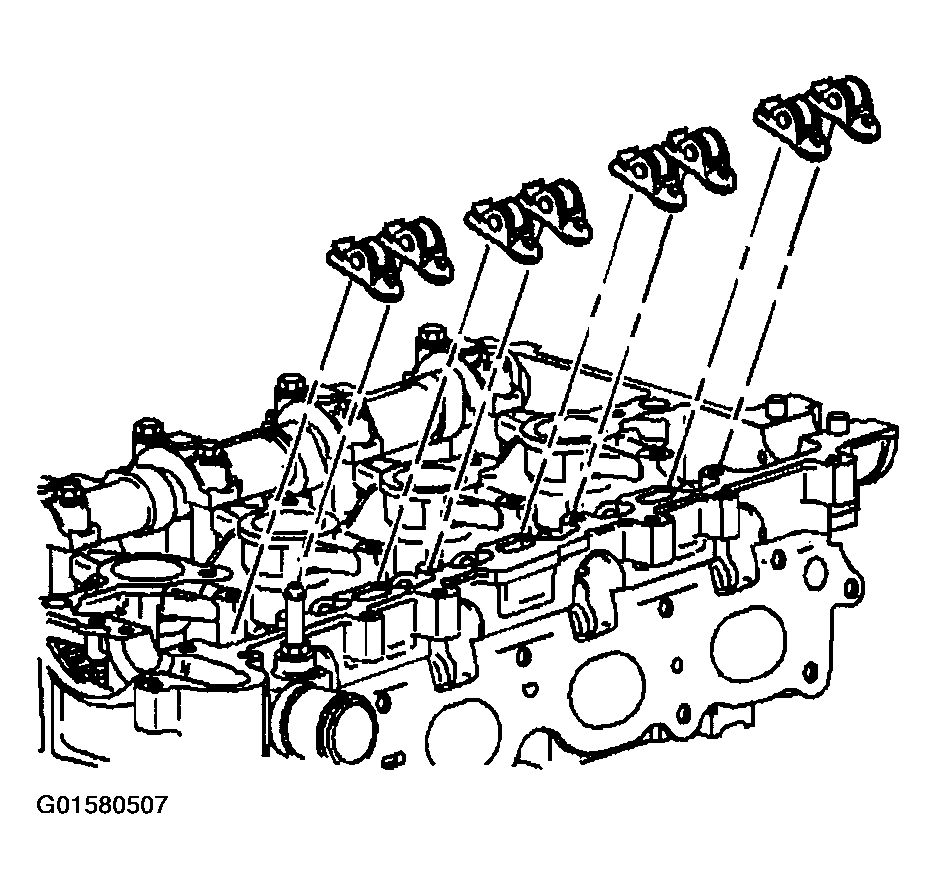

    Fig 6: Removing Camshaft Roller Followers
    G01580507Courtesy of GENERAL MOTORS CORP.
  11. Remove the hydraulic element lash adjusters.

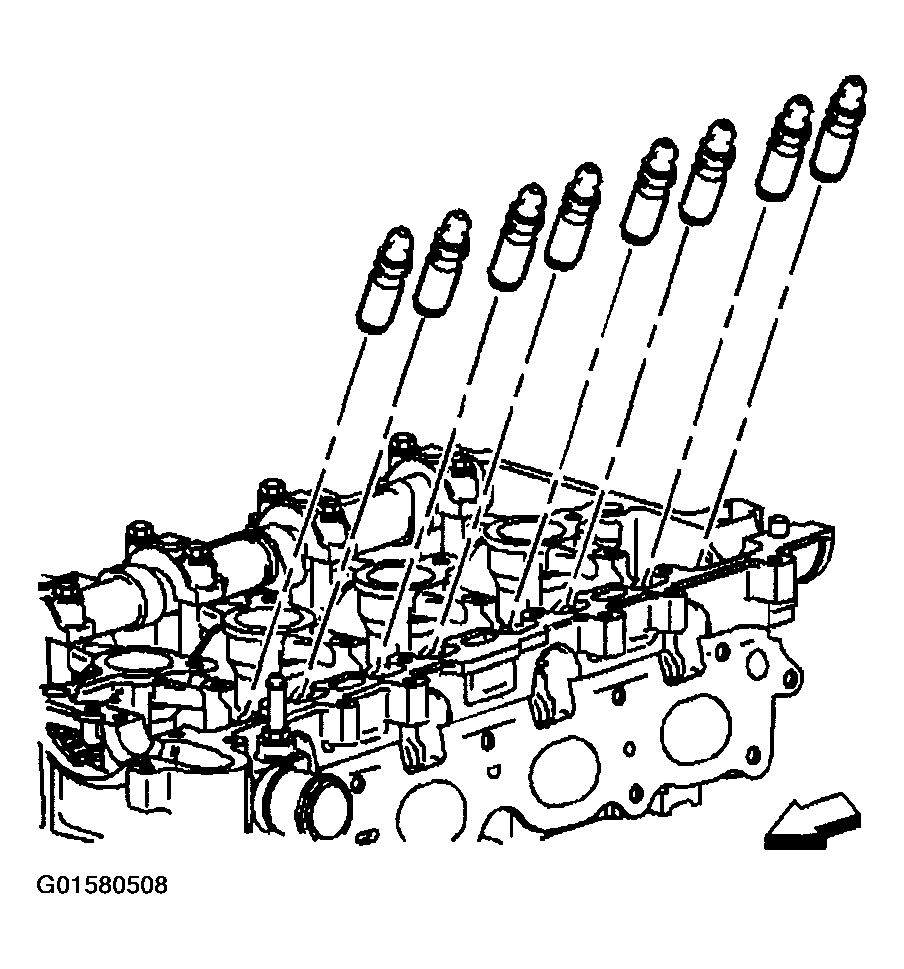

    Fig 7: Removing Hydraulic Element Lash Adjusters
    G01580508Courtesy of GENERAL MOTORS CORP.
