Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the upper timing chain guide.

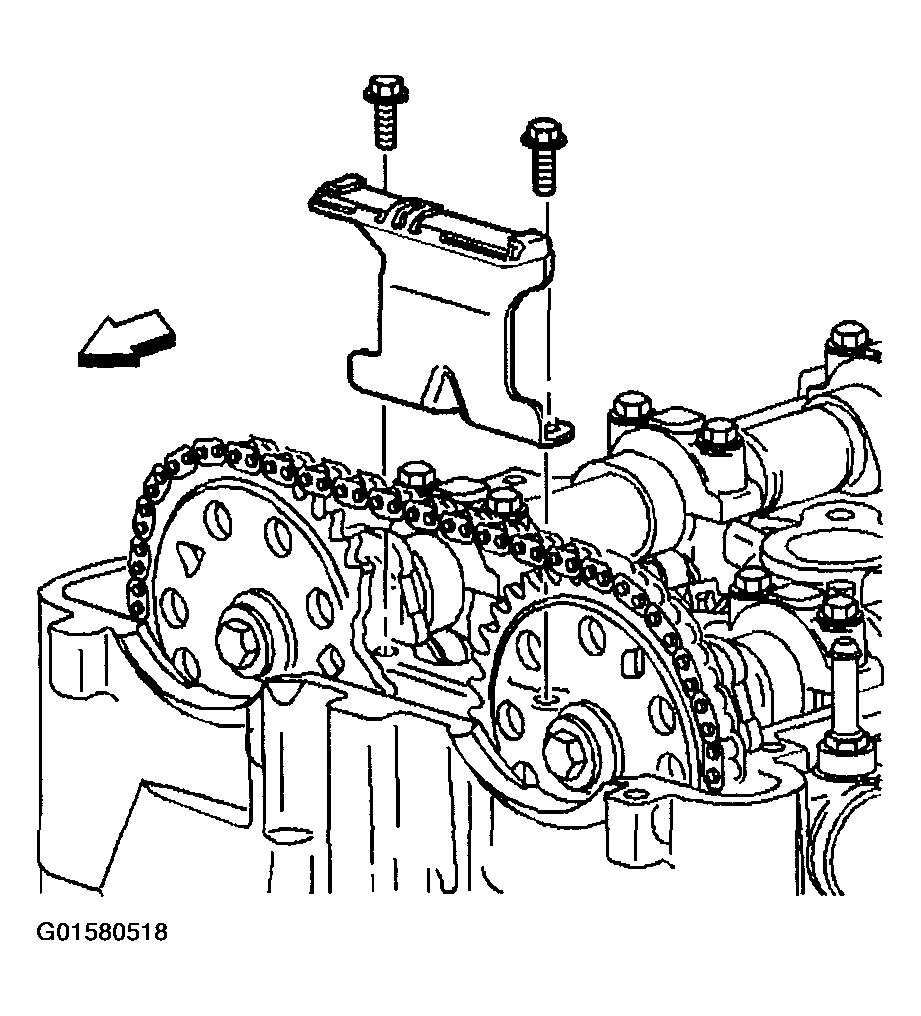

    Fig 1: Removing Upper Timing Chain Guide
    G01580518Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43655.

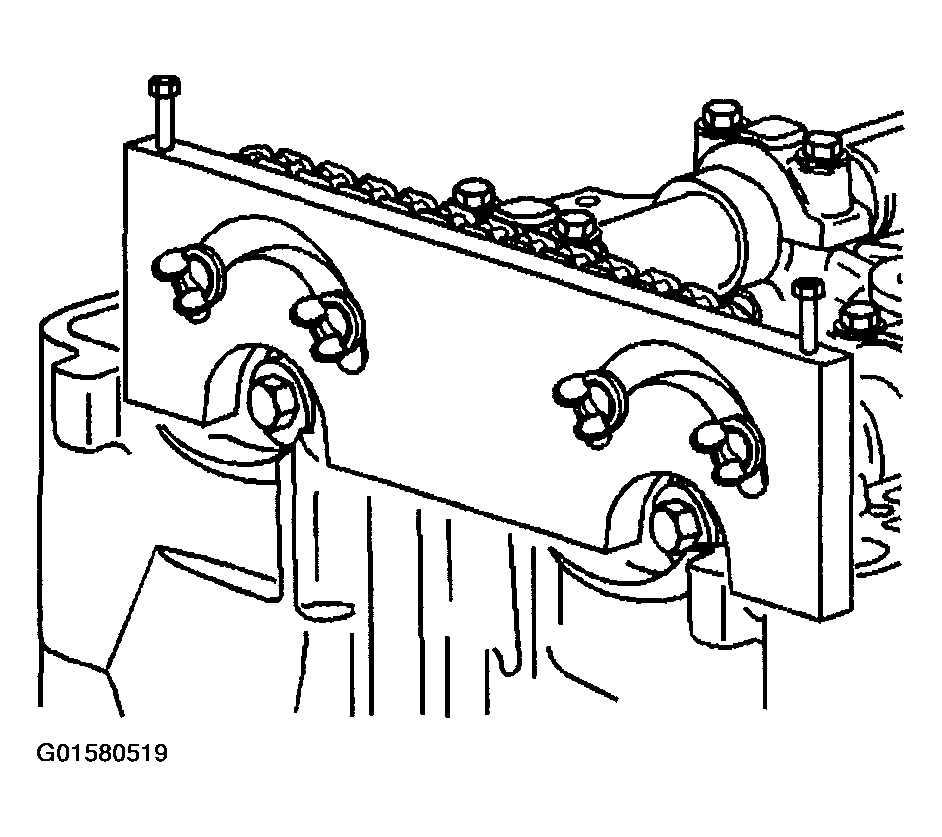

    Fig 2: Installing Camshaft Sprocket Holding Tool
    G01580519Courtesy of GENERAL MOTORS CORP.
  4. Remove both the intake and the exhaust camshaft sprocket bolts and discard.

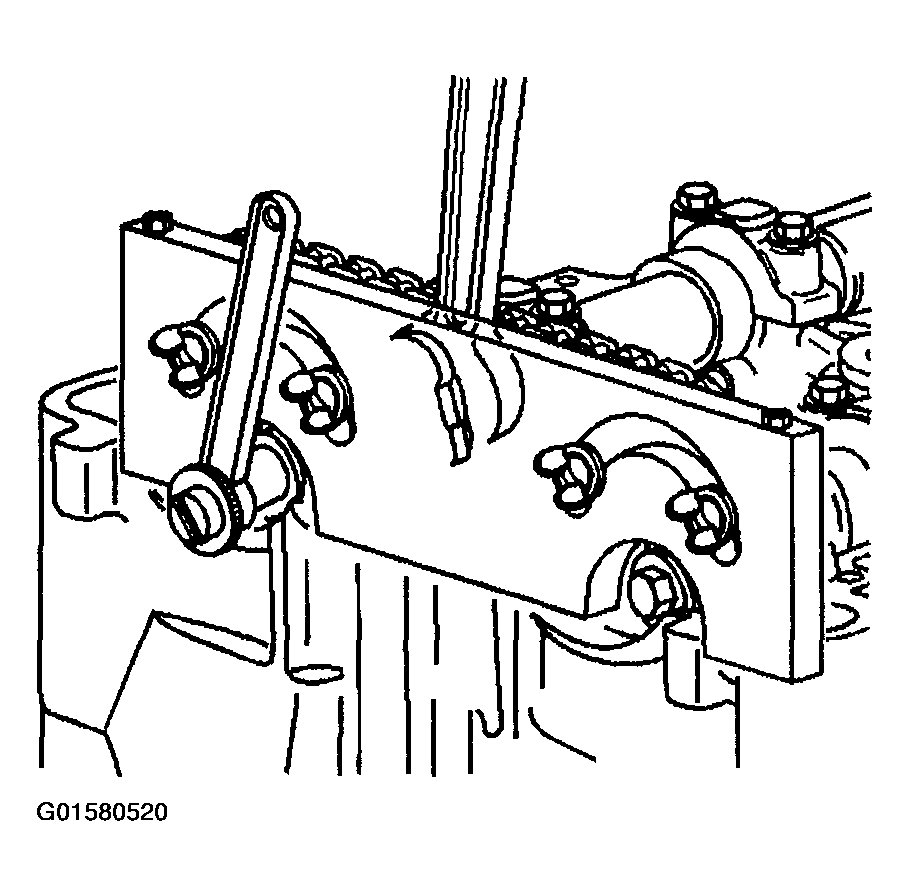

    5. Fig 3: Removing Camshaft Sprocket Bolts
    G01580520Courtesy of GENERAL MOTORS CORP.
  5. Slide the camshaft sprockets forward.
  6. Mark the bearing caps to ensure that the bearing caps are installed in the original position.

    Important:  Remove each bolt on each cap one turn at a time until there is no spring tension on the camshaft.

  7. Remove the bearing caps.
  8. Remove the exhaust camshaft.

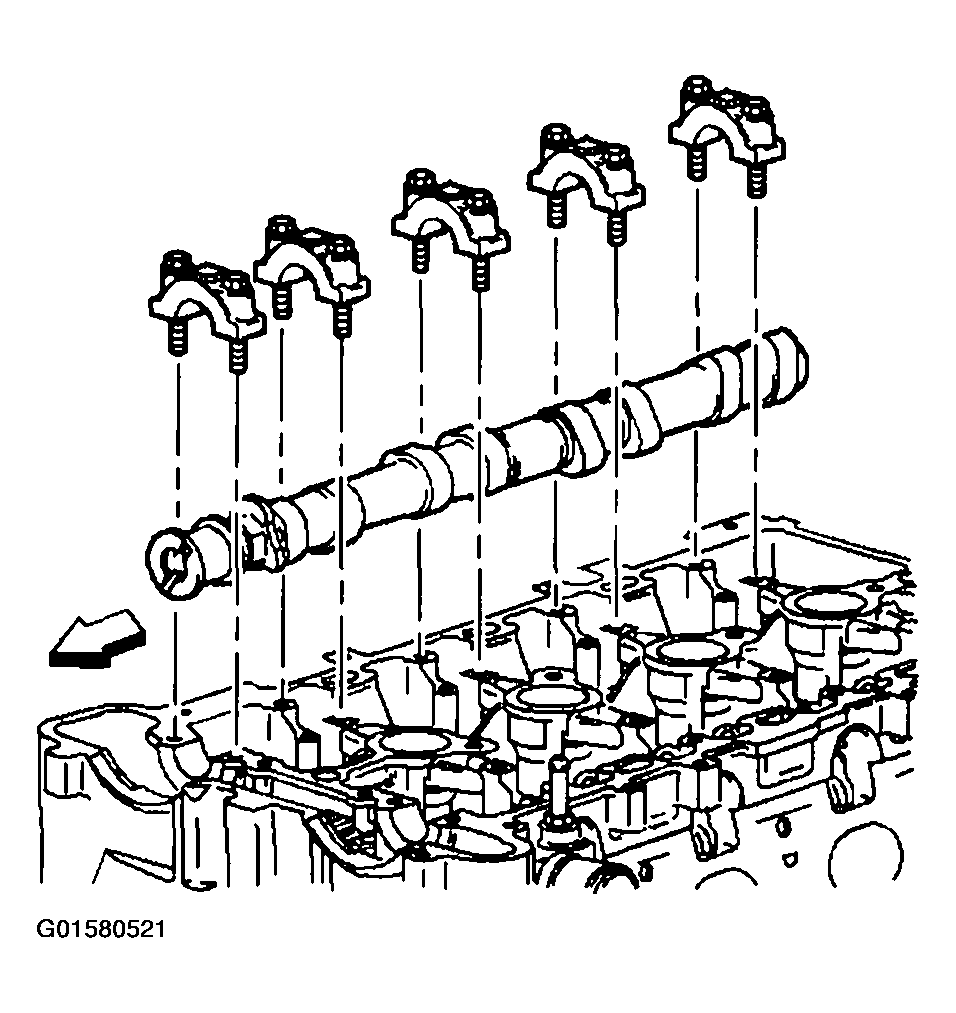

    Fig 4: Removing Exhaust Camshaft
    G01580521Courtesy of GENERAL MOTORS CORP.
  9. Remove the camshaft roller followers.

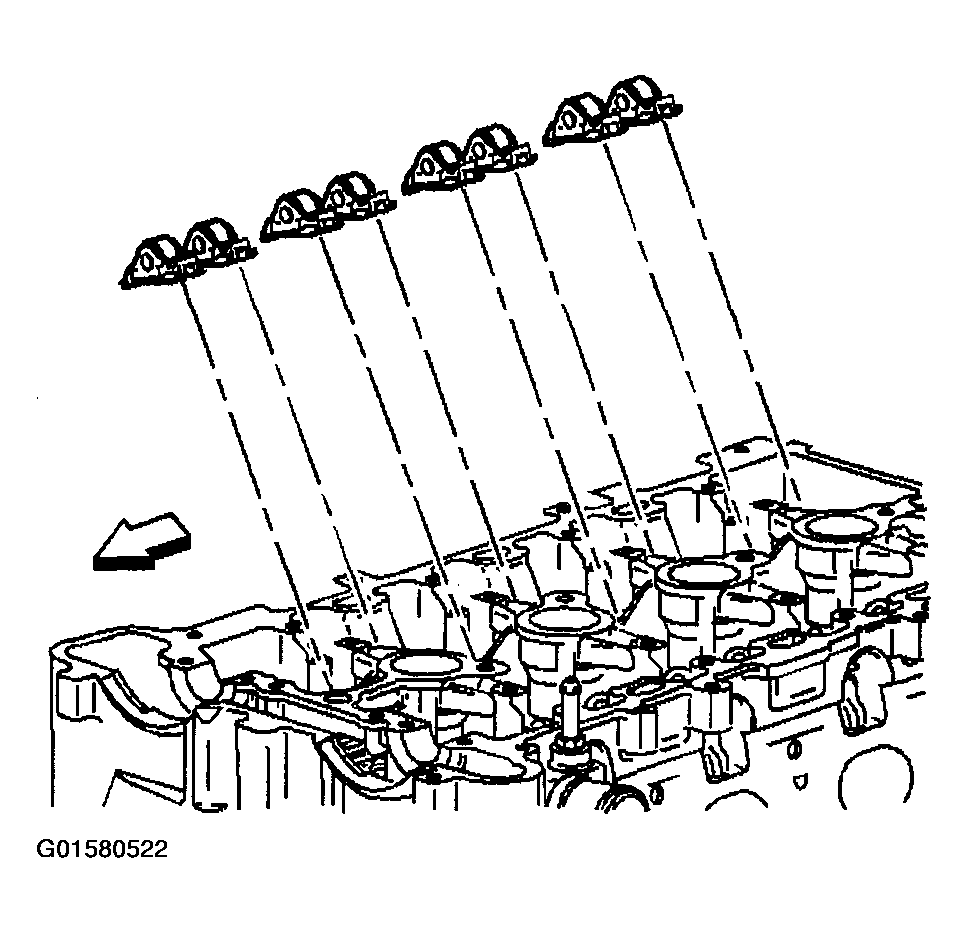

    Fig 5: Removing Camshaft Roller Followers
    G01580522Courtesy of GENERAL MOTORS CORP.
  10. Remove the hydraulic element lash adjusters.

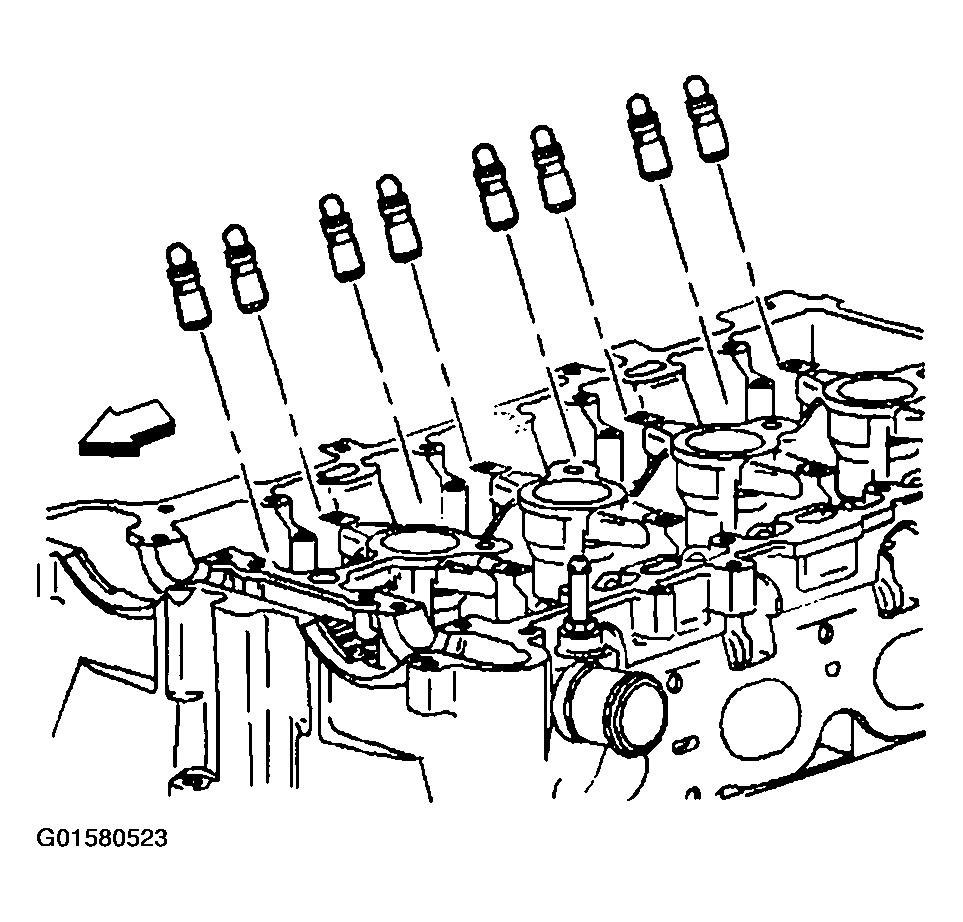

    Fig 6: Removing Hydraulic Element Lash Adjusters
    G01580523Courtesy of GENERAL MOTORS CORP.
