Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the engine mount strut. Refer to Engine Mount Strut Replacement .
  3. Remove the engine mount strut bracket bolts.
  4. Remove the engine mount strut bracket.

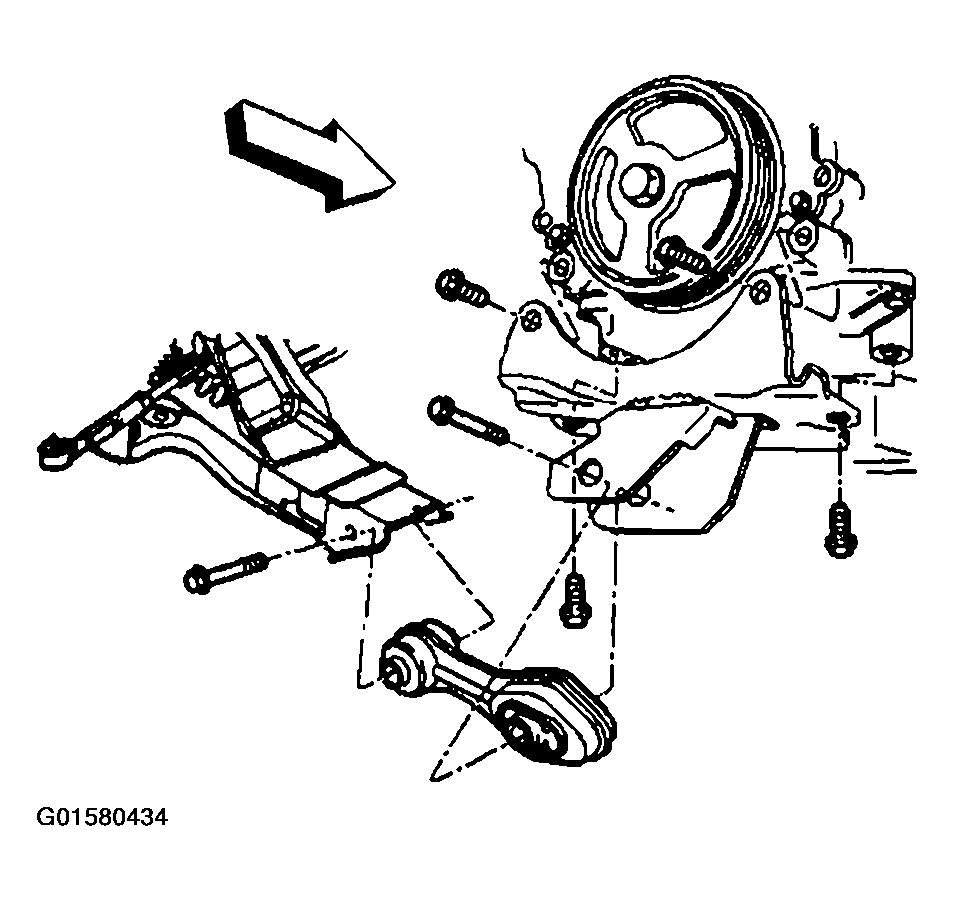

    Fig 1: Removing/Installing Engine Mount Strut Bracket
    G01580434Courtesy of GENERAL MOTORS CORP.
