Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount to the vehicle.
  2. Align the engine mount (2) to the mount bracket using a dowel (1).

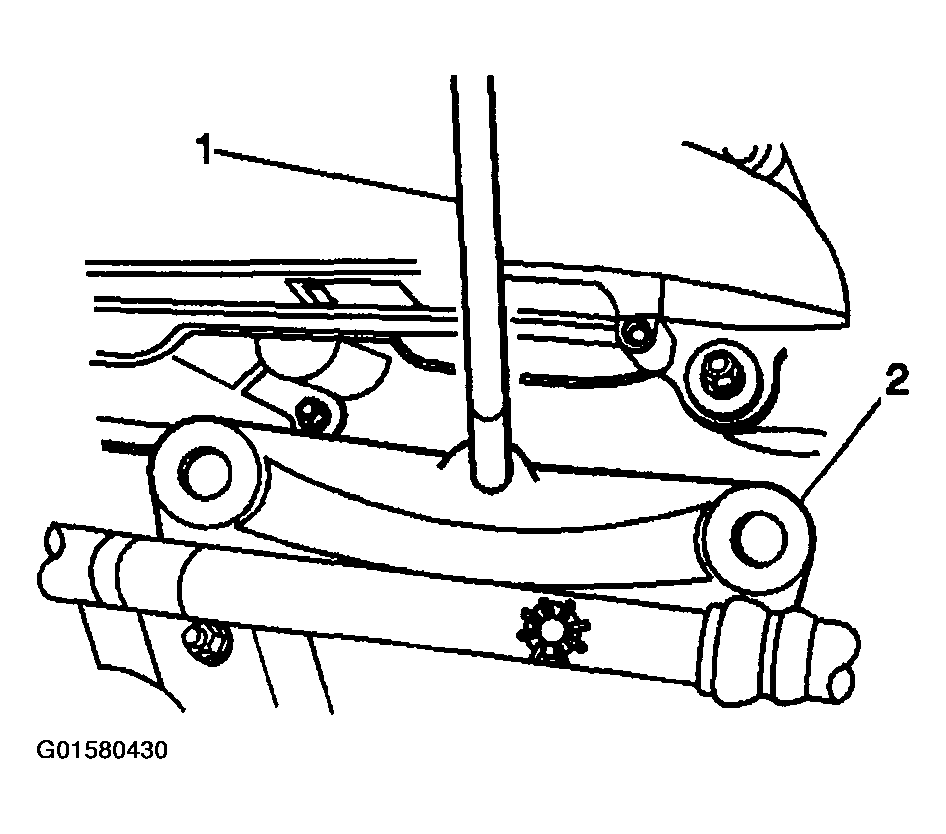

    Fig 1: Aligning Engine Mount
    G01580430Courtesy of GENERAL MOTORS CORP.
  3. Hand tighten the engine mount to body nuts (1). See Figure.
  4. Install the engine mount (2) to bracket bolts (1). See Figure.

    Tighten

    Tighten the engine mount to body nuts and the engine mount to bracket bolts to 55 N.m (41 lb ft).

    Tighten

    Tighten the engine mount bolts to 110 N.m (81 lb ft).

  5. Install the A/C low pressure line retaining bracket (1) nut. See Figure.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  6. Install the cruise control module mounting nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  7. Remove the floor jack.
