Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower bolt into the bracket.

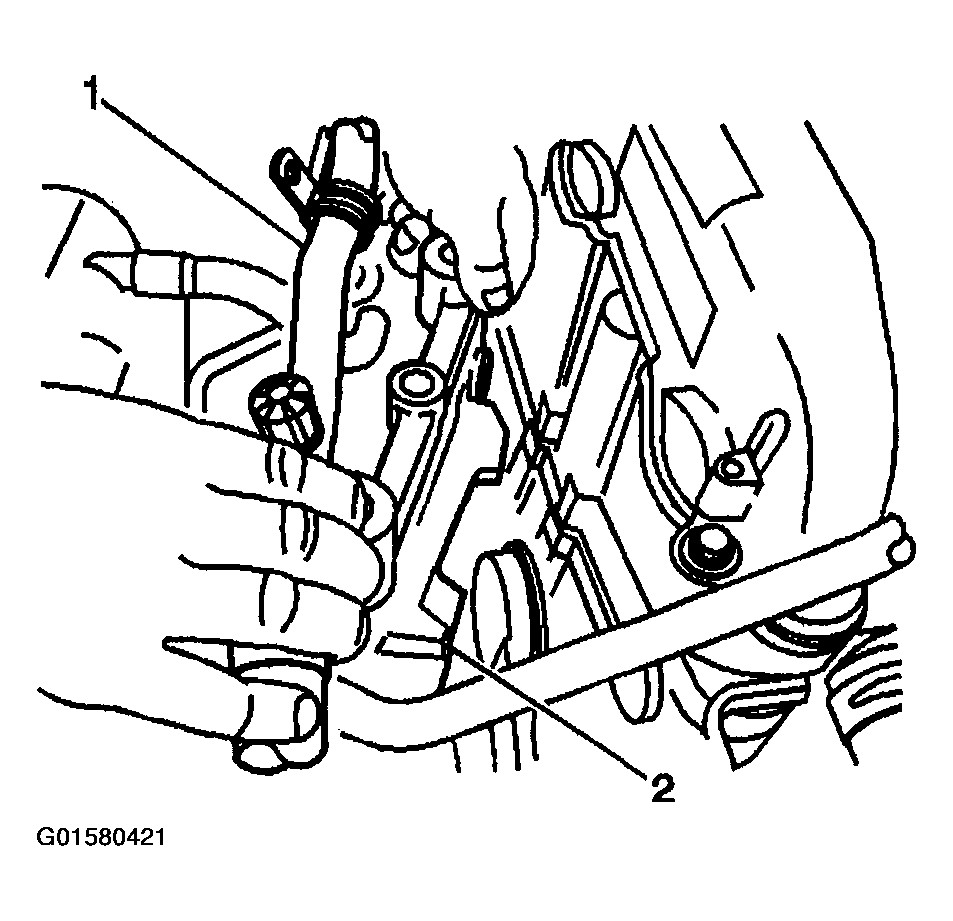

  2. Install the bracket (2) to the engine and hand tighten the lower bolt. See Figure.

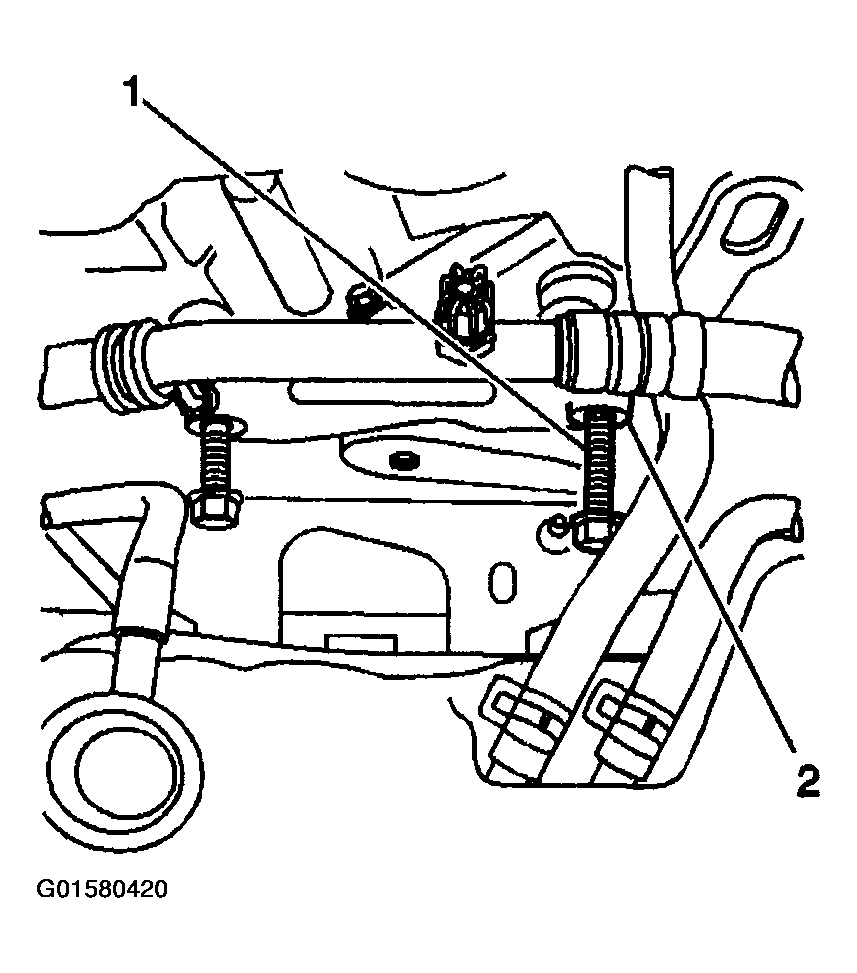

  3. Install the upper bracket bolts (1). See Figure.

    Tighten

    Tighten all the bolts to 110 N.m (81 lb ft).

  4. Install the engine mount. Refer to Engine Mount Replacement .
