Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Remove the tire and wheel assembly.
  2. Remove the screws from the front fender liner at the front bumper fascia. Remove the push-in retainers from the fender liner. Remove the screws from the fender liner to the fender. Remove the front fender liner from the fender.
  3. Rotate the drive belt tensioner counterclockwise to release the spring tension.
  4. Remove the drive belt.

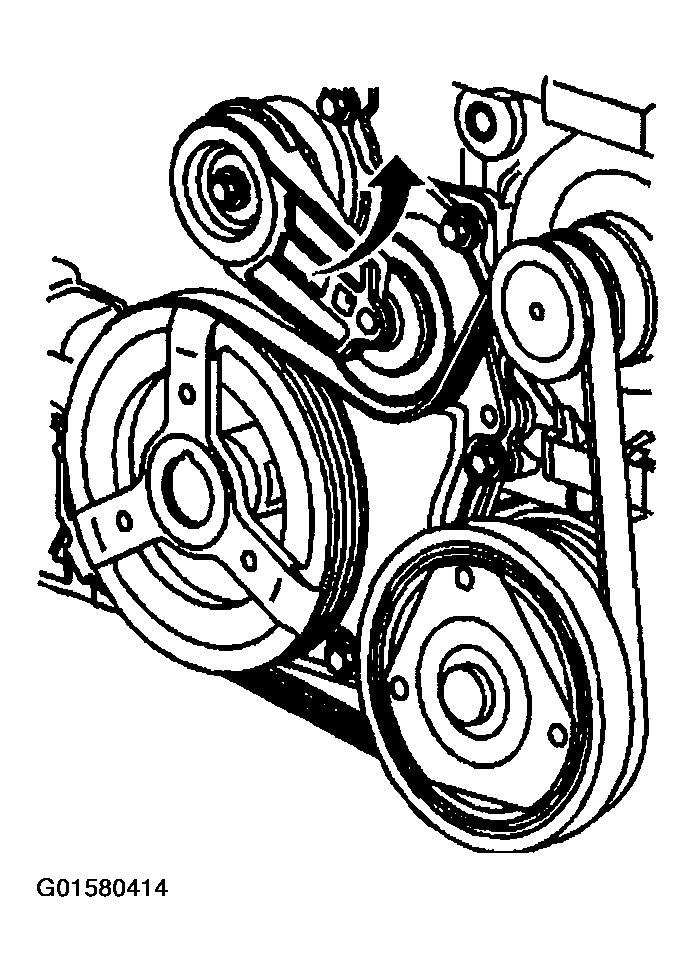

    Fig 1: Drive Belt Routing
    G01580414Courtesy of GENERAL MOTORS CORP.
