Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 42067  and install the seal.

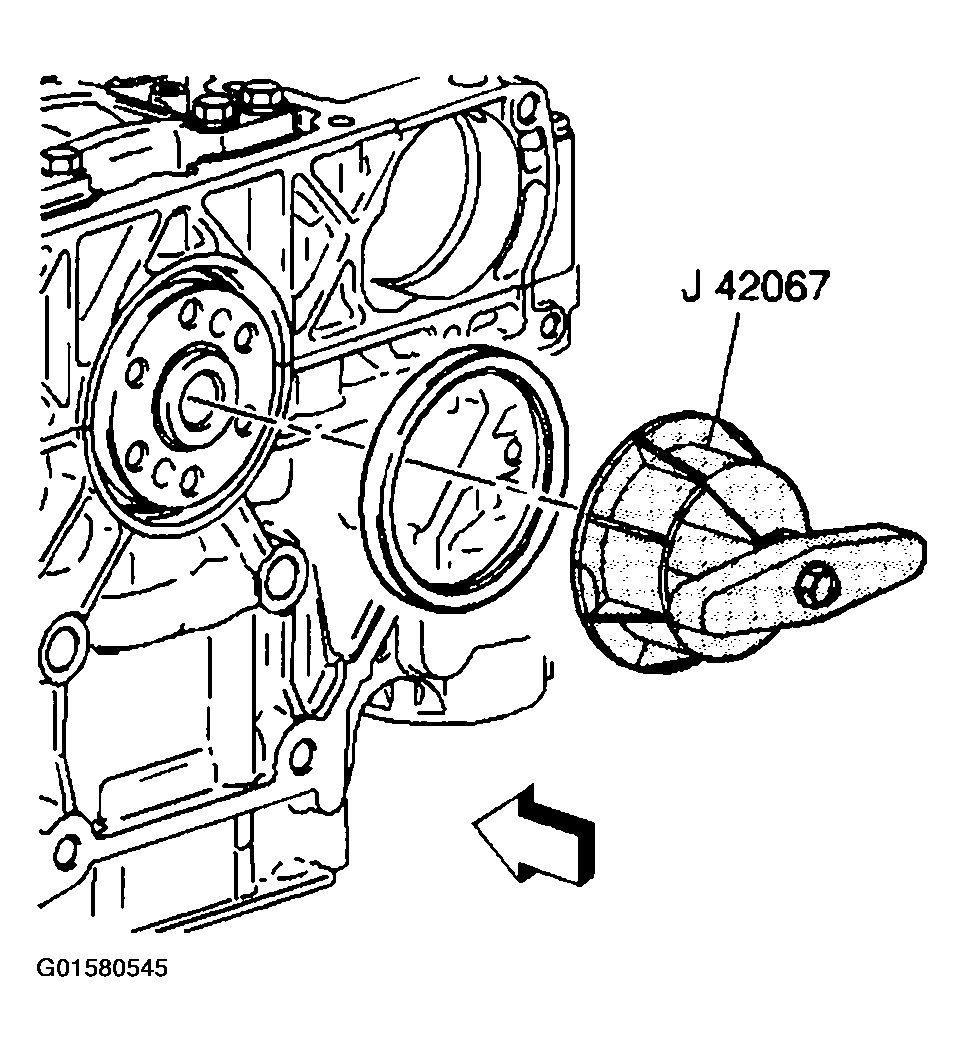

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01580545Courtesy of GENERAL MOTORS CORP.
  2. Install the flywheel.

    Tighten

    Tighten the flywheel bolts to 53 N.m (39 lb ft) plus 25 degrees.

  3. Install the transmission. Refer to TRANSAXLE or TRANSMISSION REPLACEMENT .
    Fig 2: Removing/Installing Flywheel
    G01580546Courtesy of GENERAL MOTORS CORP.
