Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  2. Use a flat bladed tool to remove the seal from the front cover.

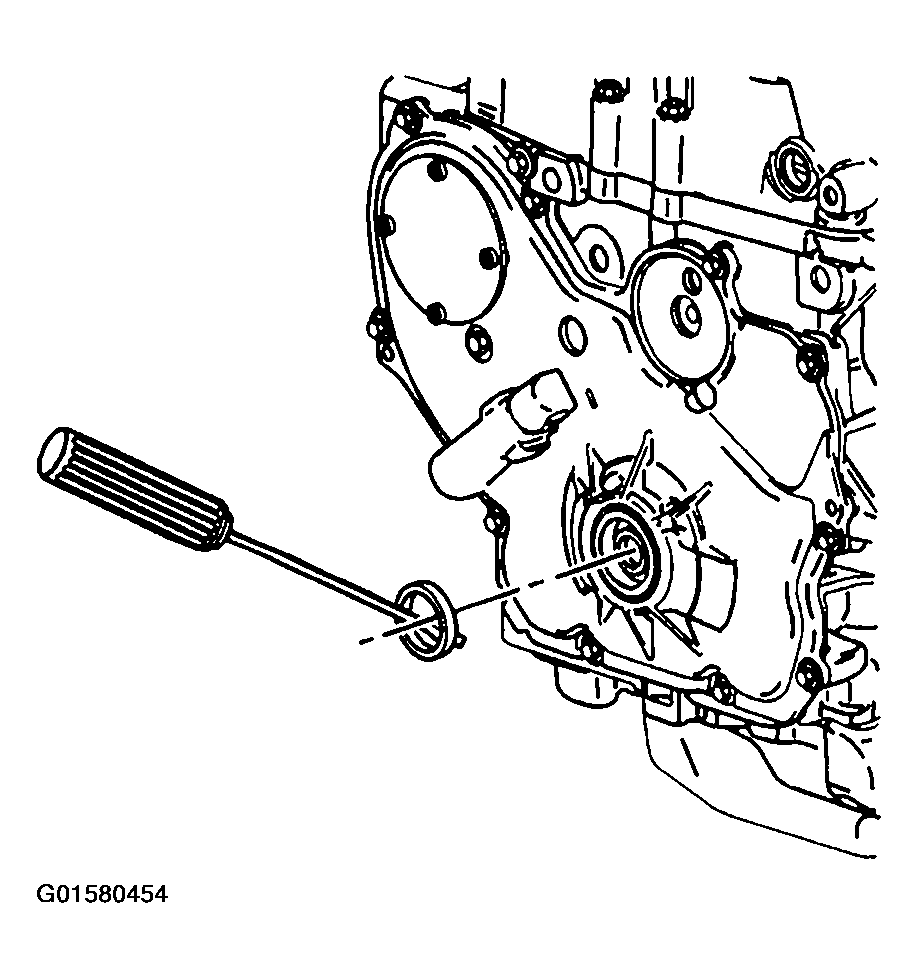

    Fig 1: Removing Crankshaft Front Oil Seal
    G01580454Courtesy of GENERAL MOTORS CORP.
