Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 35268-A  in order to install the crankshaft front oil seal to the engine front cover.

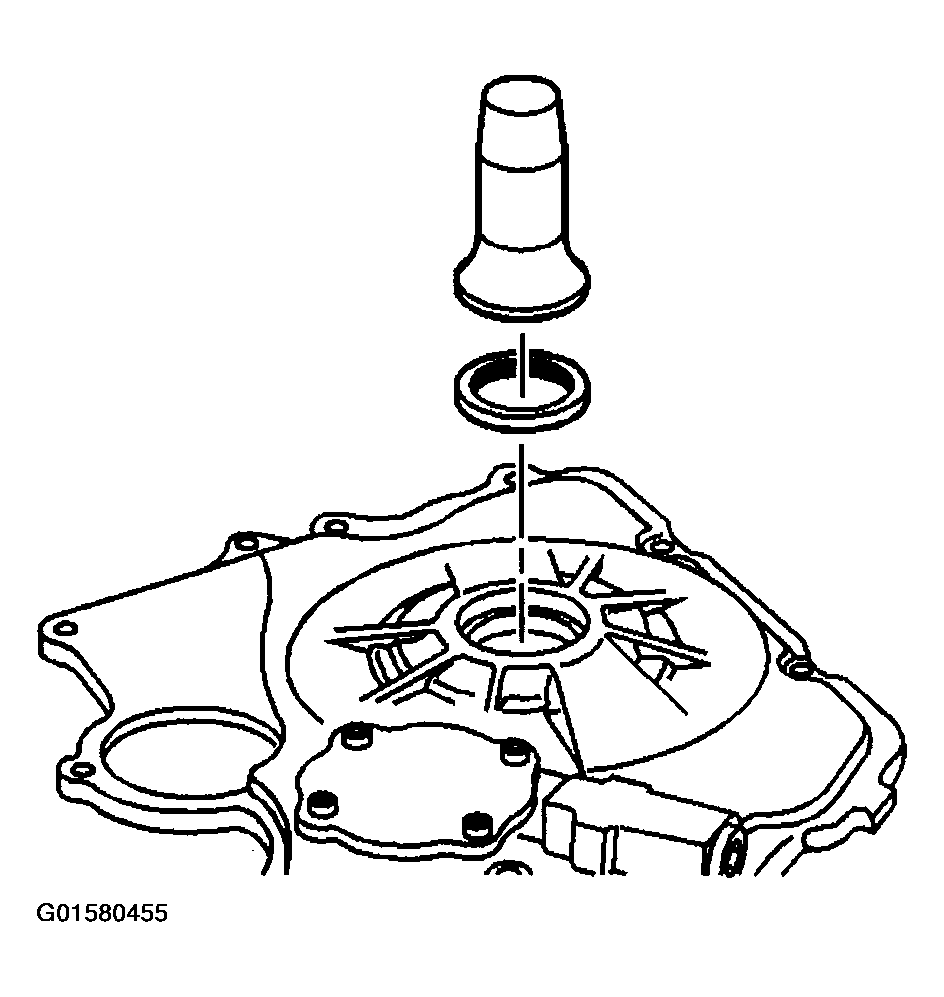

    Fig 1: Installing Crankshaft Front Oil Seal
    G01580455Courtesy of GENERAL MOTORS CORP.
  2. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
