Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

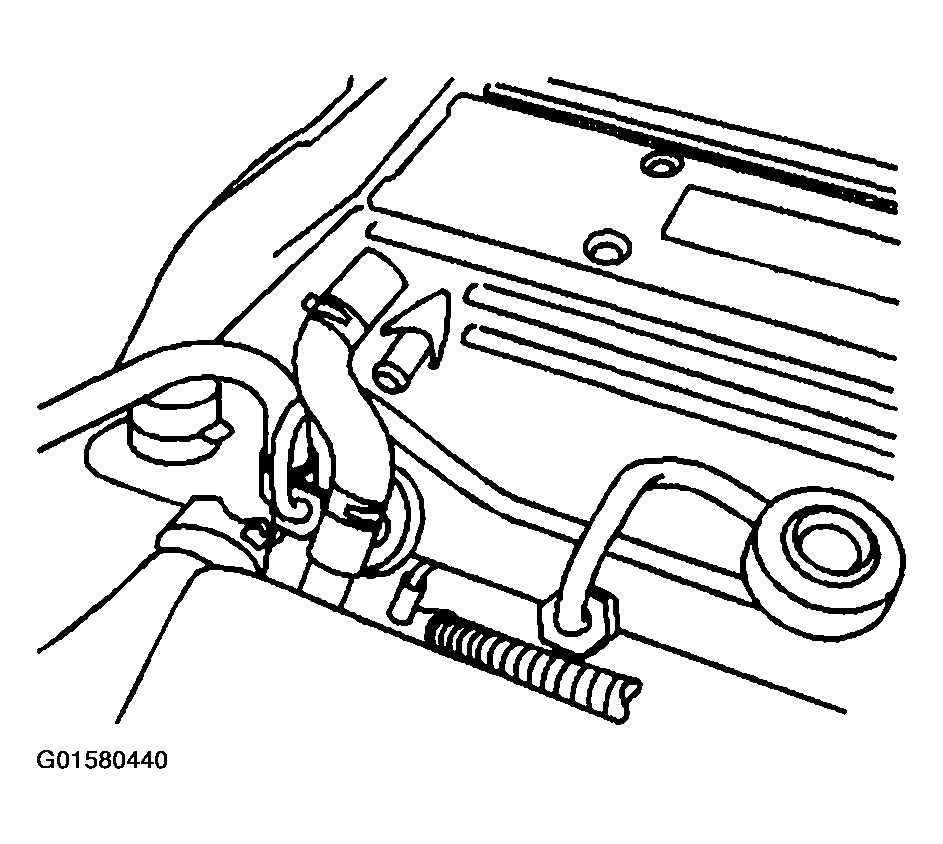

  1. Connect the crankcase ventilation hose to the camshaft cover. See Figure.
  2. Connect the crankcase ventilation hose to the intake manifold.
