Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

J 45027  Tensioner Tool

  1. Disconnect the negative battery cable.
  2. Remove the No. 1 cylinder spark plug.
  3. Rotate the crankshaft in the engine rotational direction clockwise, until the No. 1 piston is at top dead center (TDC) on the compression stroke.
  4. Raise and support the vehicle.
  5. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  6. Lower the vehicle.
  7. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
    G01580465Courtesy of GENERAL MOTORS CORP.

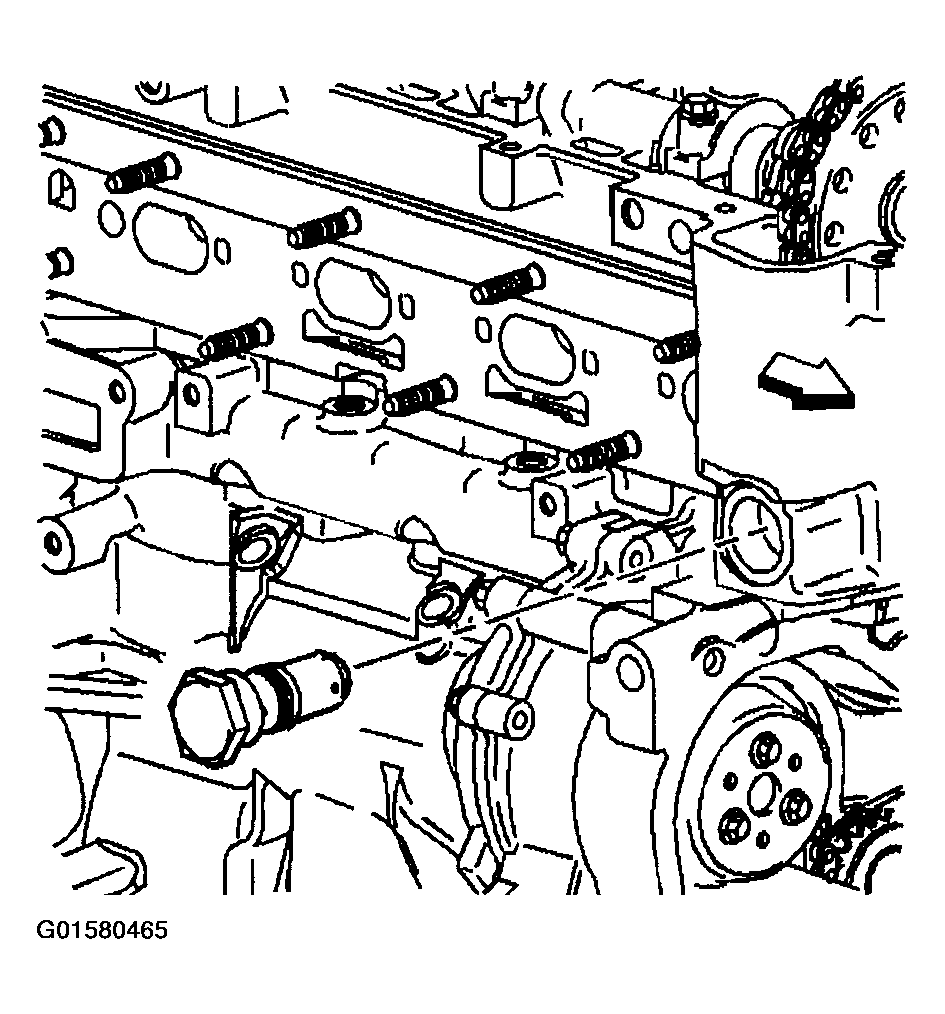

    IMPORTANT: The timing chain tensioner must be removed to unload chain tension before the timing chain is removed. If not removed, the timing chain will become cocked and it will be difficult to remove.
  8. Remove the timing chain tensioner.
    G01580466Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper timing chain guide.
    G01580467Courtesy of GENERAL MOTORS CORP.

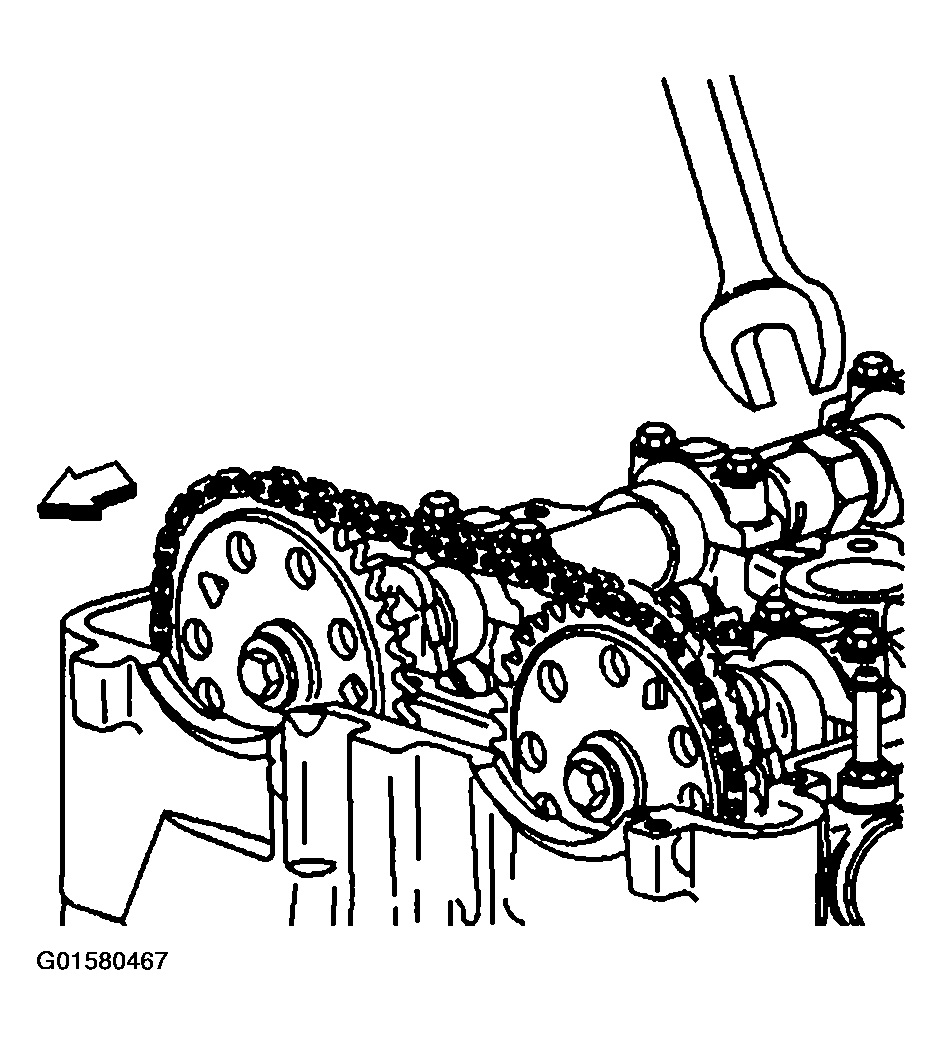

  10. Use a 24 mm wrench to hold the camshafts from turning.
    G01580468Courtesy of GENERAL MOTORS CORP.

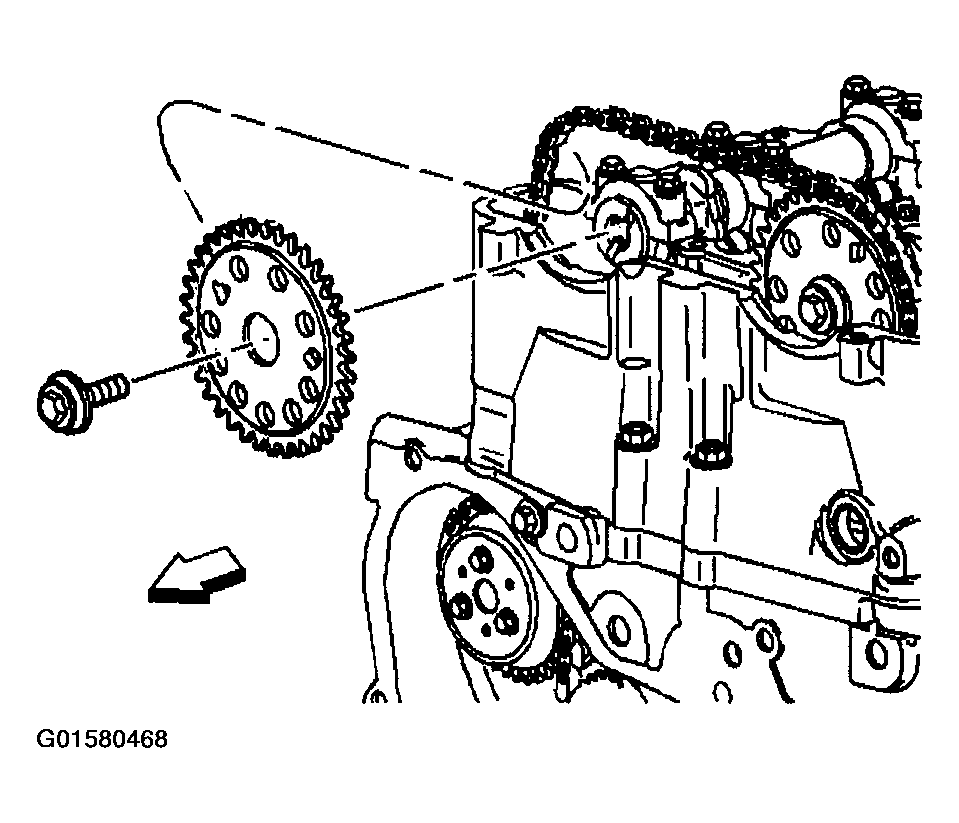

  11. Remove the exhaust camshaft sprocket bolt and discard.
  12. Remove the exhaust camshaft sprocket.
    G01580469Courtesy of GENERAL MOTORS CORP.

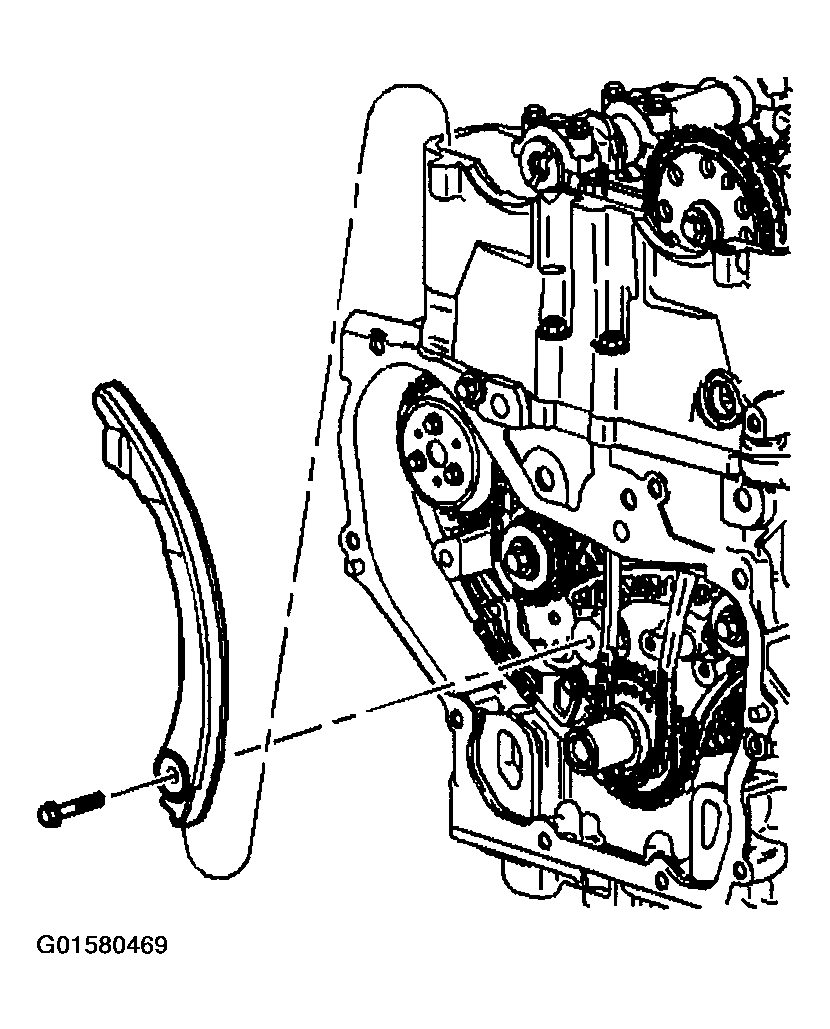

  13. Remove the timing chain tensioner guide.
    G01580470Courtesy of GENERAL MOTORS CORP.
  14. Remove the engine mount. Refer to Engine Mount Bracket Replacement .

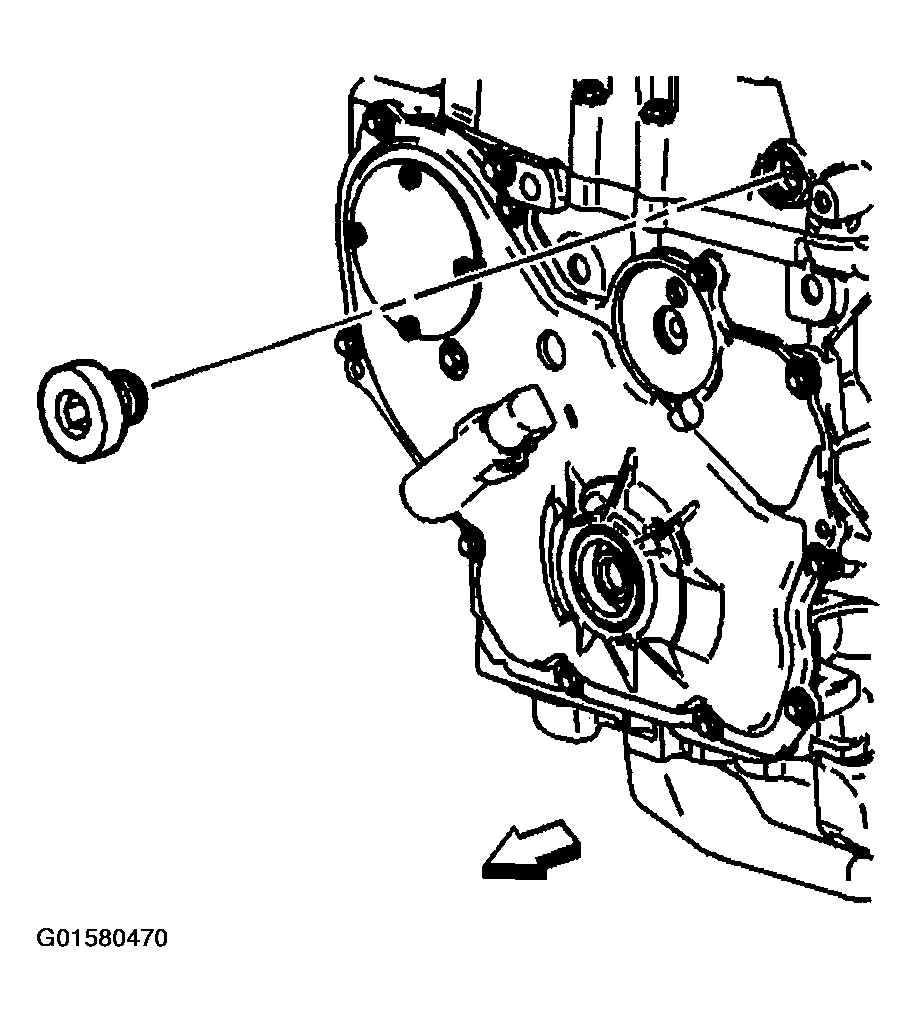

  15. Remove the fixed timing chain guide access plug.
    G01580471Courtesy of GENERAL MOTORS CORP.

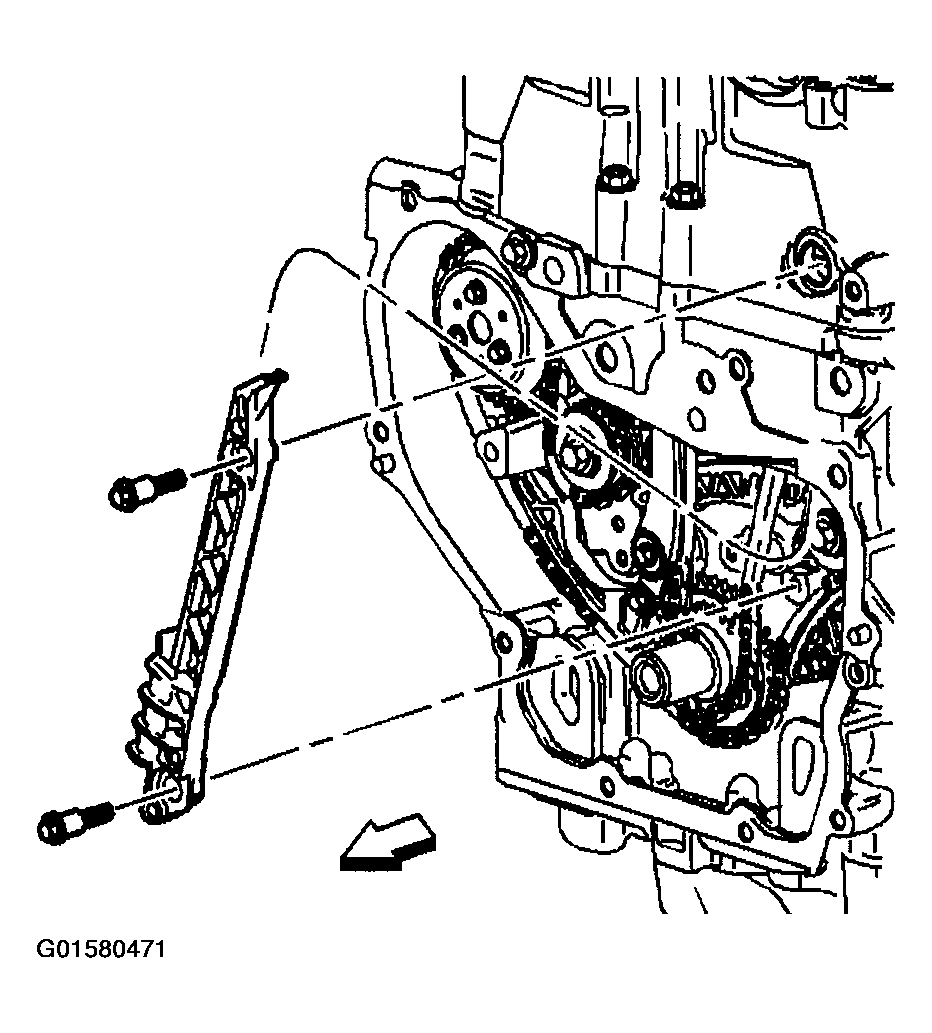

  16. Remove the fixed timing chain guide.
  17. Remove the intake camshaft sprocket bolt and discard.
    G01580472Courtesy of GENERAL MOTORS CORP.

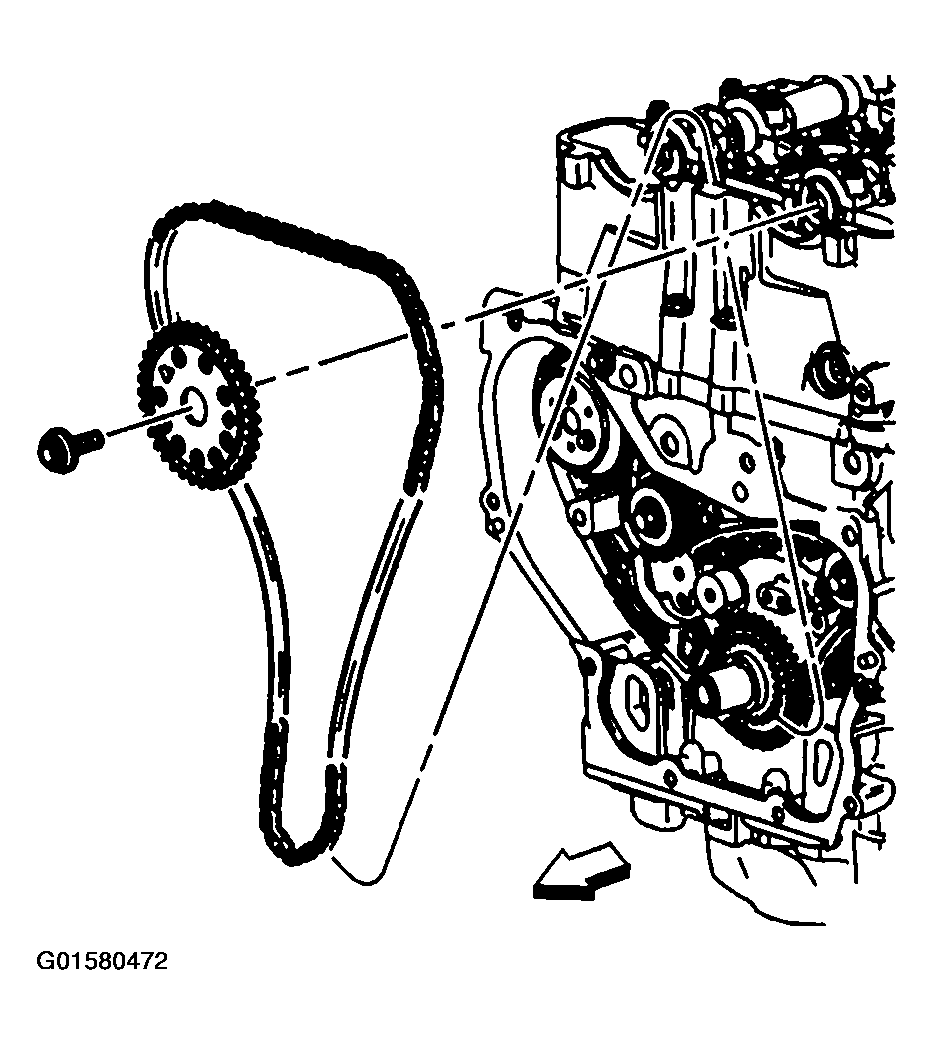

  18. Remove the intake camshaft sprocket.
  19. Remove the timing chain through the top of the cylinder head.
    G01580473Courtesy of GENERAL MOTORS CORP.

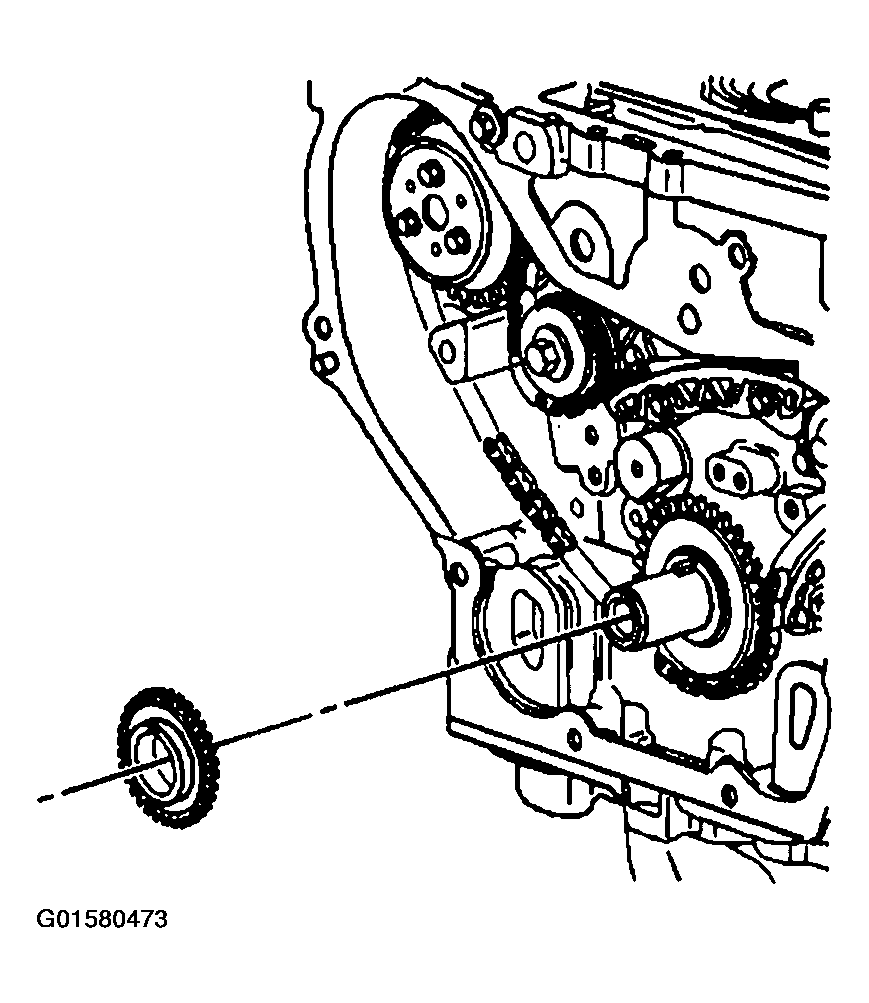

  20. Remove the crankshaft sprocket.
    G00599688Courtesy of GENERAL MOTORS CORP.

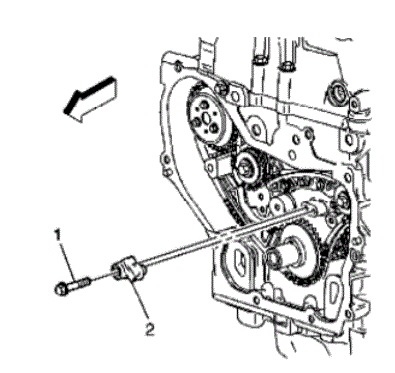

  21. Remove the oil nozzle and bolt.
    G01580474Courtesy of GENERAL MOTORS CORP.

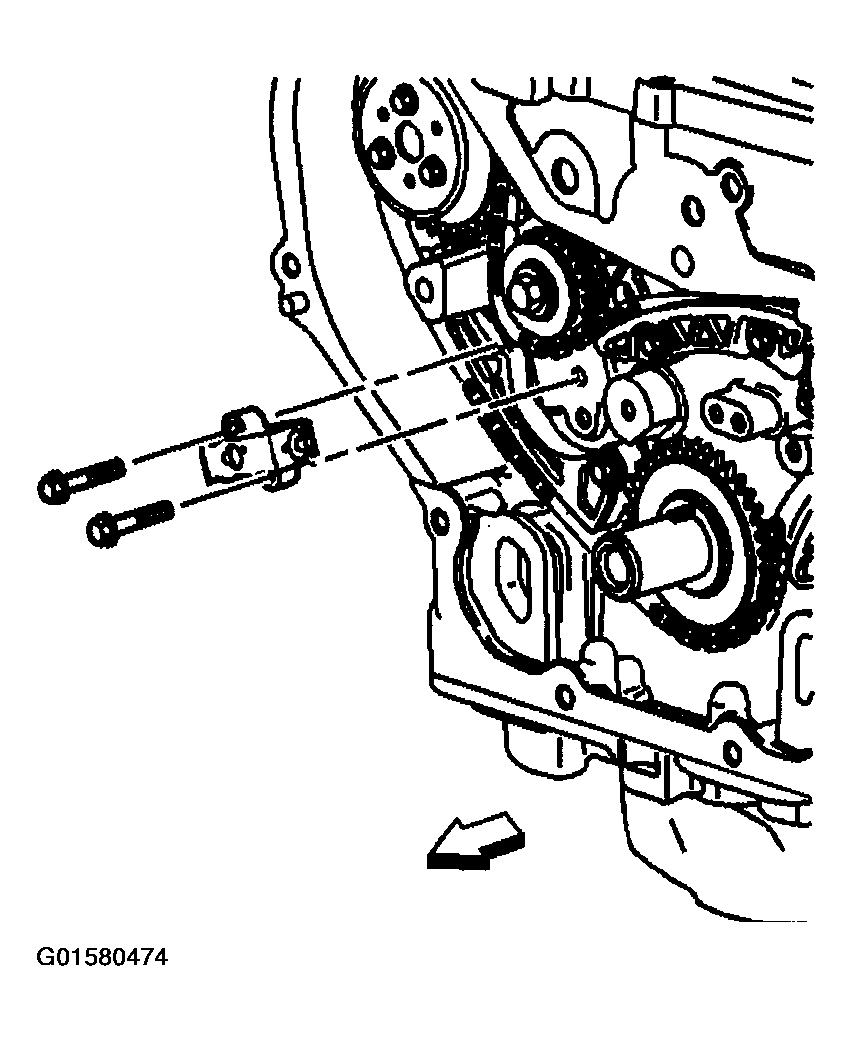

  22. Remove the balance shaft drive chain tensioner.
    G01580475Courtesy of GENERAL MOTORS CORP.

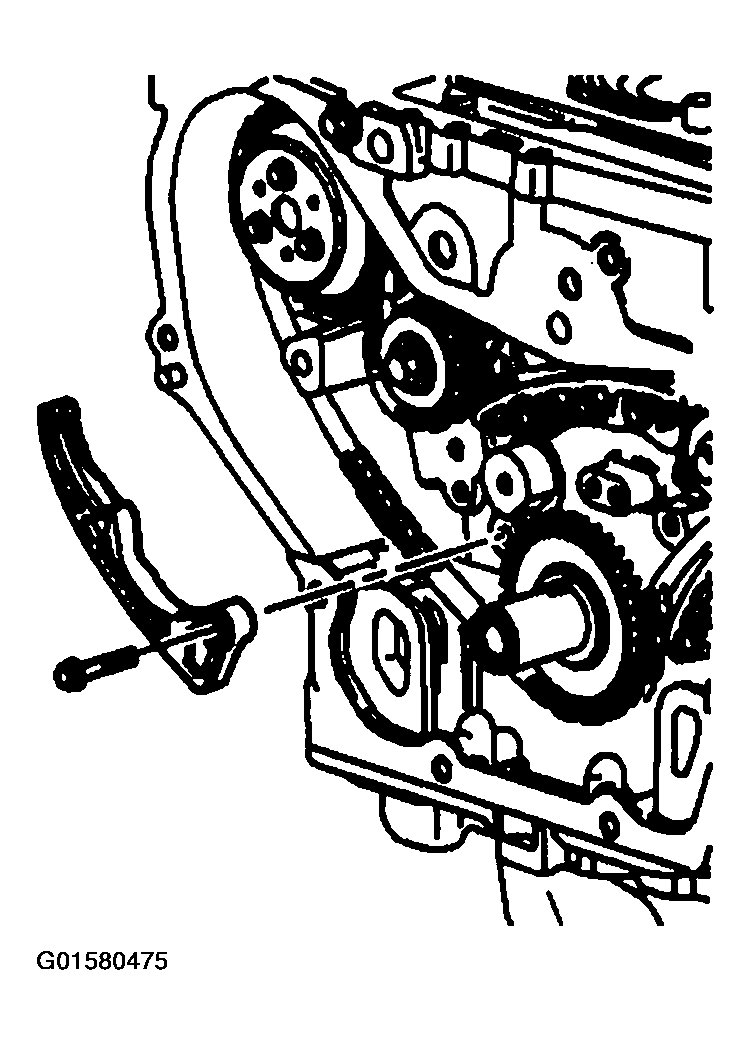

  23. Remove the adjustable balance shaft chain guide.
    G01580476Courtesy of GENERAL MOTORS CORP.

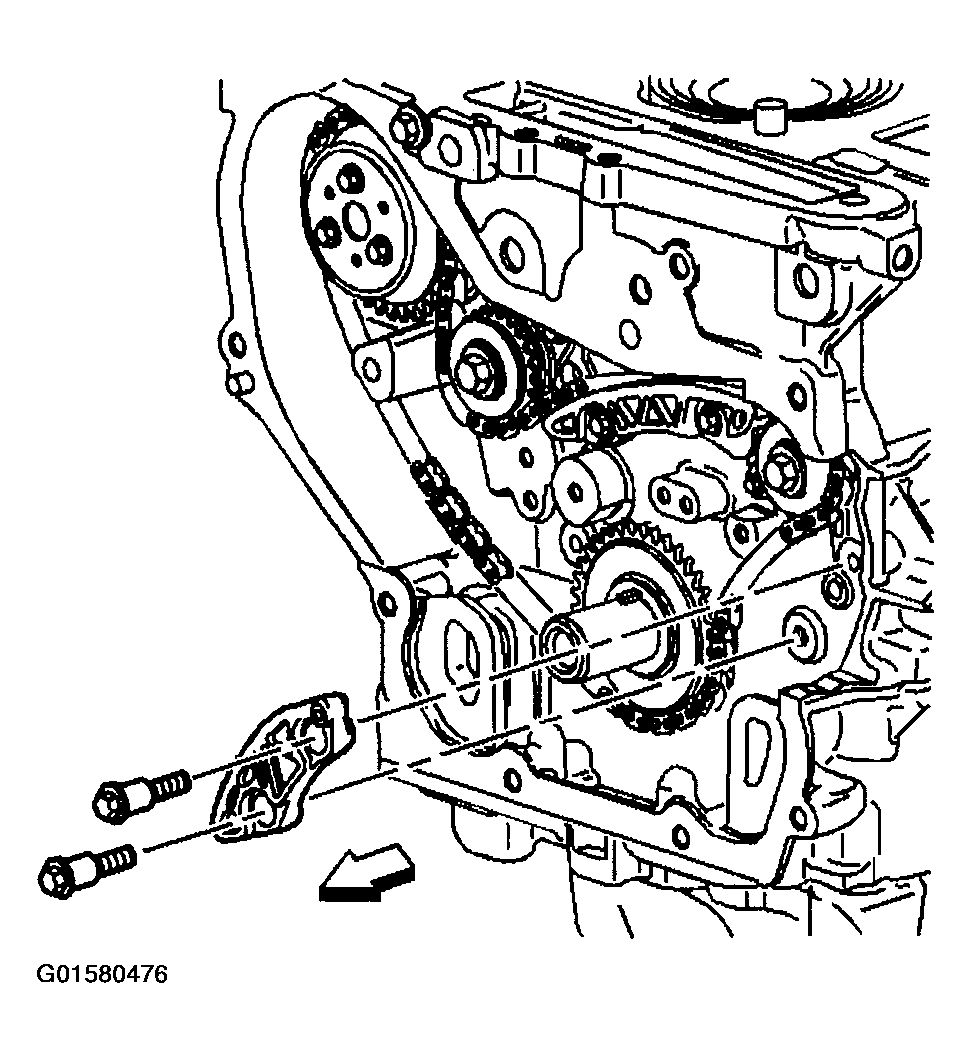

  24. Remove the small balance shaft drive chain guide.
    G01580477Courtesy of GENERAL MOTORS CORP.

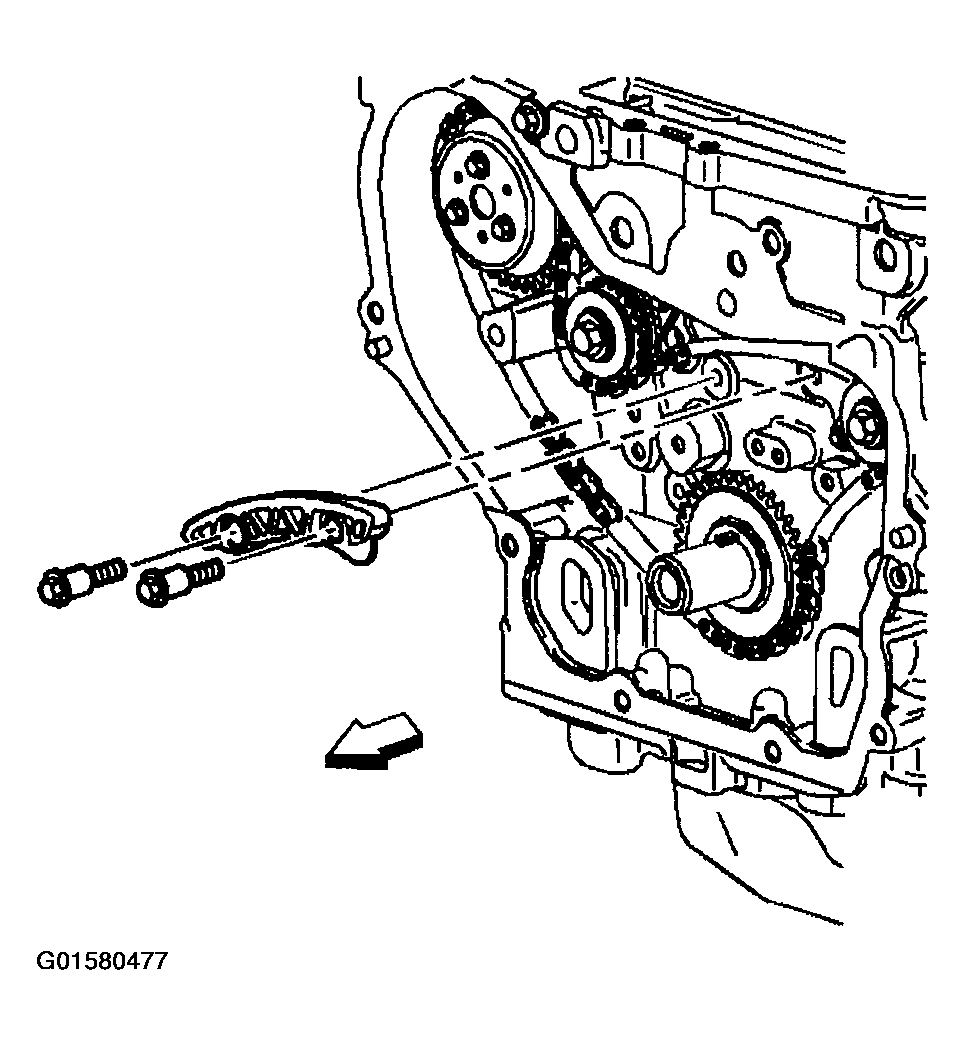

  25. Remove the upper balance shaft drive chain guide.
    G01580478Courtesy of GENERAL MOTORS CORP.

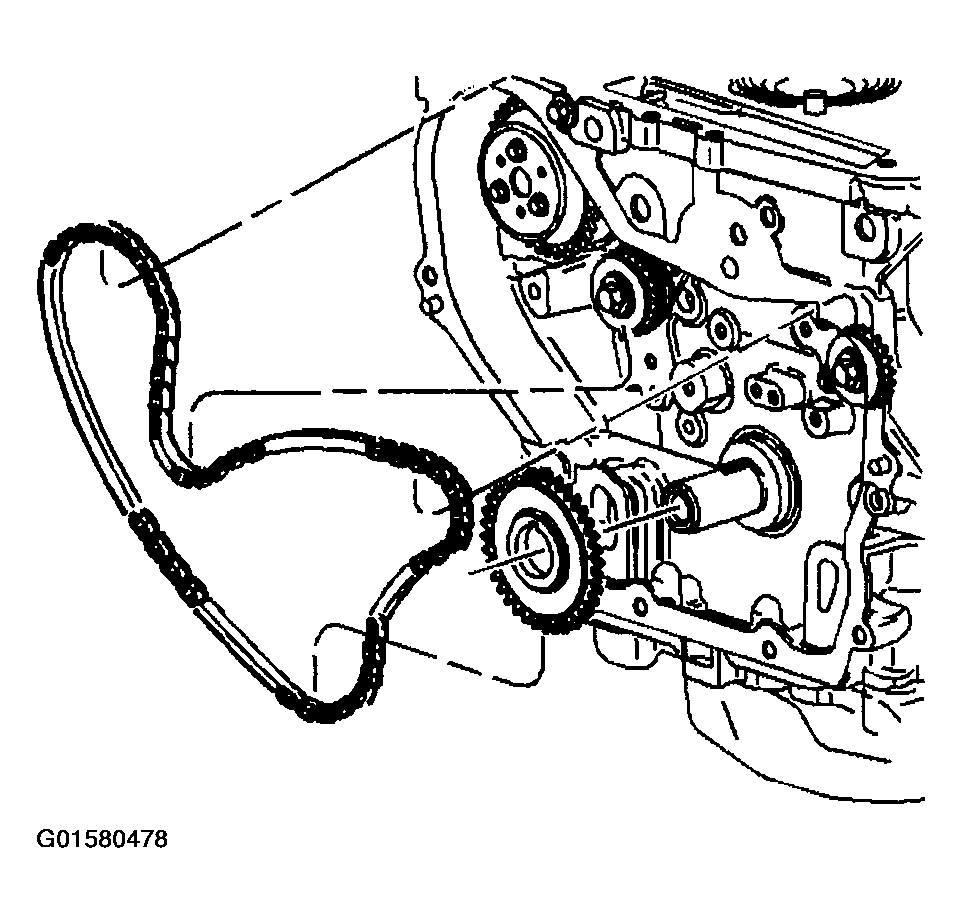

    IMPORTANT: It may ease removal of the balance shaft drive chain to get all of the slack in the chain between the crankshaft and water pump sprockets.
  26. Remove the balance shaft drive chain.
