Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important: If the balance shafts are not properly timed to the engine, the engine may vibrate and make noise.

Install the upper balance shaft chain guide.
Tighten

Tighten the upper balance shaft chain guide bolts to 15 N.m (133 lb in).

Courtesy of GENERAL MOTORS CORP.
Install the small balance shaft chain guide.

Courtesy of GENERAL MOTORS CORP.
Tighten the balance shaft chain guide bolts.
Tighten

Tighten the chain guide bolts to 10 N.m (89 lb in).

Courtesy of GENERAL MOTORS CORP.

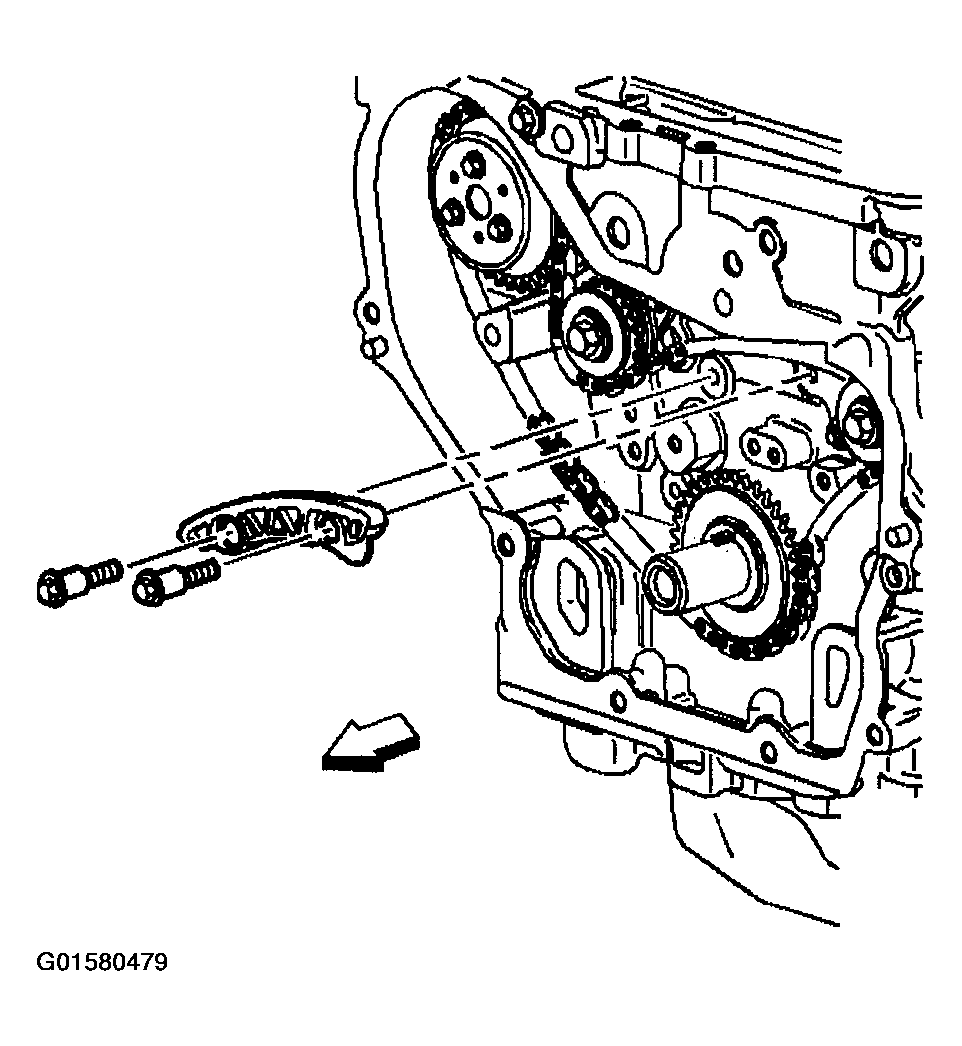

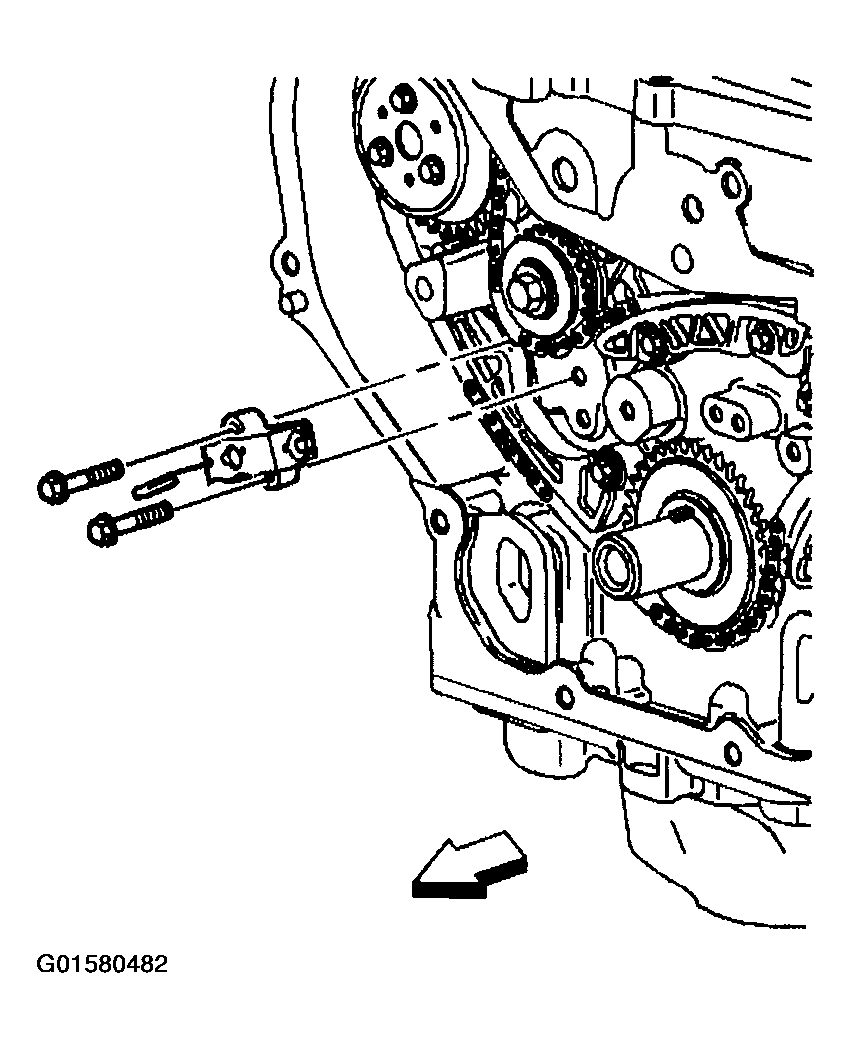

Install the adjustable balance shaft drive chain guide.
Tighten

Tighten the chain guide bolts to 10 N.m (89 lb in).

Courtesy of GENERAL MOTORS CORP.

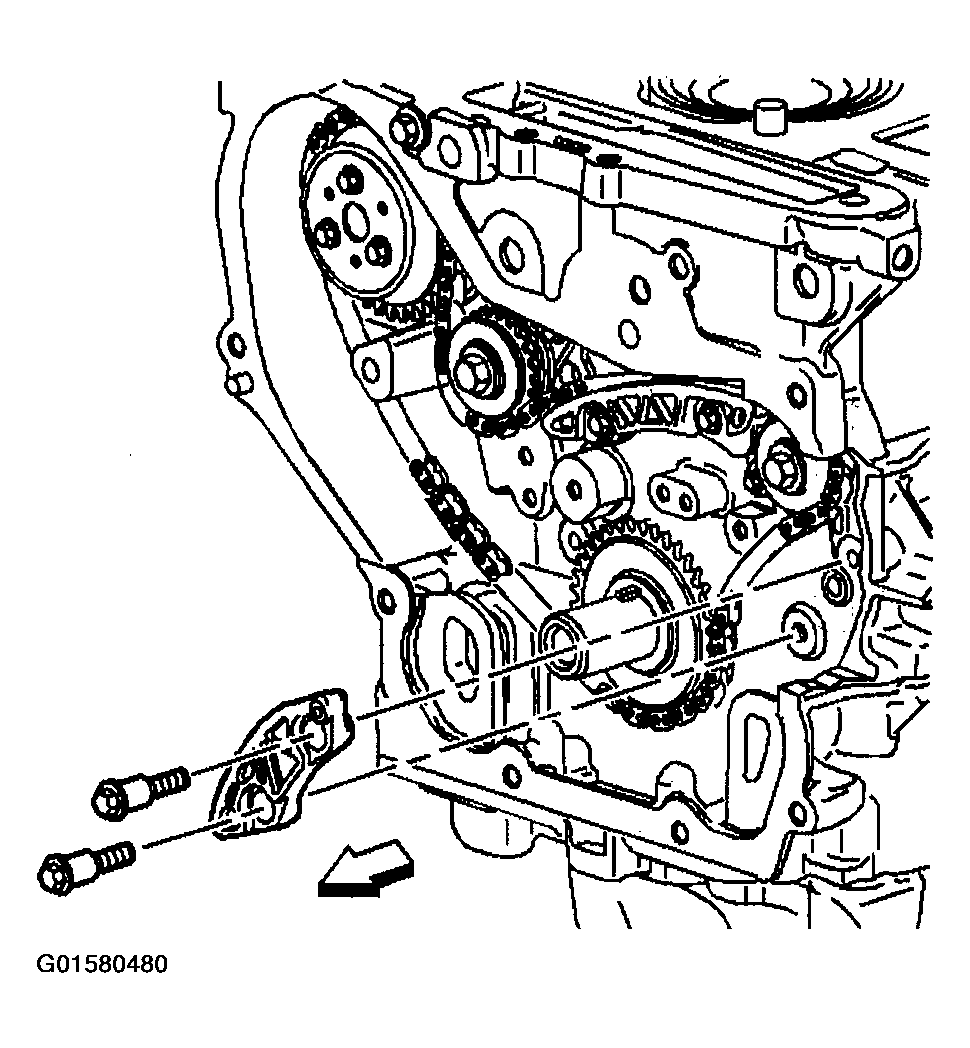

Turn the tensioner plunger 90 degrees in its bore and compress the plunger until a paper clip can be inserted through the hole in the plunger body and into hole in the tensioner plunger.
Install the timing chain tensioner.
Tighten the chain tensioner bolts.
Tighten

Tighten the chain tensioner bolts to 10 N.m (89 lb in).
Remove the paper clip from the balance shaft drive chain tensioner.
Install the oil nozzle and bolt.
Tighten

Tighten the chain tensioner bolts to 10 N.m (89 lb in).

Courtesy of GENERAL MOTORS CORP.
Install the crankshaft sprocket with timing mark at the 5 o'clock position.

Courtesy of GENERAL MOTORS CORP.

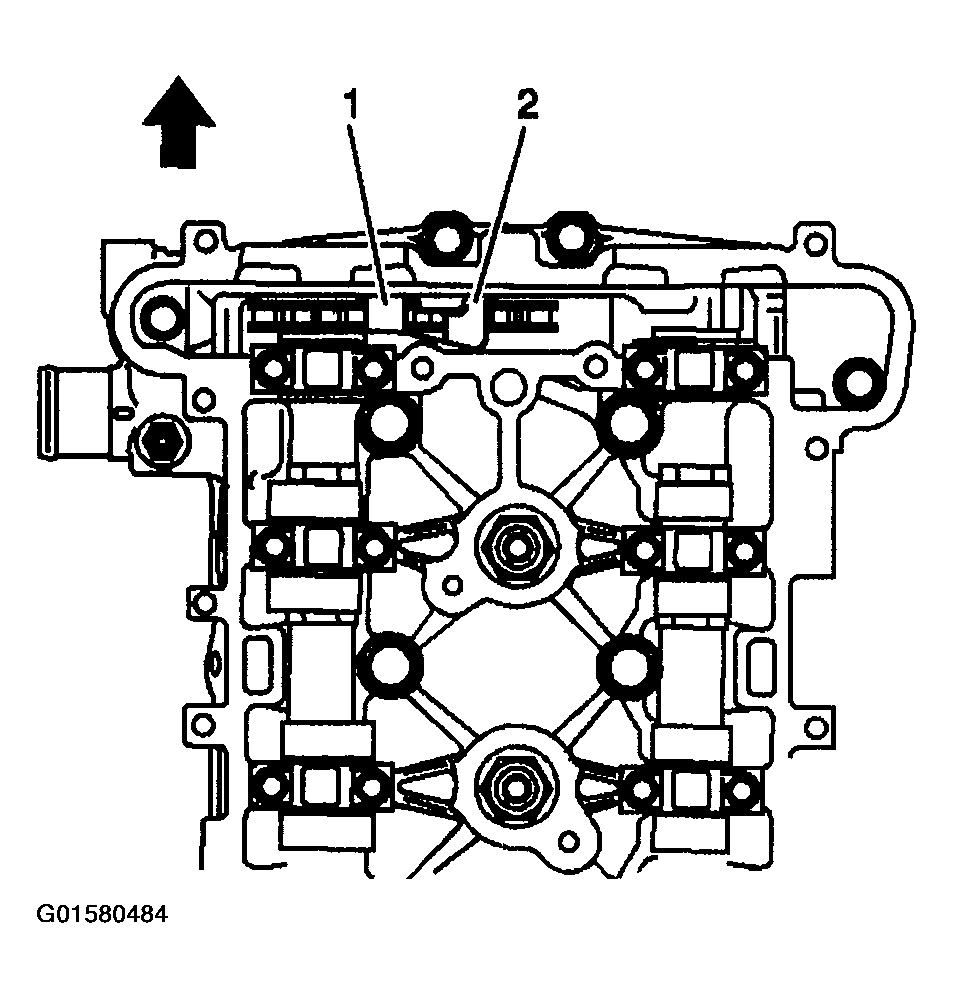

Lower the timing chain through the opening in the top of the cylinder head. Carefully ensure that the chain goes around both sides of the cylinder block bosses (1, 2).

Courtesy of GENERAL MOTORS CORP.
Install the intake camshaft sprocket with the INT diamond at the 2 o'clock position.
Hand tighten a NEW intake camshaft sprocket bolt.
Route the timing chain around the crankshaft sprocket with the matching colored link aligning with the timing mark.

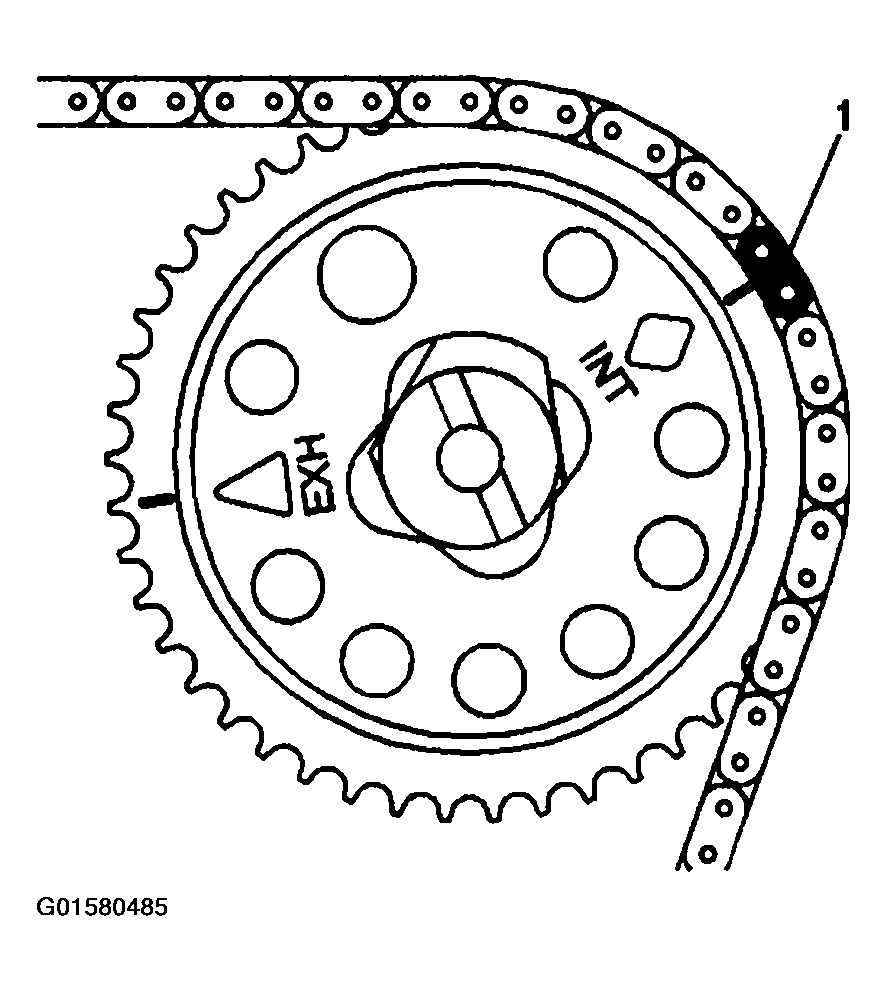

Route the timing chain around the intake camshaft sprocket with the uniquely colored link (1) aligning with the INT diamond.

Courtesy of GENERAL MOTORS CORP.

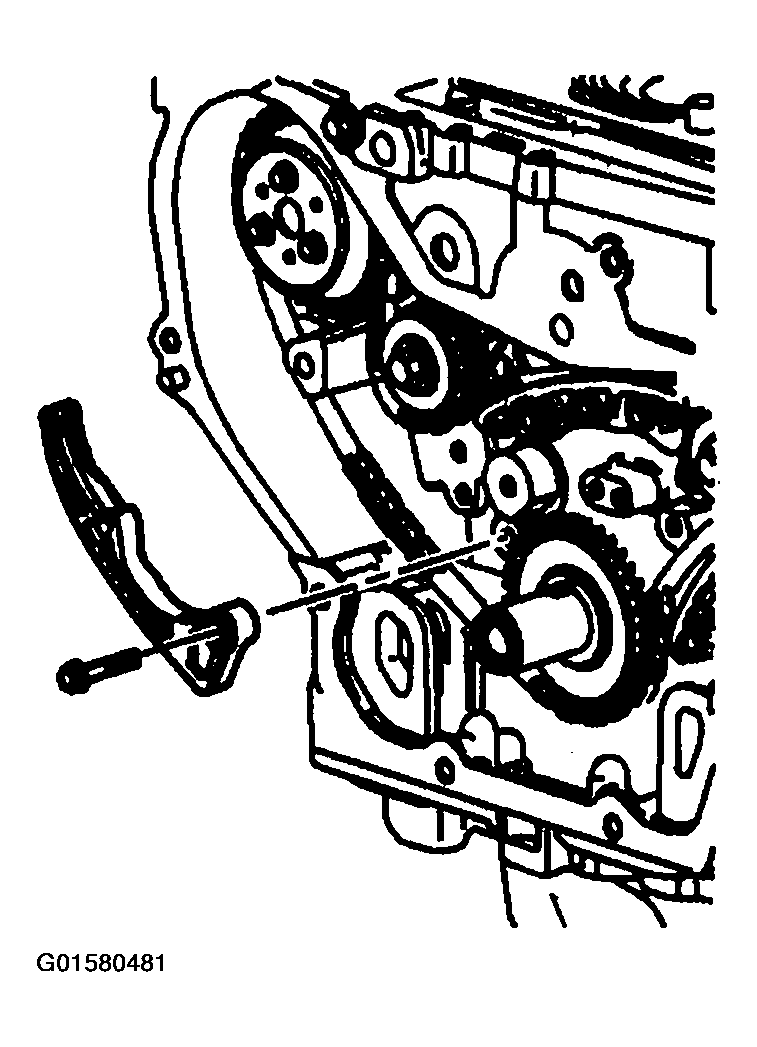

Install the timing chain tensioner guide through the opening in the top of the cylinder head.
Tighten

Tighten the timing chain tensioner guide bolt to 10 N.m (89 lb in).

Courtesy of GENERAL MOTORS CORP.

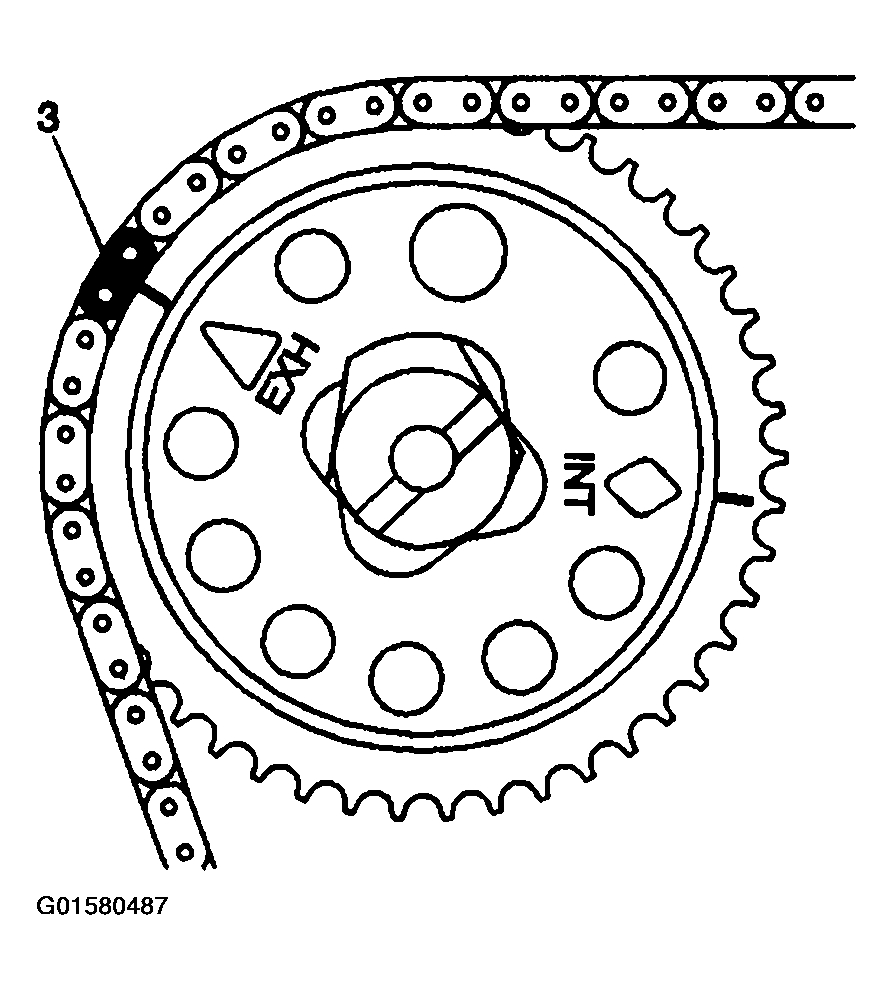

Install the exhaust camshaft sprocket with the timing chain matching colored link (3) at EXH triangle aligned at the 10 o'clock position.

Courtesy of GENERAL MOTORS CORP.

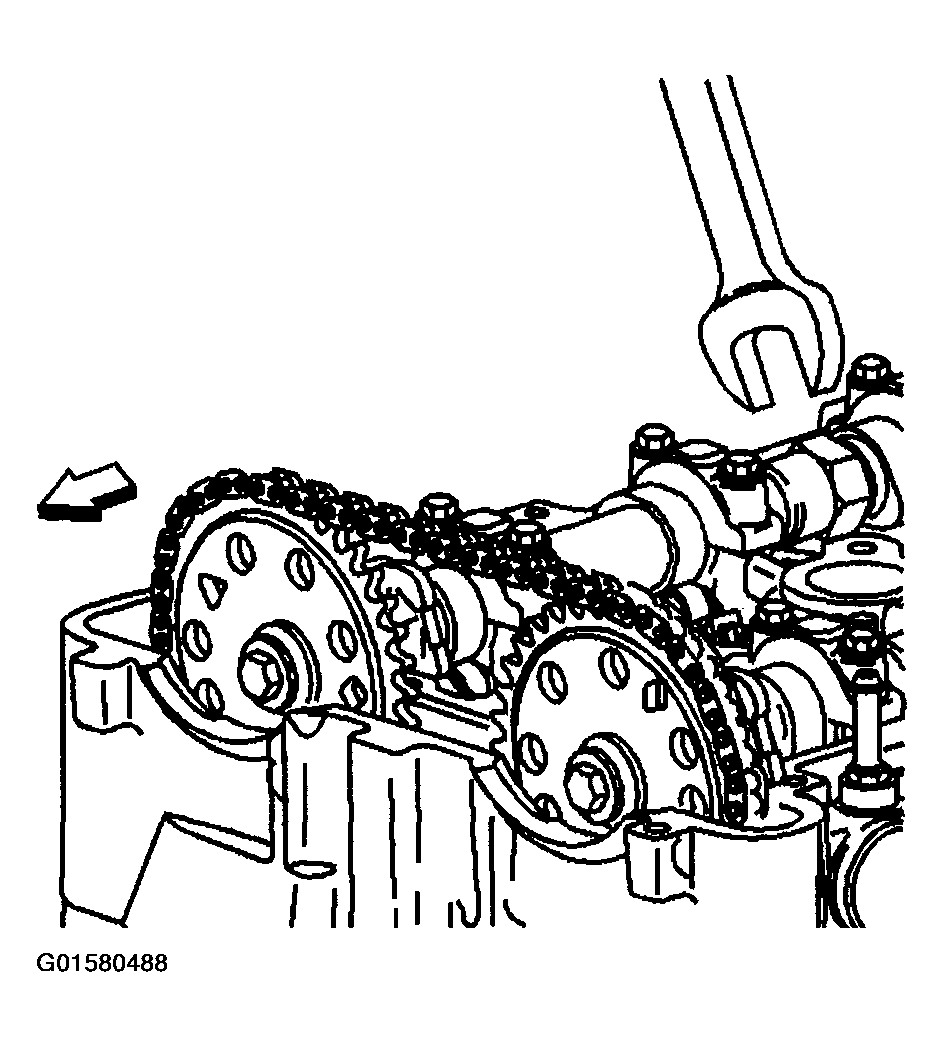

Use a 24 mm wrench to rotate the camshaft slightly, until exhaust sprocket aligns with the camshaft.
Hand tighten the NEW exhaust camshaft sprocket bolt.

Courtesy of GENERAL MOTORS CORP.

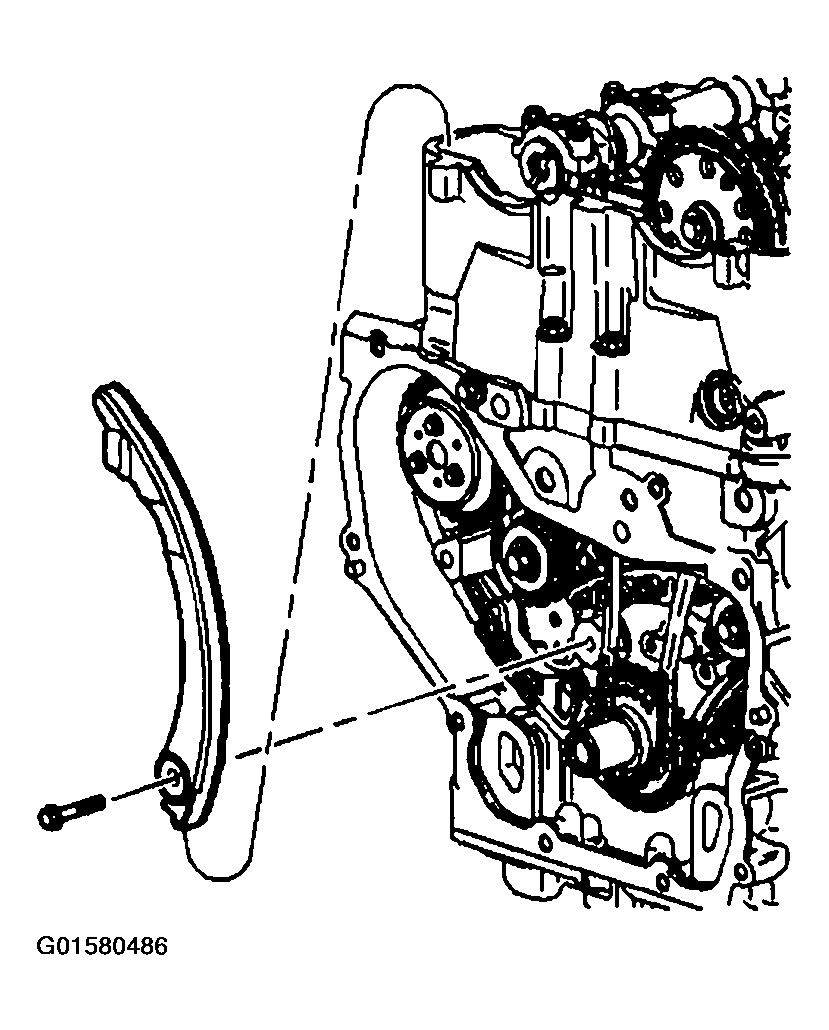

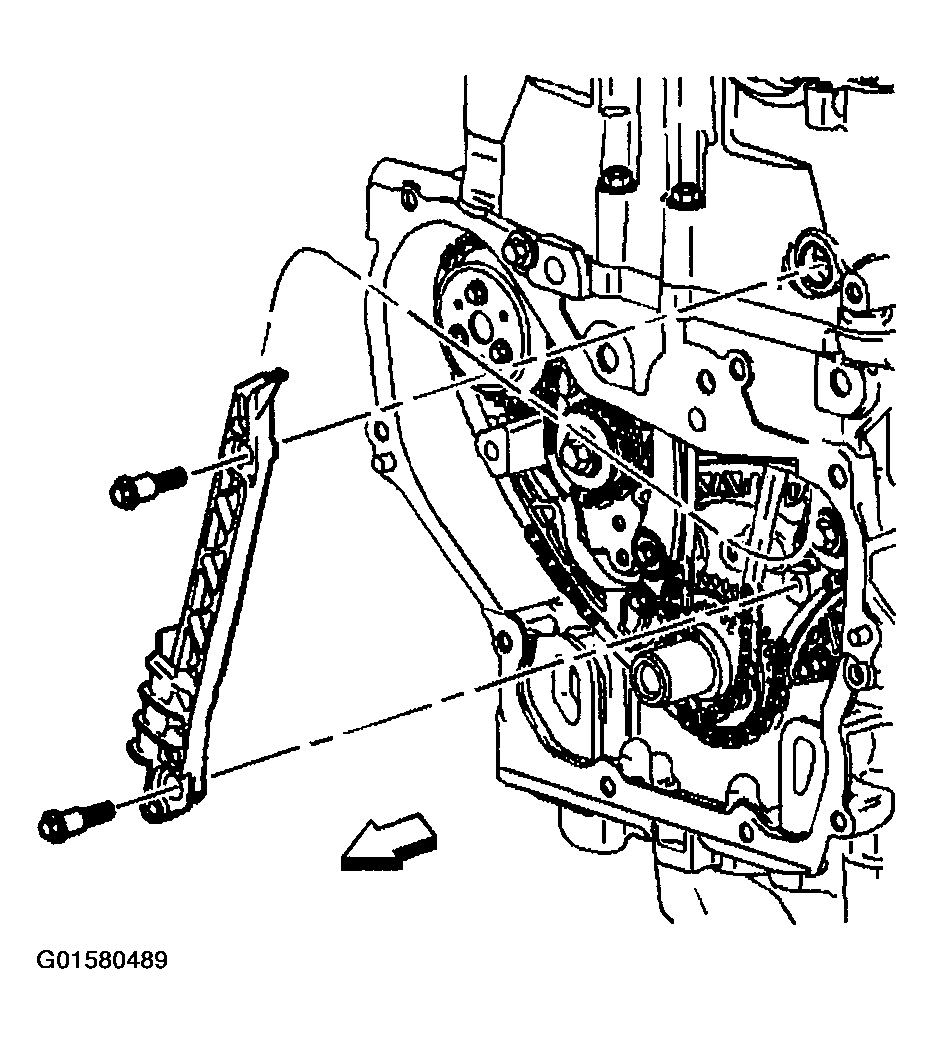

Install the fixed timing chain guide.
Tighten

Tighten the fixed timing chain bolts to 15 N.m (133 lb in).

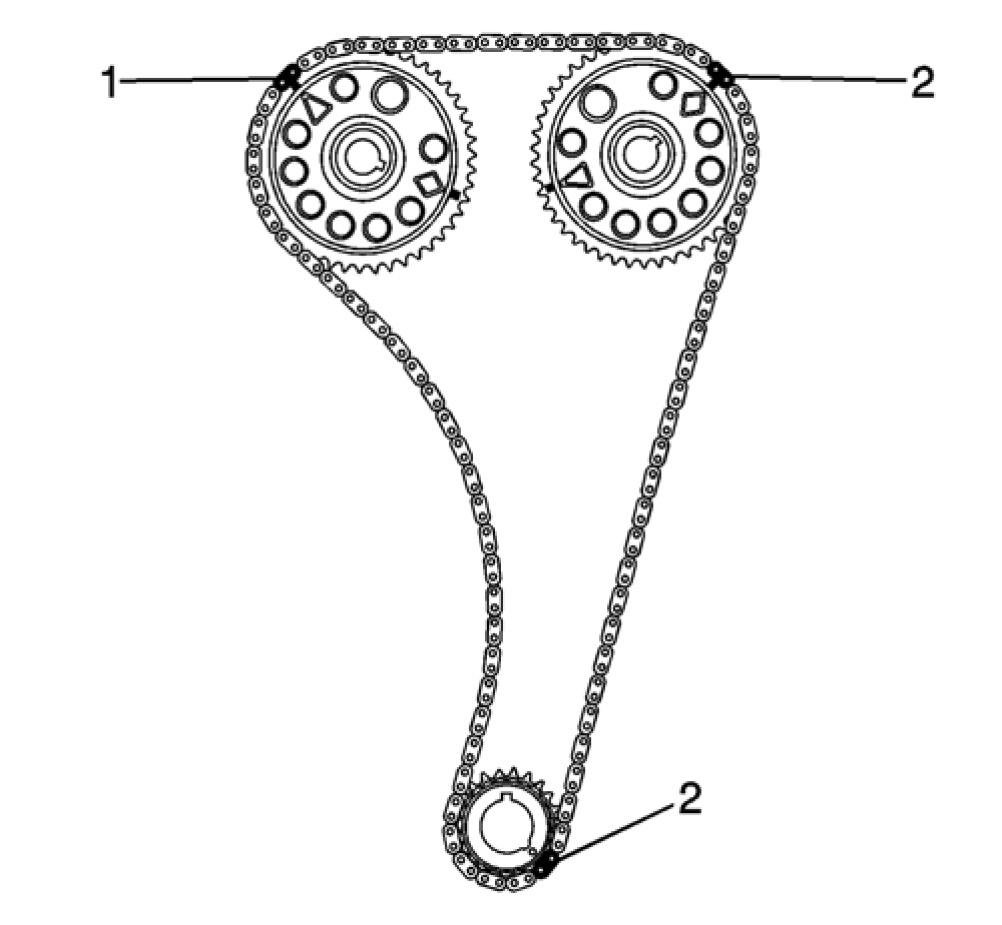

Fig 1: View Of Camshaft & Crankshaft Sprockets Timing Marks Aligned
Courtesy of GENERAL MOTORS CORP.
Verify that all the colored links are aligned with the appropriate exhaust (1), intake (2), and crankshaft marks (3).

Courtesy of GENERAL MOTORS CORP.

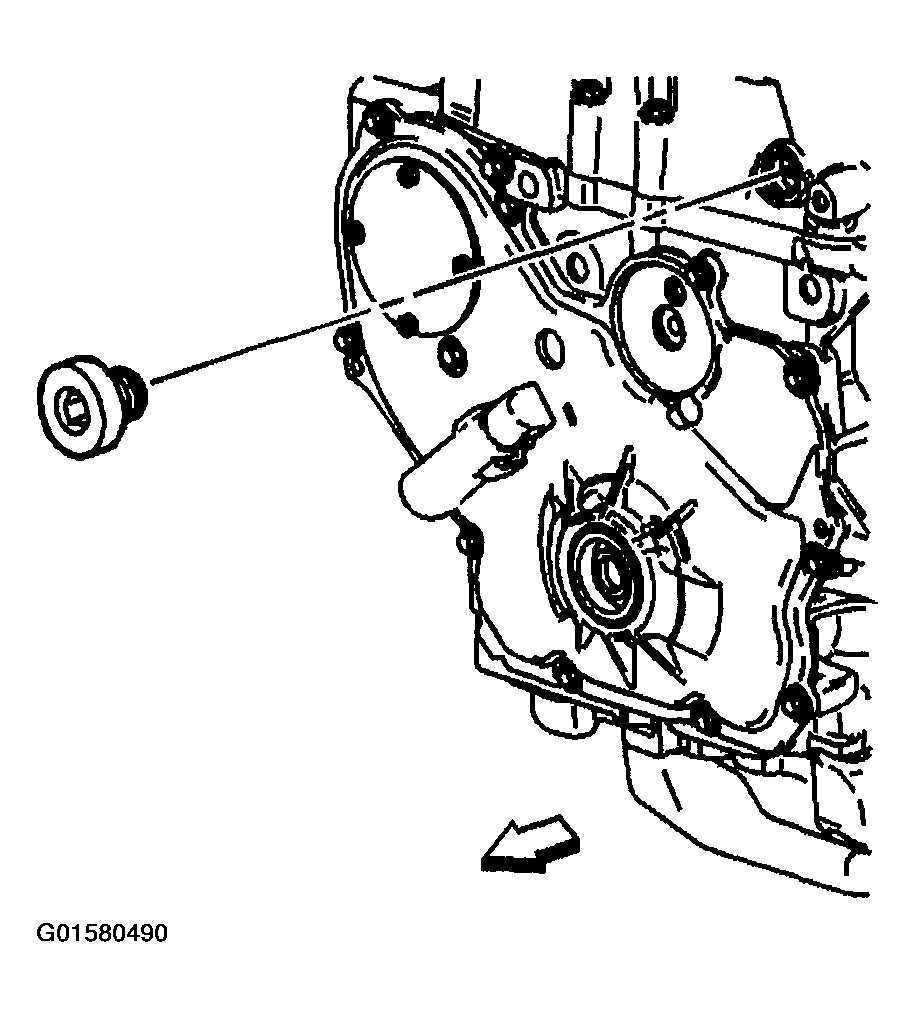

Apply sealant, GM P/N 12345382 (Canadian P/N 10953489) compound to thread and install the timing chain guide bolt access hole plug.
Tighten

Tighten the access hole plug to 90 N.m (66 lb ft).
Install the engine mount. Refer to Engine Mount Bracket Replacement .

Courtesy of GENERAL MOTORS CORP.
Inspect the timing chain tensioner. If the timing chain tensioner, O-ring seal, or washer is damaged, replace the timing chain tensioner.
Measure the timing chain tensioner assembly from end to end.
A new tensioner should be supplied in the fully compressed non-active state. A tensioner in the compressed state will measure 72 mm (2.83 in) (a) from end to end. A tensioner in the active state will measure 85 mm (3.35 in) (a) from end to end.

Courtesy of GENERAL MOTORS CORP.
If the timing chain tensioner is not in the compressed state, perform the following steps:
1. 24.1. Remove the piston assembly from the body of the timing chain tensioner by pulling it out.

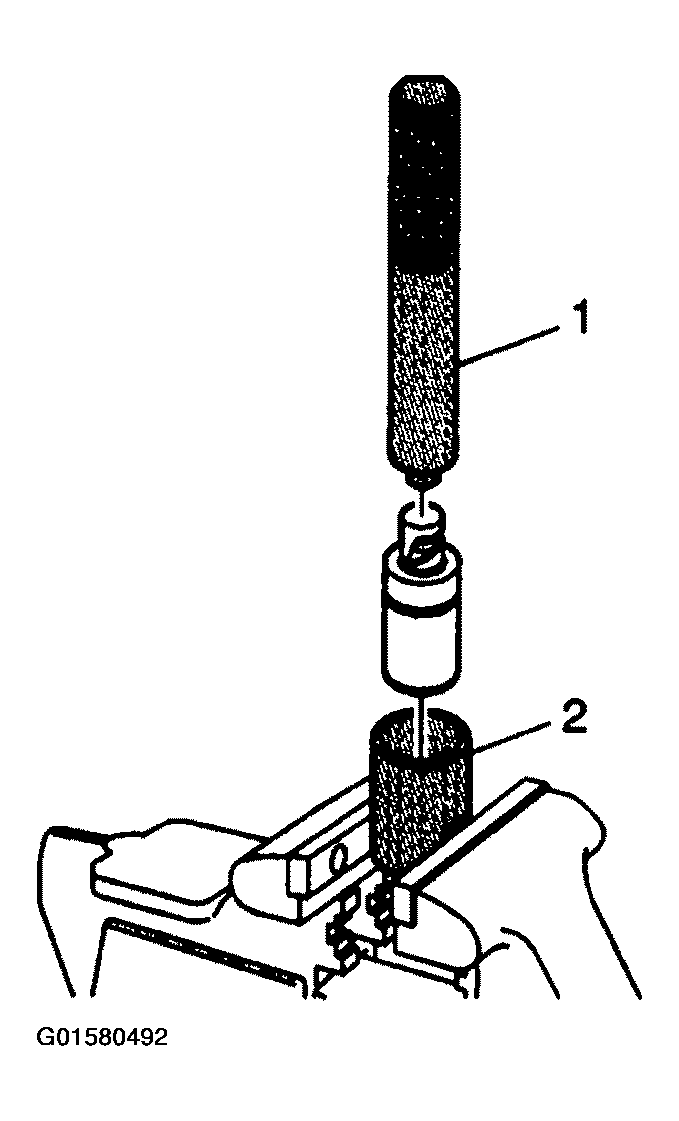

2. 24.2. Install the J 45027-2 (2) into a vise.
3. 24.3. Install the notch end of the piston assembly into the J 45027-2 (2).
4. 24.4. Using the J 45027-1 (1), turn the ratchet cylinder into the piston.
Courtesy of GENERAL MOTORS CORP.
Inspect the bore of the tensioner body for dirt, debris, and damage. If any damage appears, replace the tensioner. Clean dirt or debris out with a lint free cloth.
Install the compressed piston assembly back into the timing chain tensioner body until it stops at the bottom of the bore. Do not compress the piston assembly against the bottom of the bore. If the piston assembly is compressed against the bottom of the bore, it will activate the tensioner, which will then need to be reset again.
At this point the tensioner should measure approximately 72 mm (2.83 in) (a) from end to end. If the tensioner does not read 72 mm (2.83 in) (a) from end to end repeat steps 26.1 and 26.4.

Courtesy of GENERAL MOTORS CORP.
Inspect to ensure all dirt and debris is removed from the timing chain tensioner threaded hole in the cylinder head.

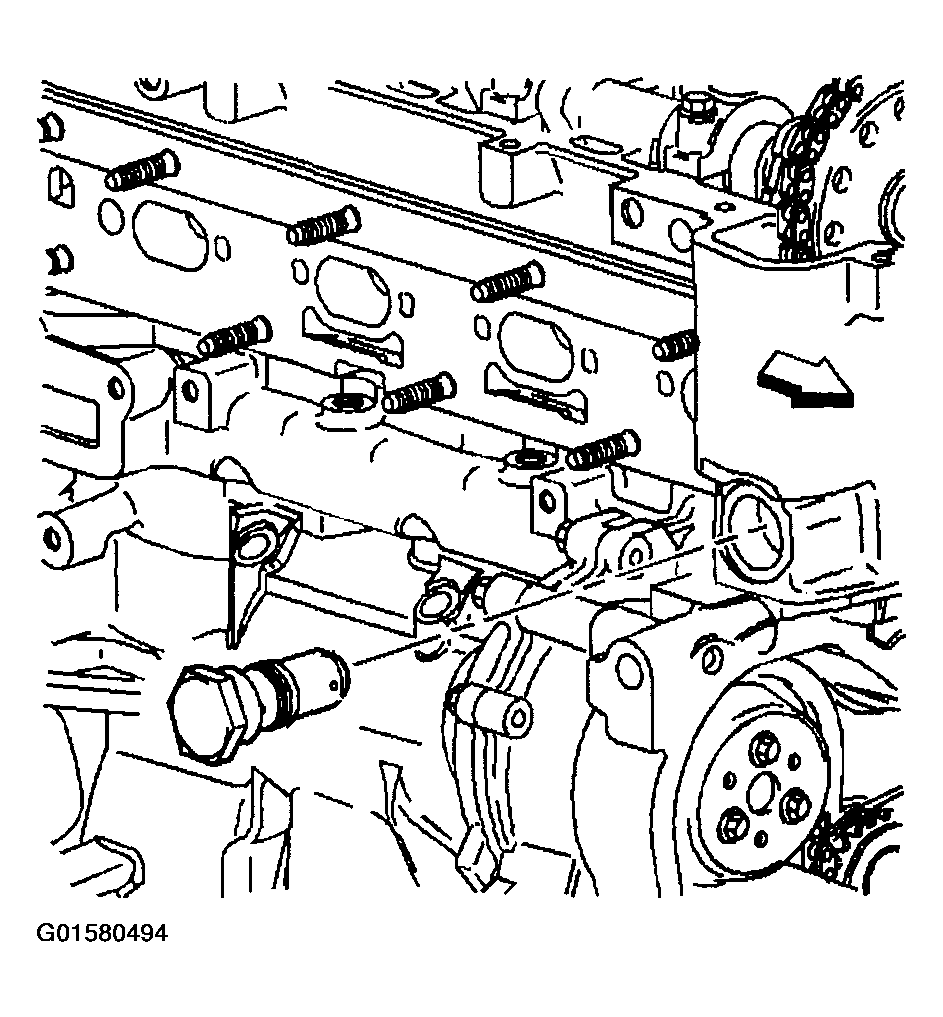

Install the new timing chain tensioner assembly.
Tighten

Tighten the timing chain tensioner to 75 N.m (55 lb ft).
The timing chain tensioner is released by compressing it 2 mm (.079 in) which will release the locking mechanism in the ratchet. To release the timing chain tensioner, use a suitable tool with a rubber tip on the end. Feed the tool down through the cam drive chest to rest on the cam chain. Then give a sharp jolt diagonally downwards to release the tensioner.

Courtesy of GENERAL MOTORS CORP.

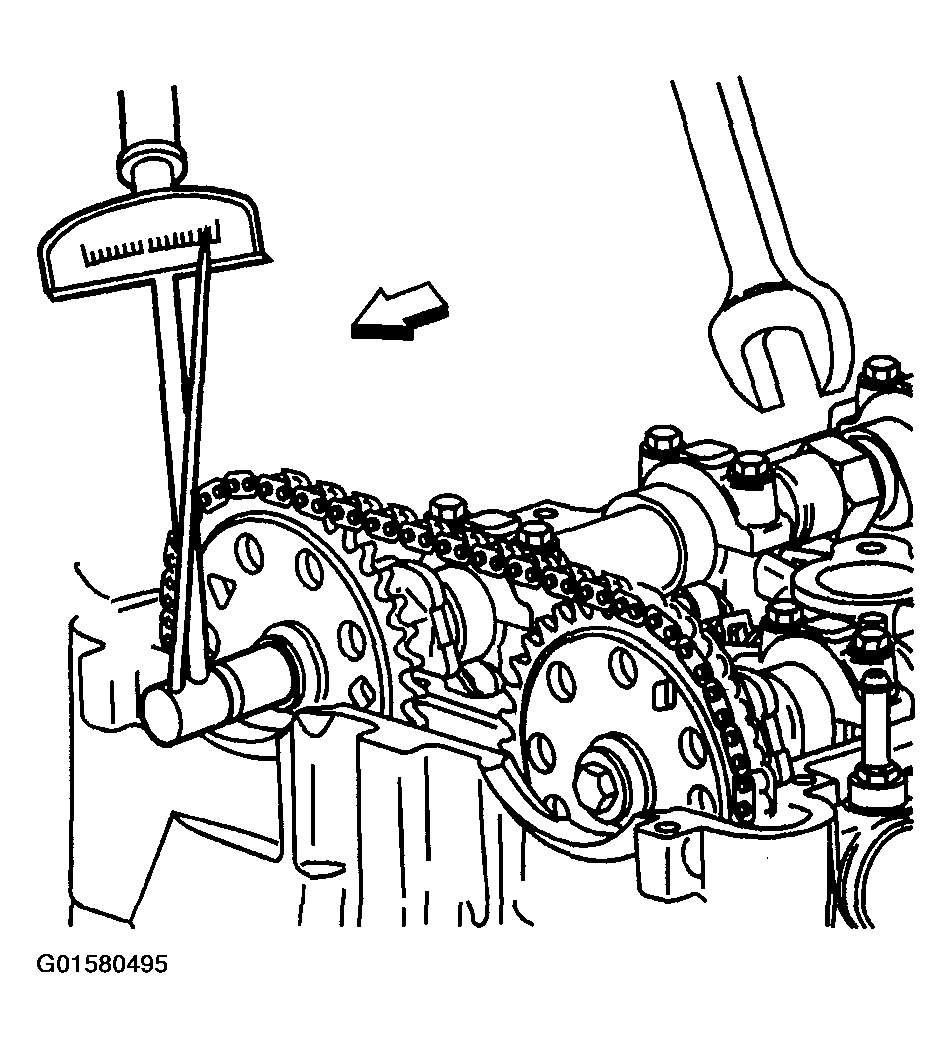

Use a 24 mm wrench to hold the camshaft.
Tighten

Tighten the NEW camshaft bolts to 85 N.m (63 lb ft) plus 30 degrees.

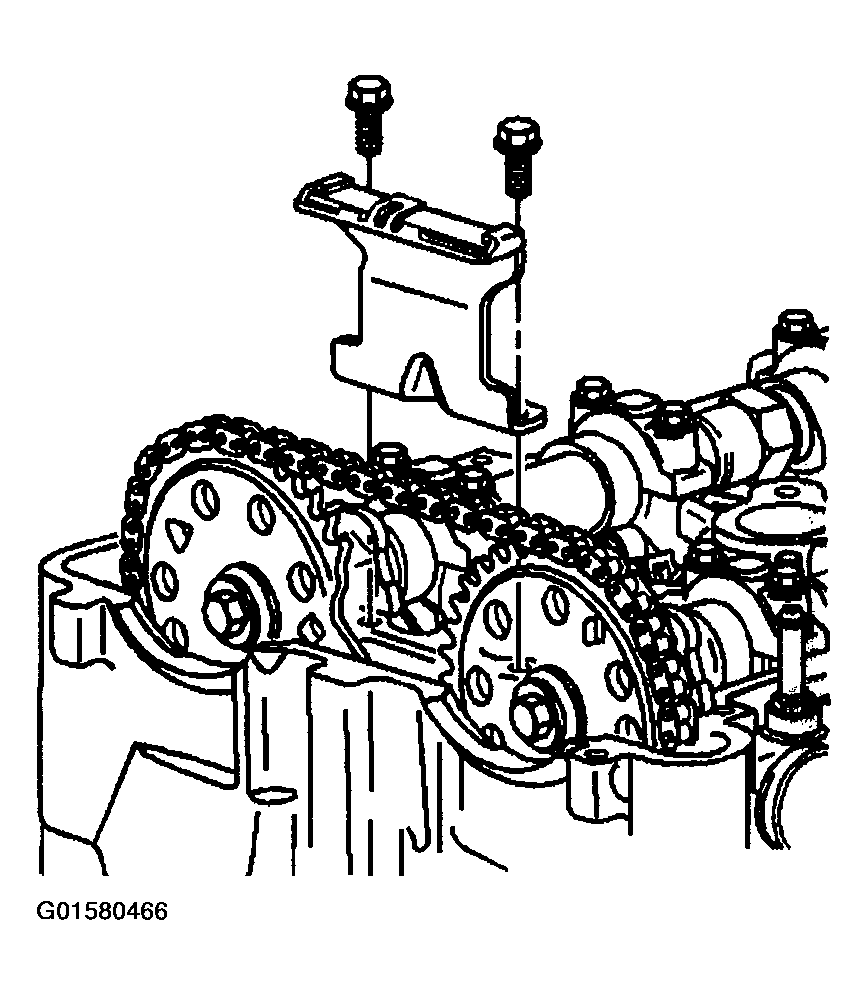

Install the upper timing chain guide.
Tighten

Tighten the upper chain guide bolts bolts to 10 N.m (89 lb in).

Courtesy of GENERAL MOTORS CORP.
Install the camshaft cover. Refer to Camshaft Cover Replacement .
Raise the vehicle.
Install the engine front cover. Refer to Engine Front Cover Replacement .
Lower the vehicle.
Connect negative battery cable.
