Water Pump Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine coolant temperature sensor.

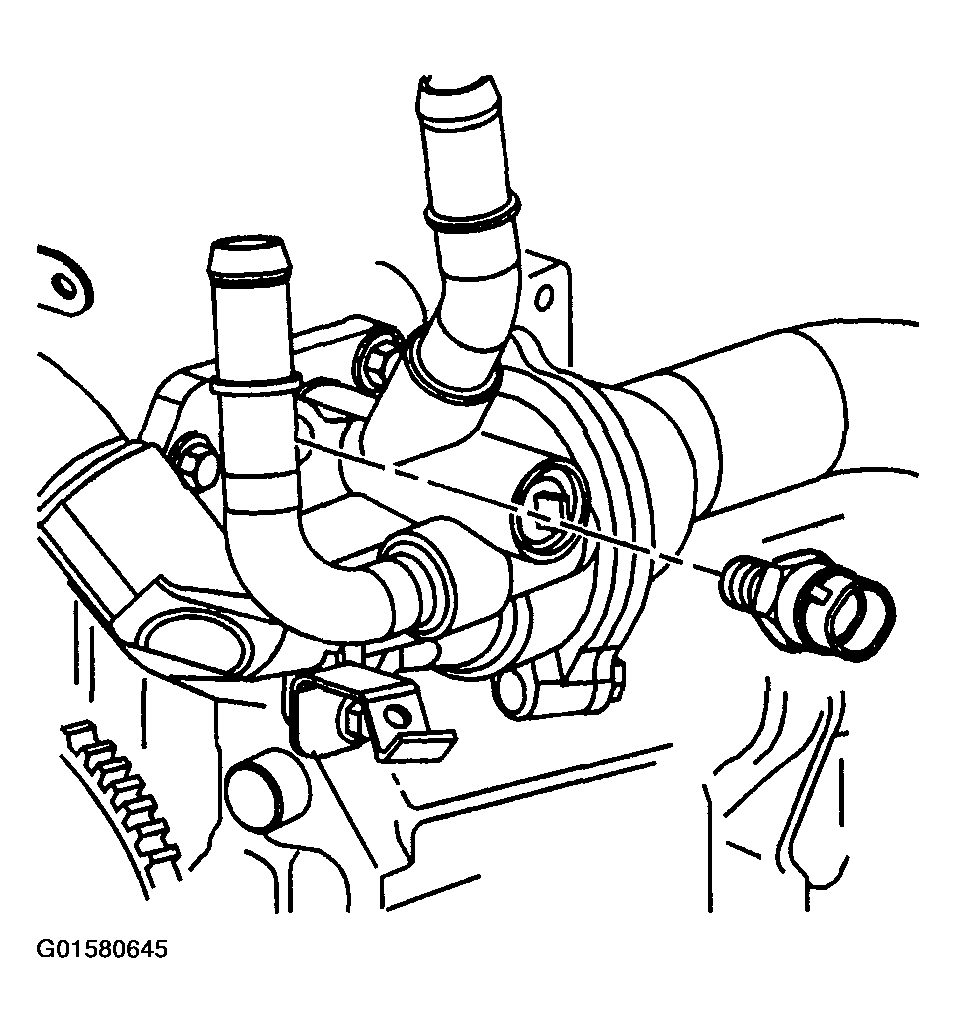

    Fig 1: Removing Engine Coolant Temperature Sensor
    G01580645Courtesy of GENERAL MOTORS CORP.
  2. Remove the water pipe support bracket and bolts.

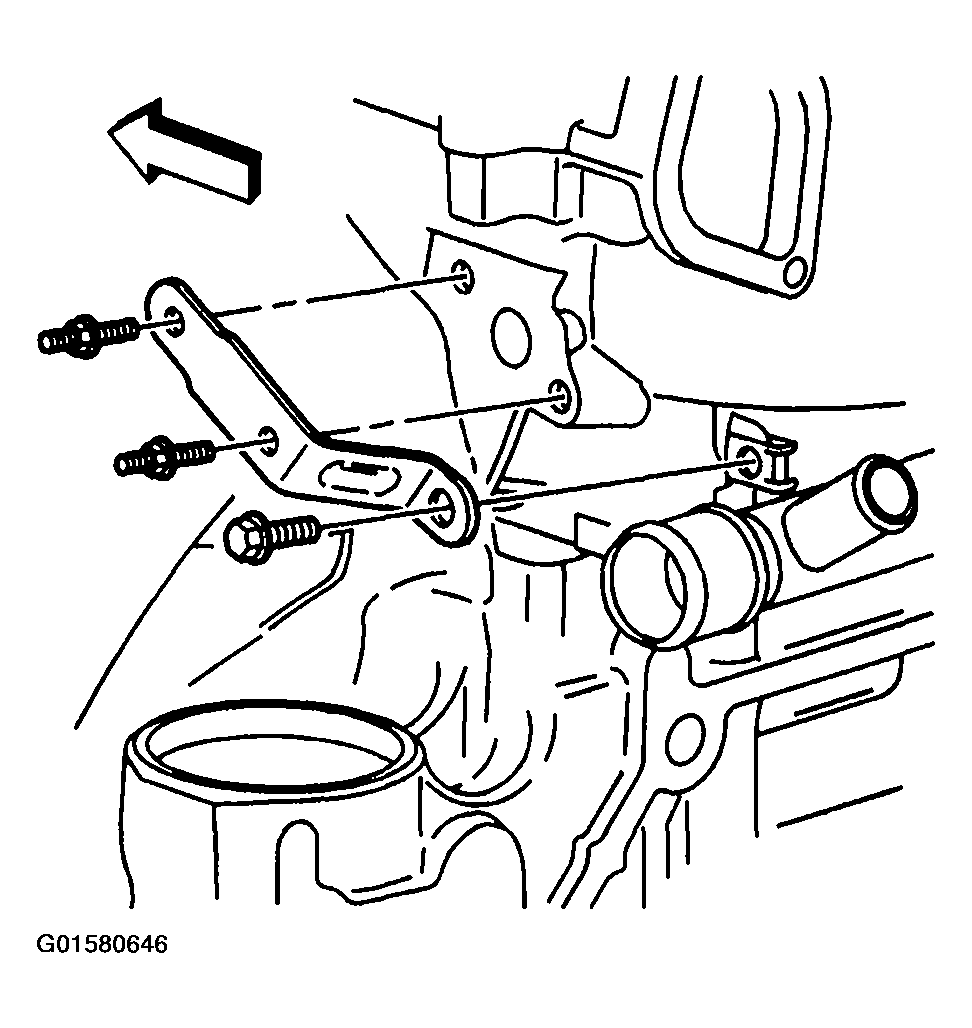

    Fig 2: Removing Water Pipe Support Bracket & Bolts
    G01580646Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat and water feed pipe retaining bolts.

    Important:  Twist the water feed pipe while pulling to remove it from the water pump cover.

  4. Remove the thermostat housing and water feed pipe from the water pump cover.

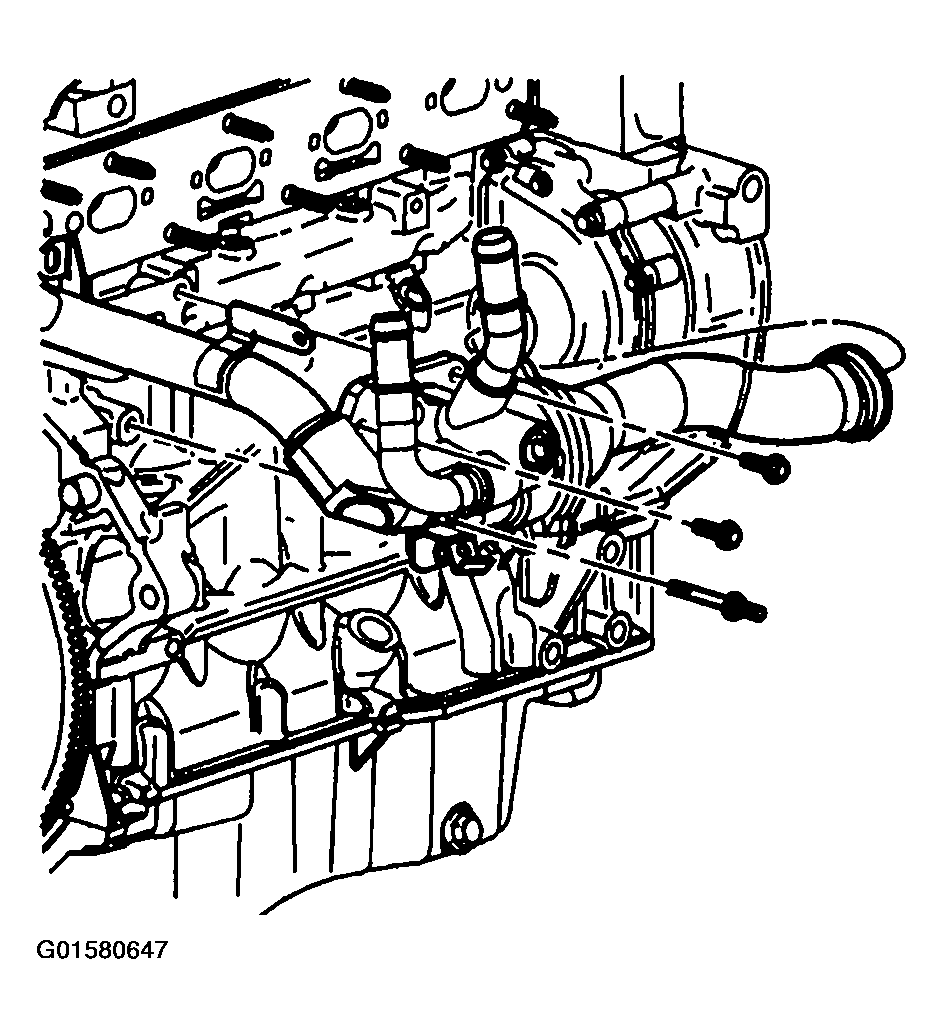

    Fig 3: Removing Thermostat Housing & Water Feed Pipe From Water Pump Cover
    G01580647Courtesy of GENERAL MOTORS CORP.
  5. Remove the water pump retaining bolts. Be sure to remove the bolt that goes through the front of the engine block.
  6. Remove the water pump assembly.

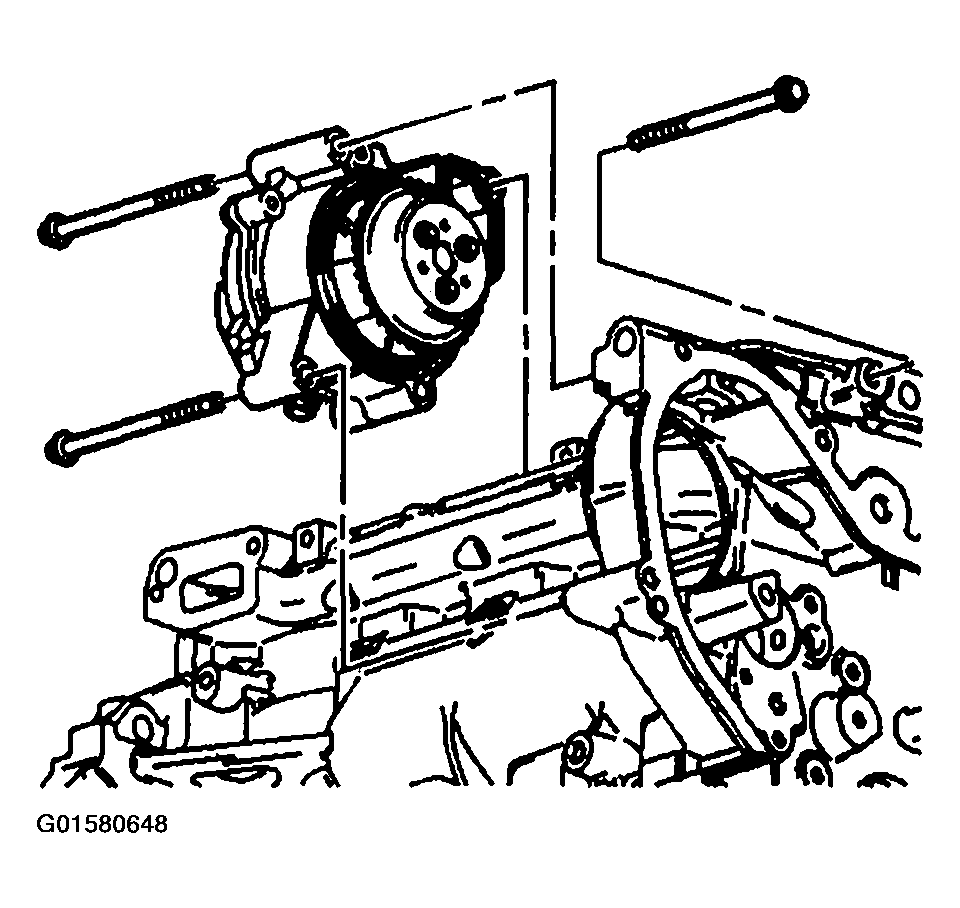

    Fig 4: Removing Water Pump
    G01580648Courtesy of GENERAL MOTORS CORP.
