Oil Pan Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan bolts.
  2. Remove the oil pan at pry points.

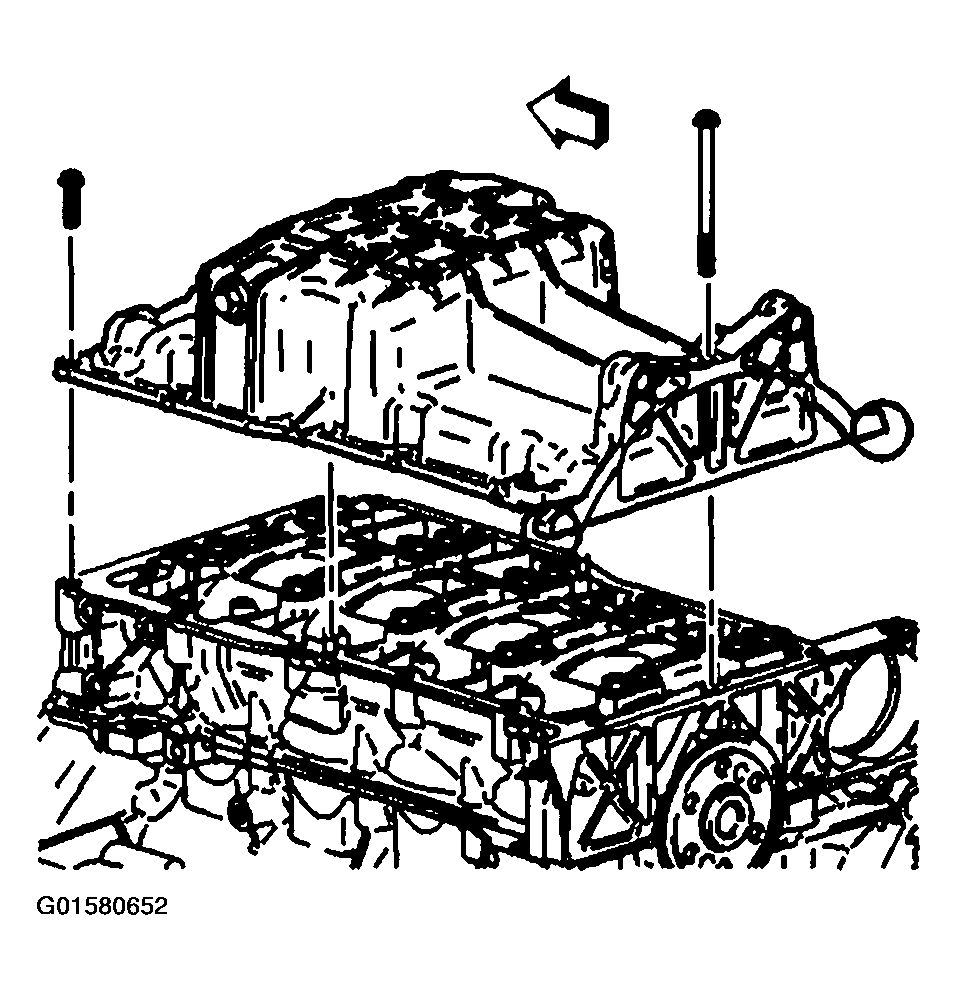

    Fig 1: Removing Oil Pan
    G01580652Courtesy of GENERAL MOTORS CORP.
