Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pan mating surface.
  2. Clean the oil pan. Remove all the sludge and the oil deposits.
  3. Inspect the threads for the engine oil drain plug.
  4. Inspect the oil pan for cracking near the pan rail and the transmission mounting points.
  5. Inspect the oil pan for cracking resulting from impact or flying road debris.

    Important:  The oil pan baffle and pickup screen are not removable from the oil pan.

  6. Inspect the oil pan baffle and pickup screen.
  7. Repair or replace the oil pan as necessary.

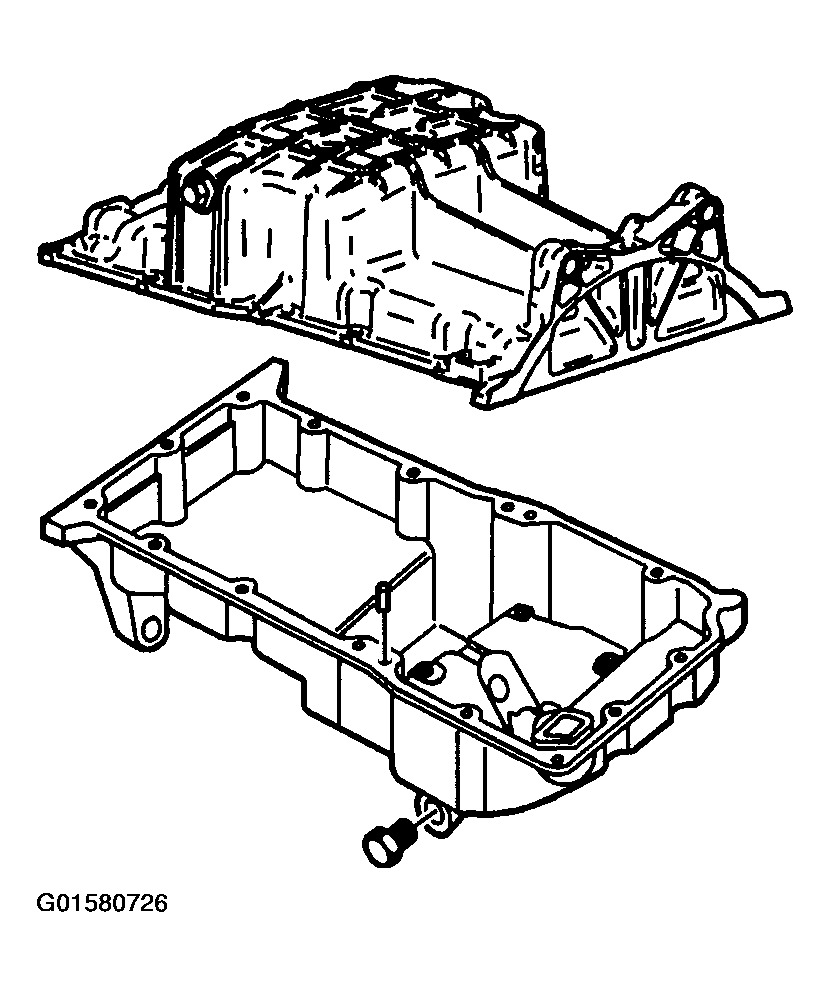

    Fig 1: Inspecting Oil Pan
    G01580726Courtesy of GENERAL MOTORS CORP.
