Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove knock sensor connector from the oil level indicator tube.
  2. Remove the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bracket to the intake manifold bolt.
  4. Remove the oil level indicator and the oil level indicator tube from the oil pan.

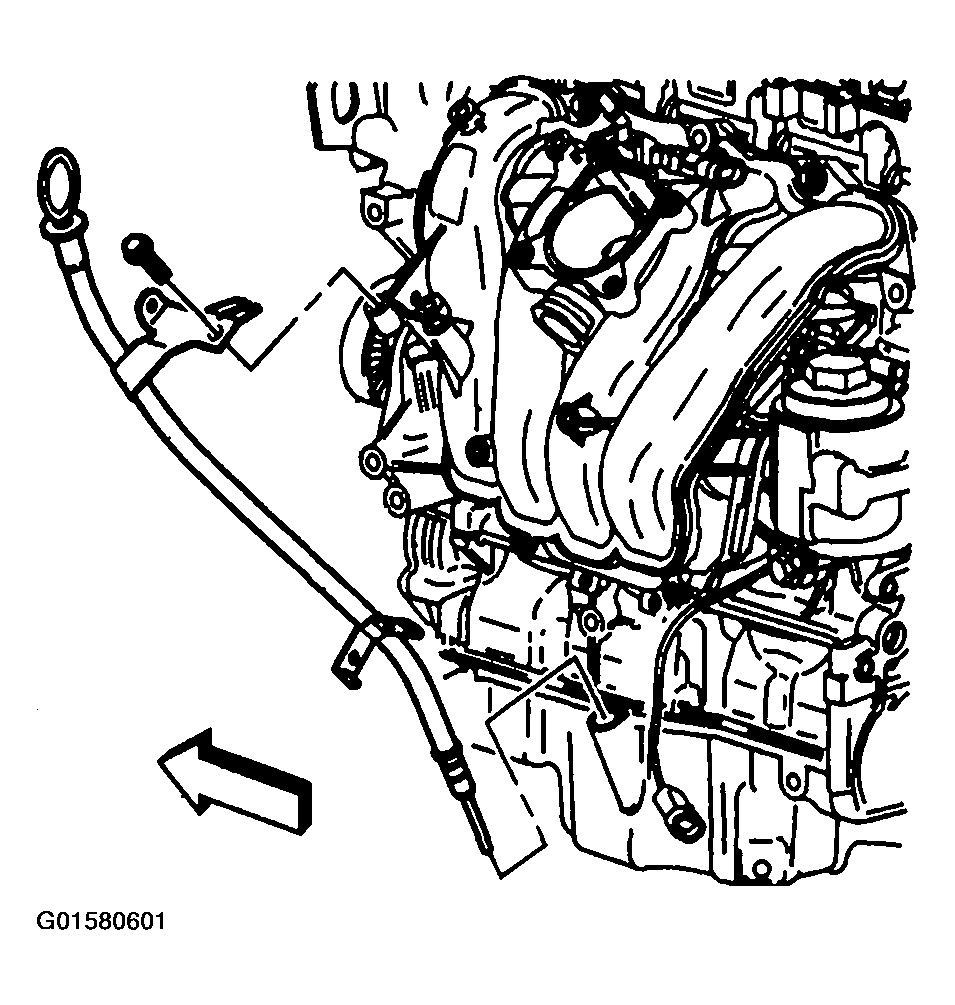

    Fig 1: Removing Oil Level Indicator & Tube
    G01580601Courtesy of GENERAL MOTORS CORP.
