Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the oil level indicator tube O-ring with GM P/N United States 12345501, GM P/N Canada 992704.
  2. Install the oil level indicator and the oil level indicator tube into the oil pan.
  3. Install the oil level indicator tube bracket to the intake manifold bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  4. Install the electrical wiring harness to the oil level indicator tube.
  5. Install the knock sensor wiring clip into the oil level indicator tube.

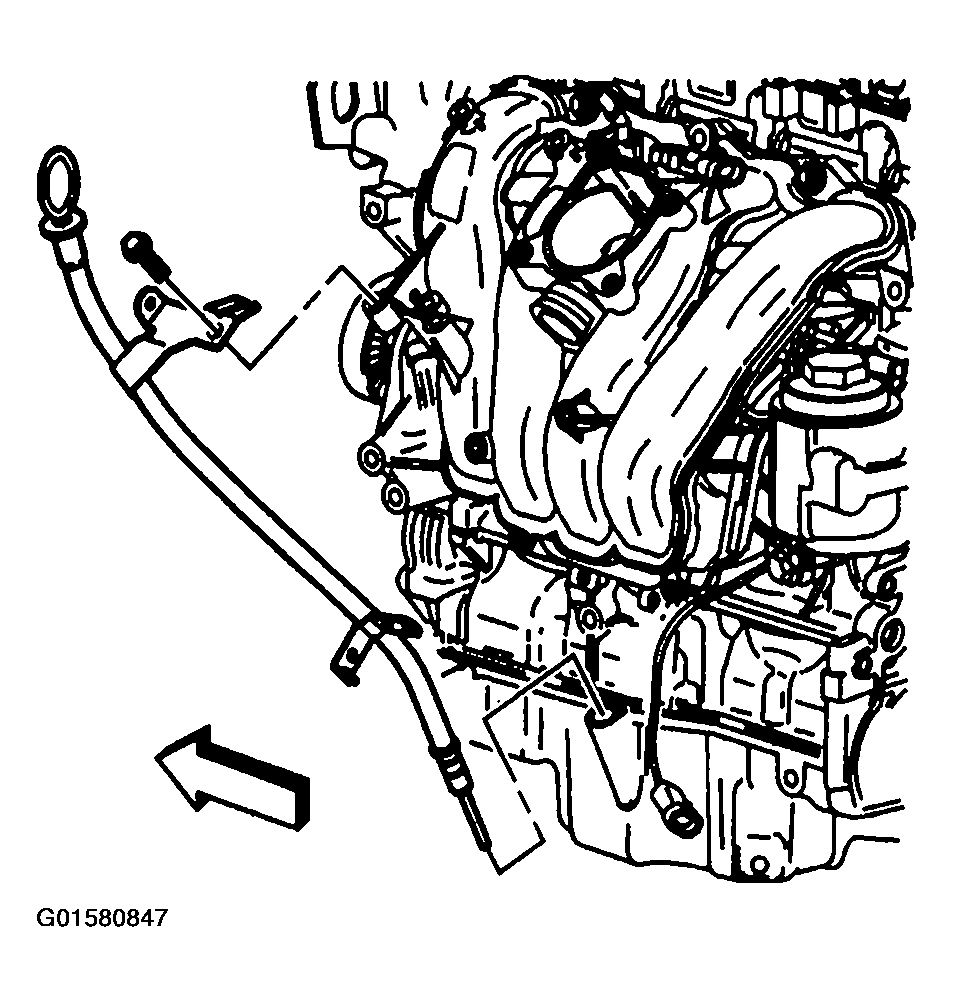

    Fig 1: Installing Oil Level Indicator & Oil Level Indicator Tube
    G01580847Courtesy of GENERAL MOTORS CORP.
