Lower Crankcase Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor. Inspect the position sensor for damage. Replace if necessary.
  2. Remove the bedplate perimeter bolts.
  3. Remove and discard the crankshaft bearing bolts.
  4. Using the pry-points and an appropriate prying tool, gently separate the upper and lower crankcase.

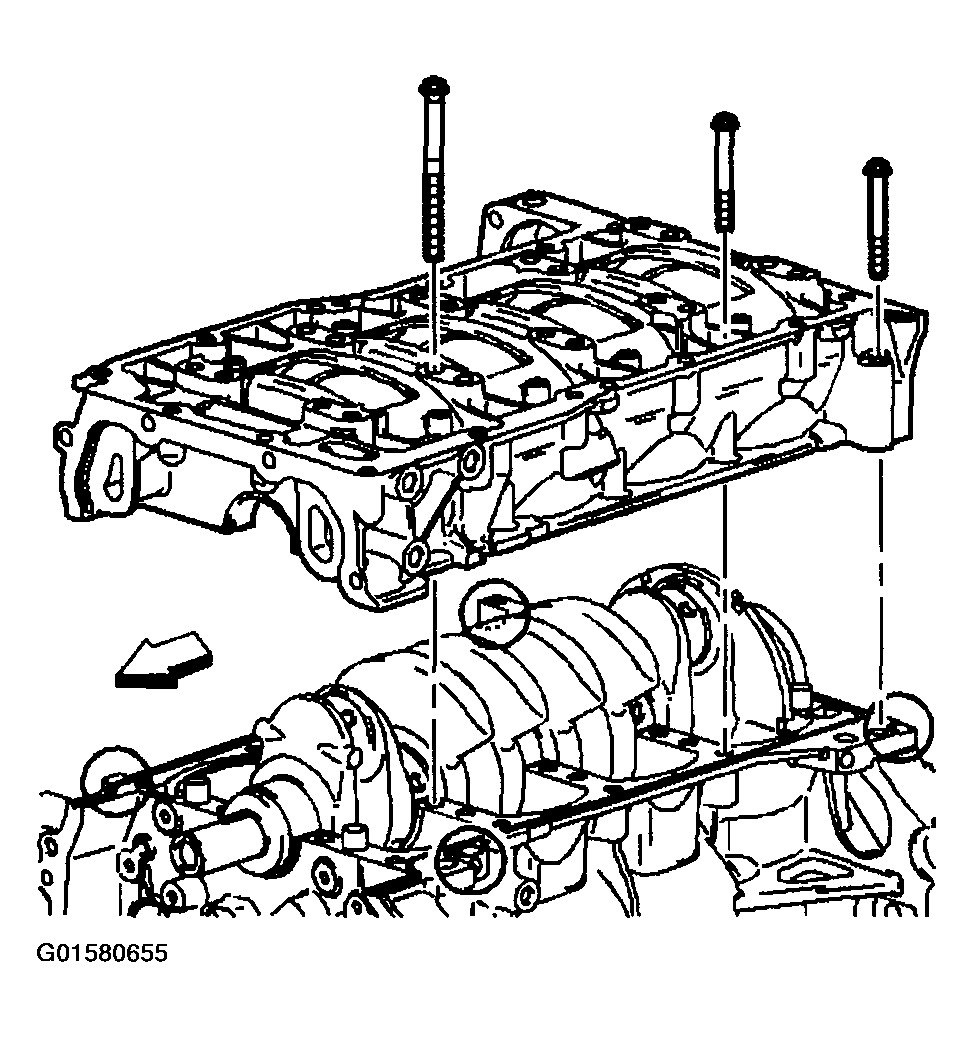

    Fig 1: Removing Bedplate
    G01580655Courtesy of GENERAL MOTORS CORP.
