Exhaust Camshaft, Follower, and Adjuster Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.

  1. Mark bearing caps to ensure they are installed in the same position.
  2. Remove the exhaust camshaft bearing cap bolts.
  3. Remove the camshaft bearing caps ensuring they are marked and refitted in same position on assembly.
  4. Remove the exhaust camshaft.

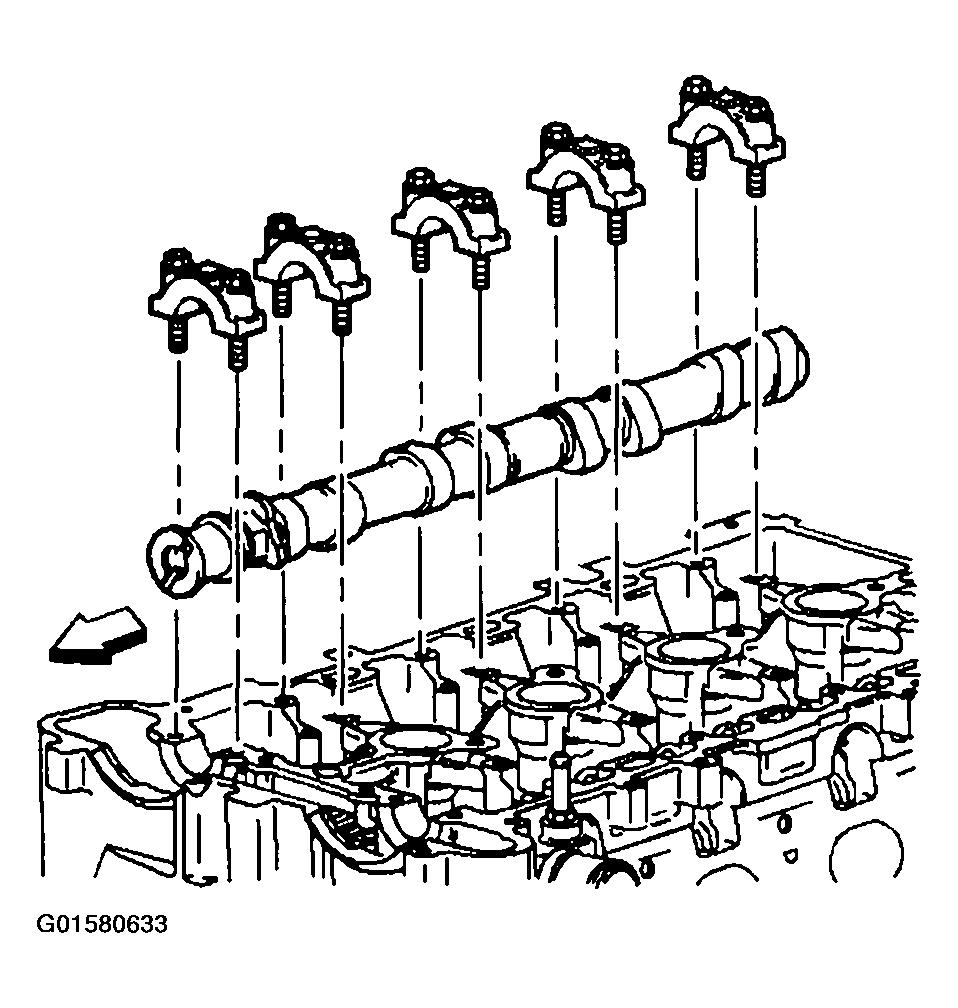

    Fig 1: Removing Exhaust Camshaft
    G01580633Courtesy of GENERAL MOTORS CORP.

    Important:  Keep all of the roller finger followers and hydraulic element adjusters in order so that they can be reinstalled in their respective locations.

  5. Remove the exhaust camshaft roller finger followers.

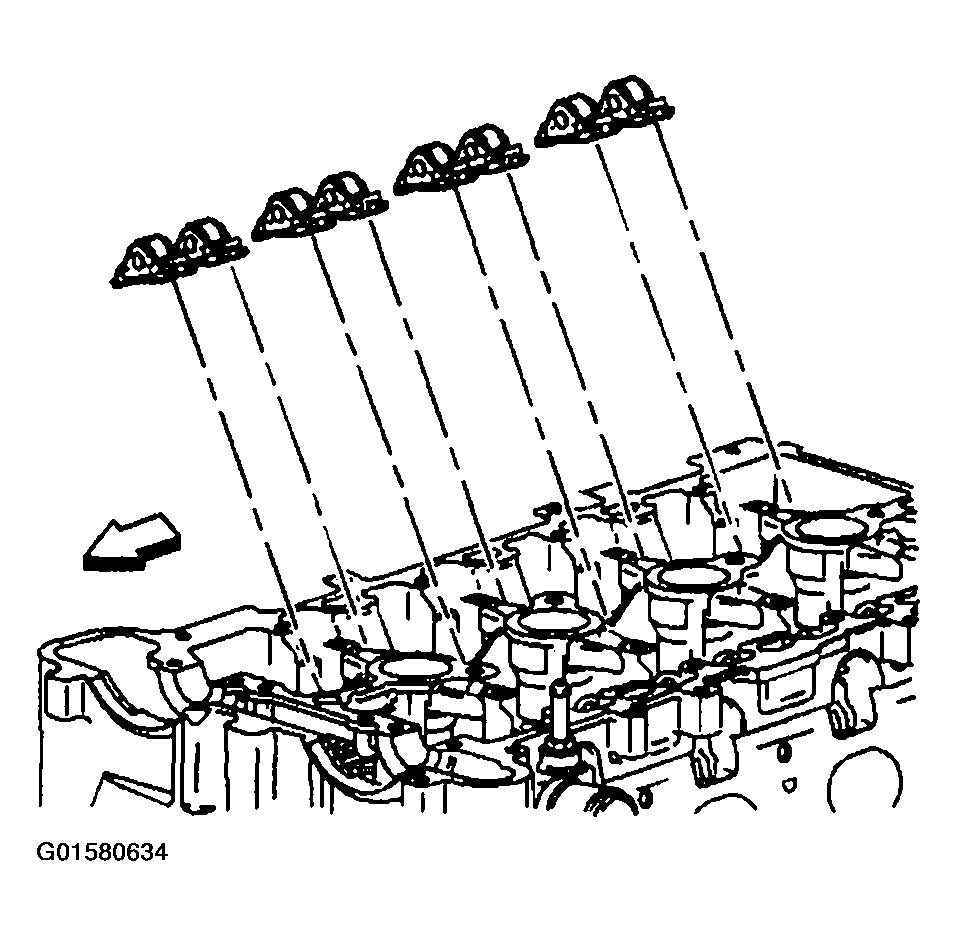

    Fig 2: Removing Exhaust Camshaft Roller Finger Followers
    G01580634Courtesy of GENERAL MOTORS CORP.
  6. Remove the hydraulic element adjusters.

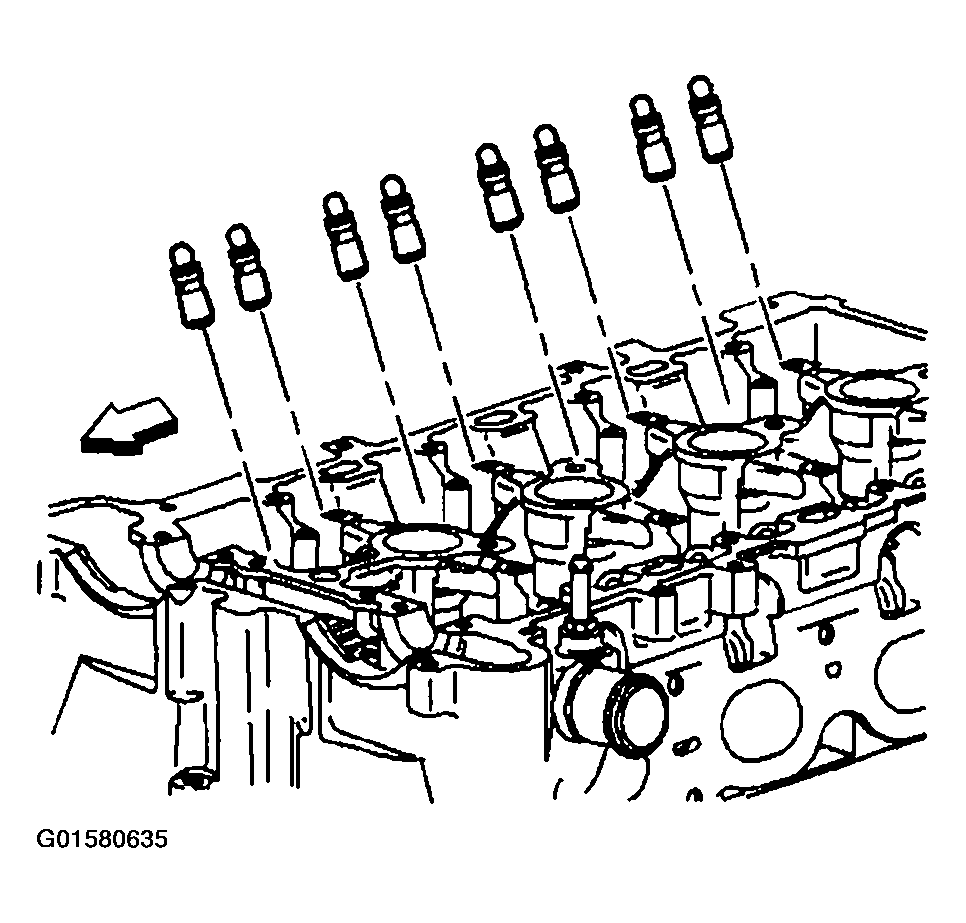

    Fig 3: Removing Hydraulic Element Adjusters
    G01580635Courtesy of GENERAL MOTORS CORP.
