Engine Front Cover and Oil Pump Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt tensioner.

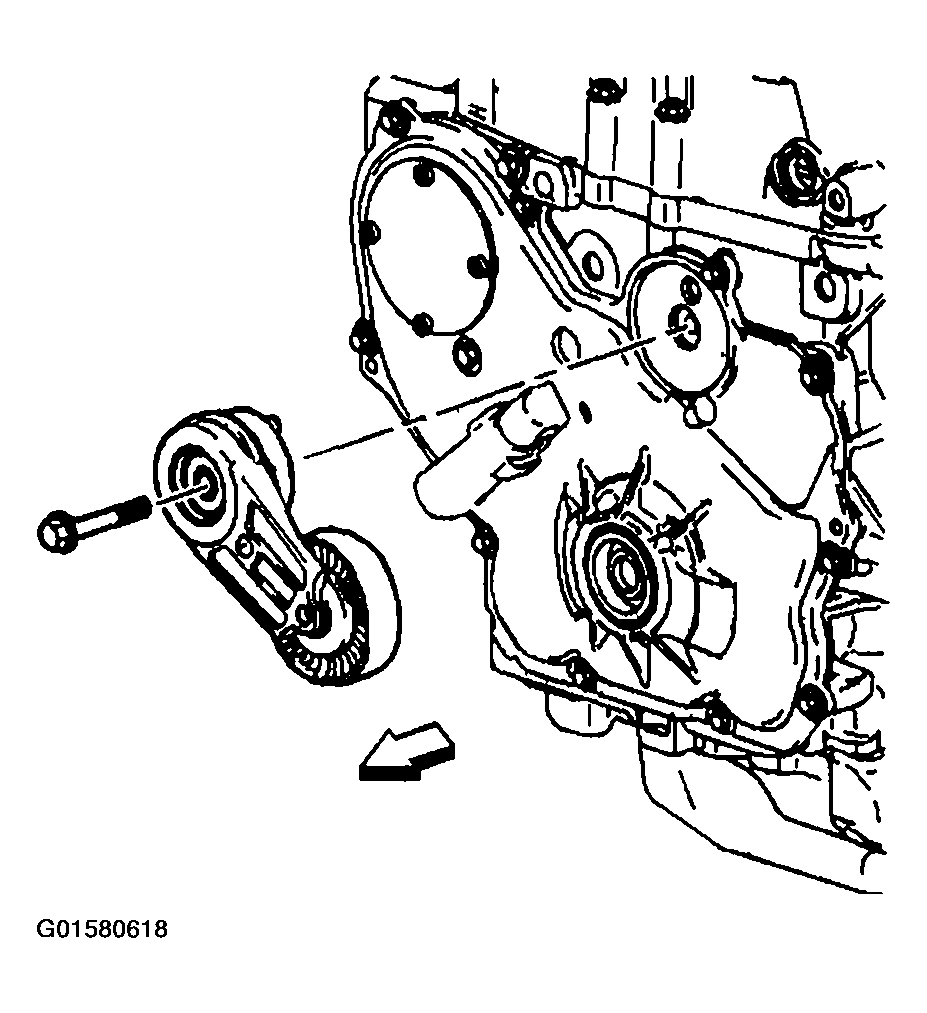

    Fig 1: Removing Accessory Drive Belt Tensioner
    G01580618Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine front cover bolts.

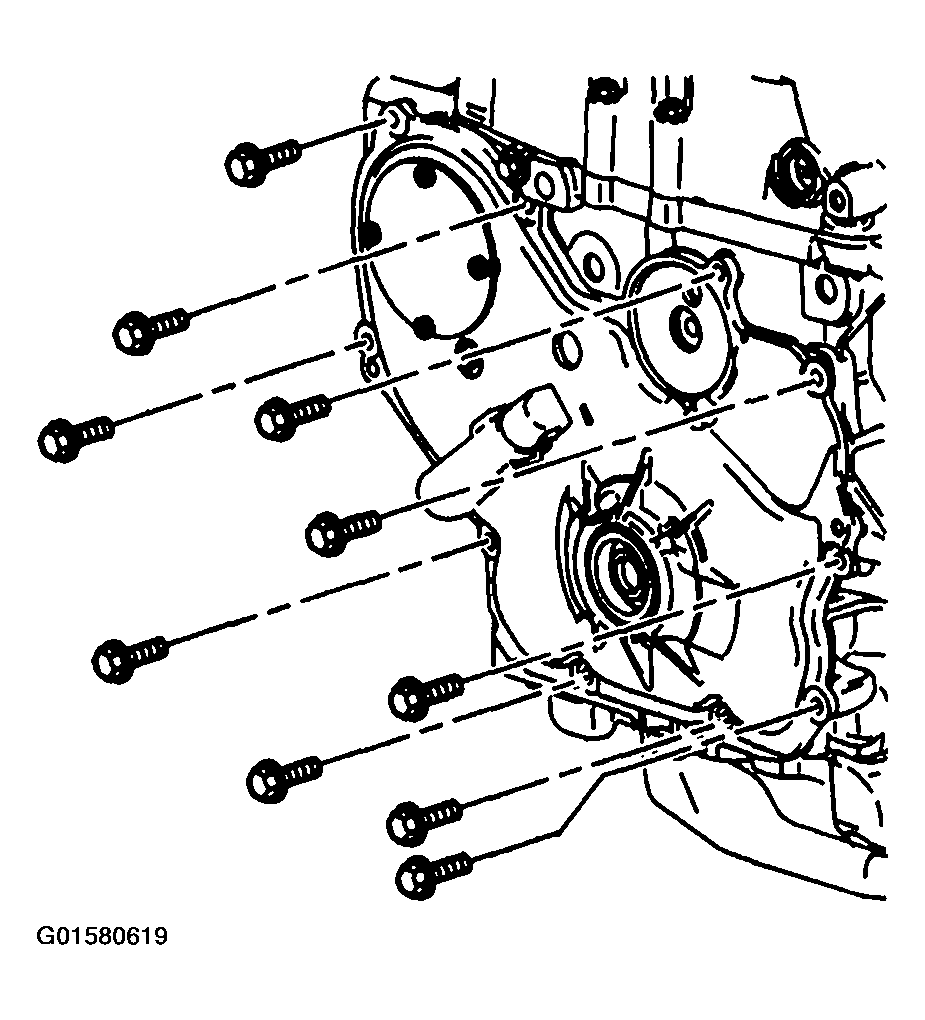

    Fig 2: Removing Engine Front Cover Bolts
    G01580619Courtesy of GENERAL MOTORS CORP.
  3. Remove the long water pump bolt.
  4. Remove the engine front cover and gaskets.
  5. Remove the crankshaft front cover oil seal with an appropriate tool.

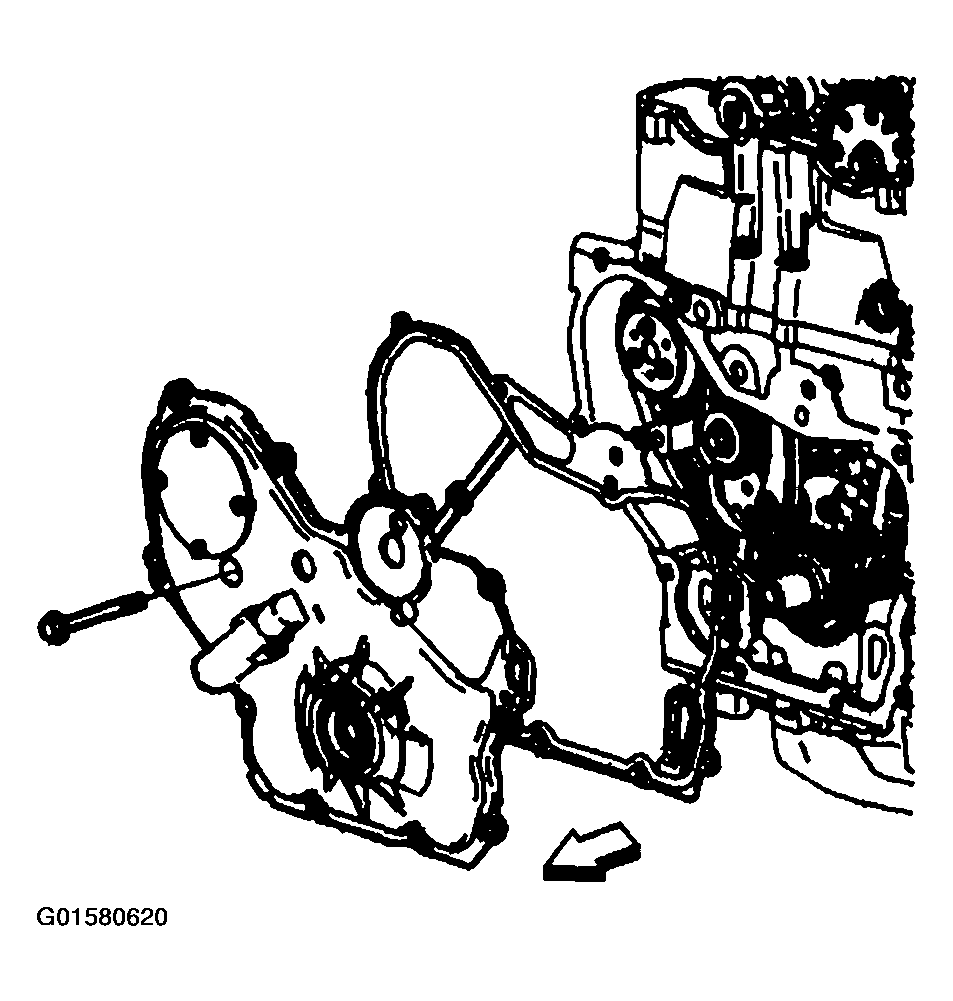

    Fig 3: Removing Engine Front Cover & Gaskets
    G01580620Courtesy of GENERAL MOTORS CORP.
