Engine Front Cover and Oil Pump Installation

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover with a new gasket.

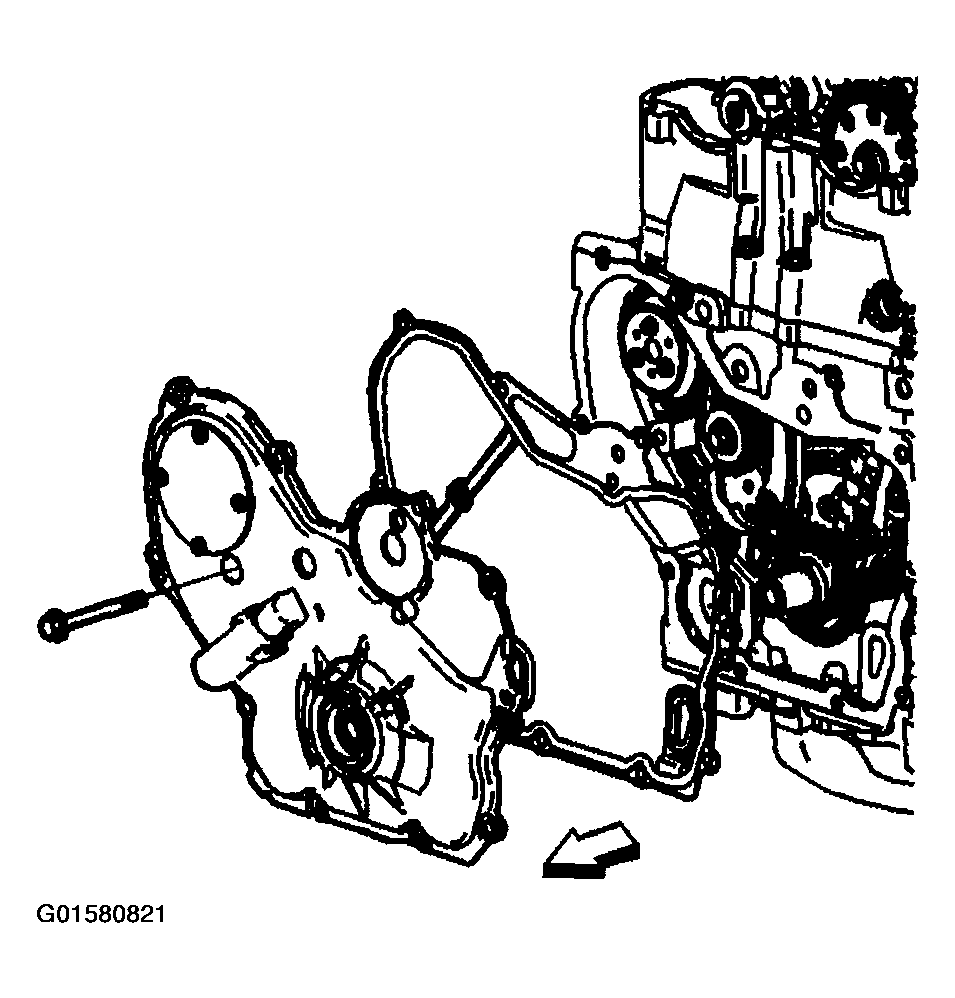

    Fig 1: Installing Engine Front Cover & Gasket
    G01580821Courtesy of GENERAL MOTORS CORP.
  2. Install the long water pump bolt.

    Tighten

    Tighten the water pump bolt to 25 N.m (18 lb ft).

  3. Install the engine front cover bolts.

    Tighten

    Tighten the engine front cover bolts to 25 N.m (18 lb ft).

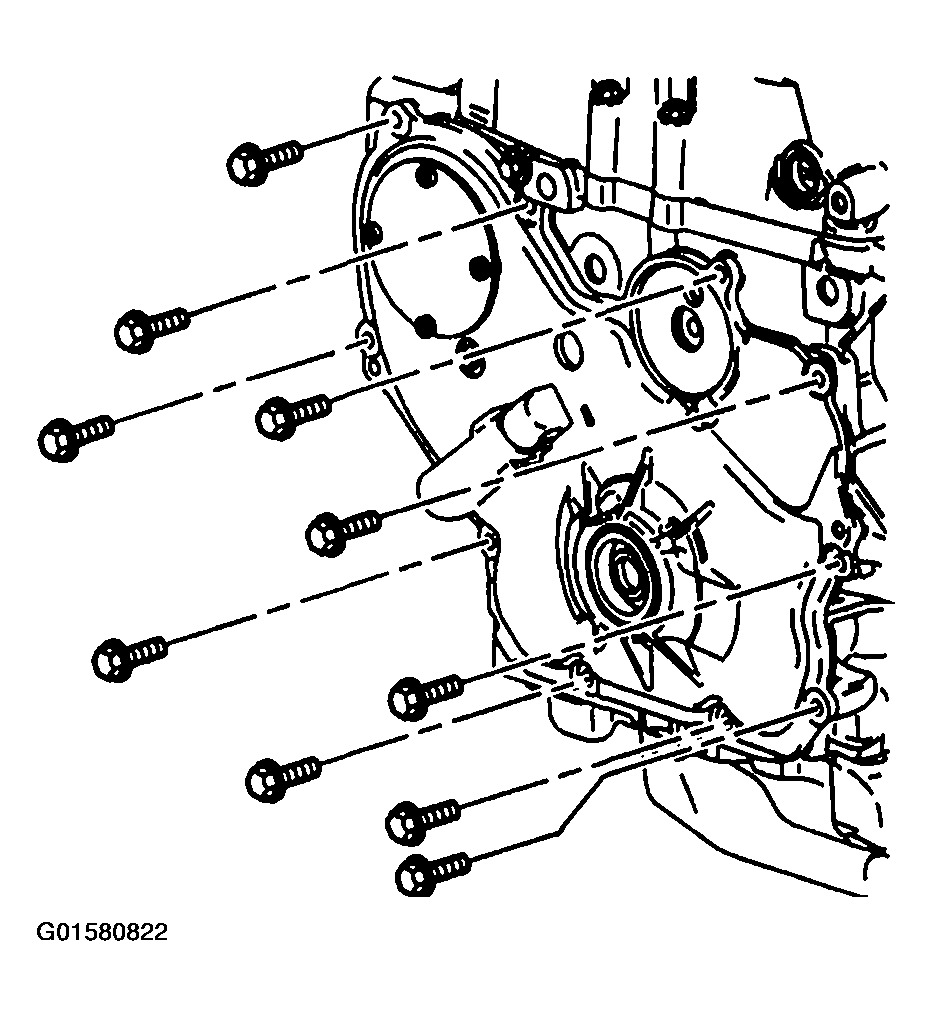

    Fig 2: Installing Engine Front Cover Bolts
    G01580822Courtesy of GENERAL MOTORS CORP.
  4. Install the accessory drive belt tensioner.

    Tighten

    Tighten the accessory drive belt tensioner bolt to 45 N.m (33 lb ft).

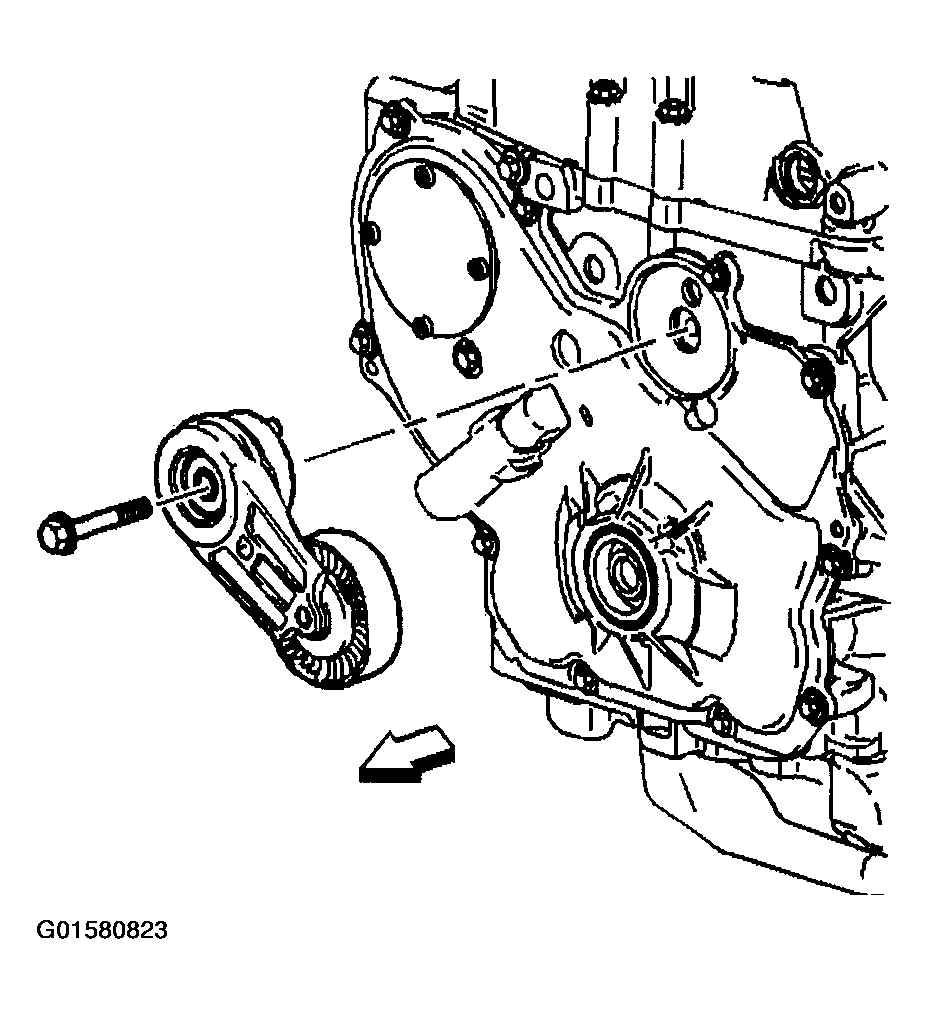

    Fig 3: Installing Accessory Drive Belt Tensioner
    G01580823Courtesy of GENERAL MOTORS CORP.
