Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the new bolts.
  3. Holding the crankshaft damper with the J 38122-A,  tighten the bolts evenly.

    Tighten

    Using the J 36660-A,  tighten the bolts to 53 N.m (39 lb ft), plus 25 degrees.

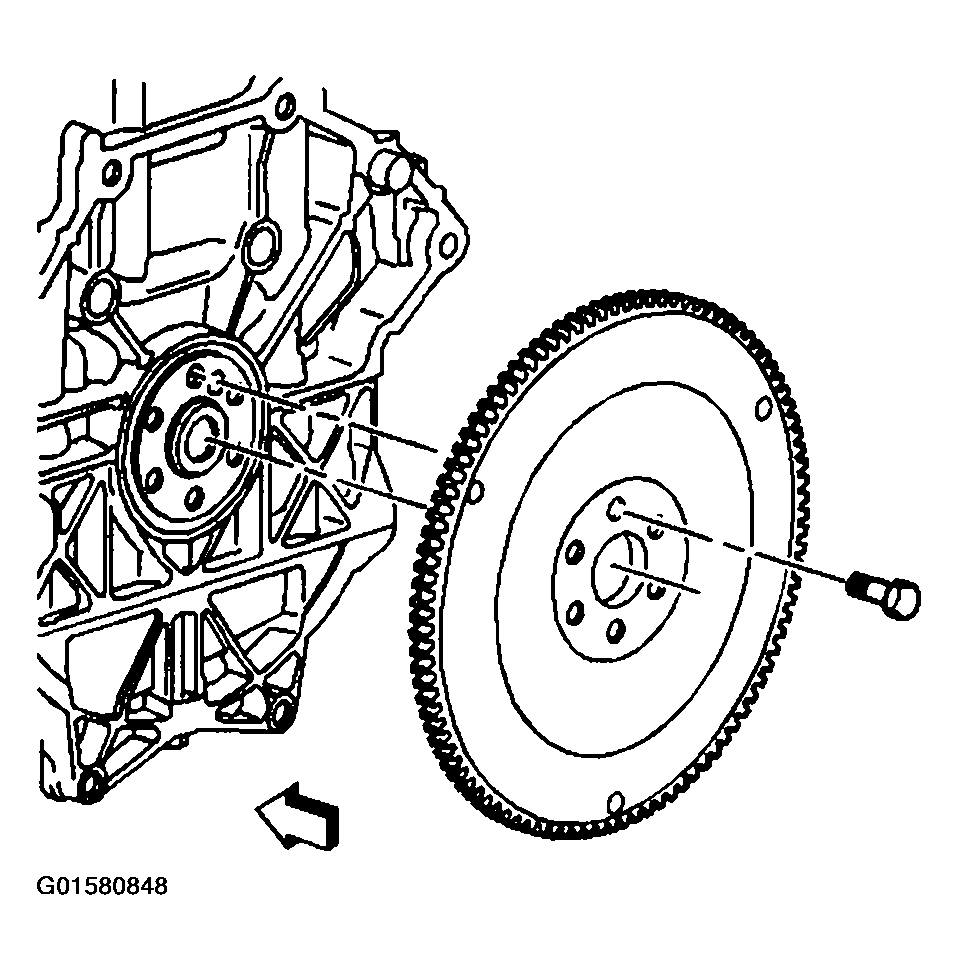

    Fig 1: Installing Flywheel
    G01580848Courtesy of GENERAL MOTORS CORP.
