Engine Flywheel Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the flywheel in solvent.
  2. Dry the flywheel with compressed air.
  3. Inspect the manual transmission flywheel for the following:
    • Damaged ring gear teeth
    • Loose or improperly positioned ring gear

      The ring gear has an interference fit onto the flywheel and should be positioned completely against the flange of the flywheel.

    • A scored, grooved or damaged friction surface

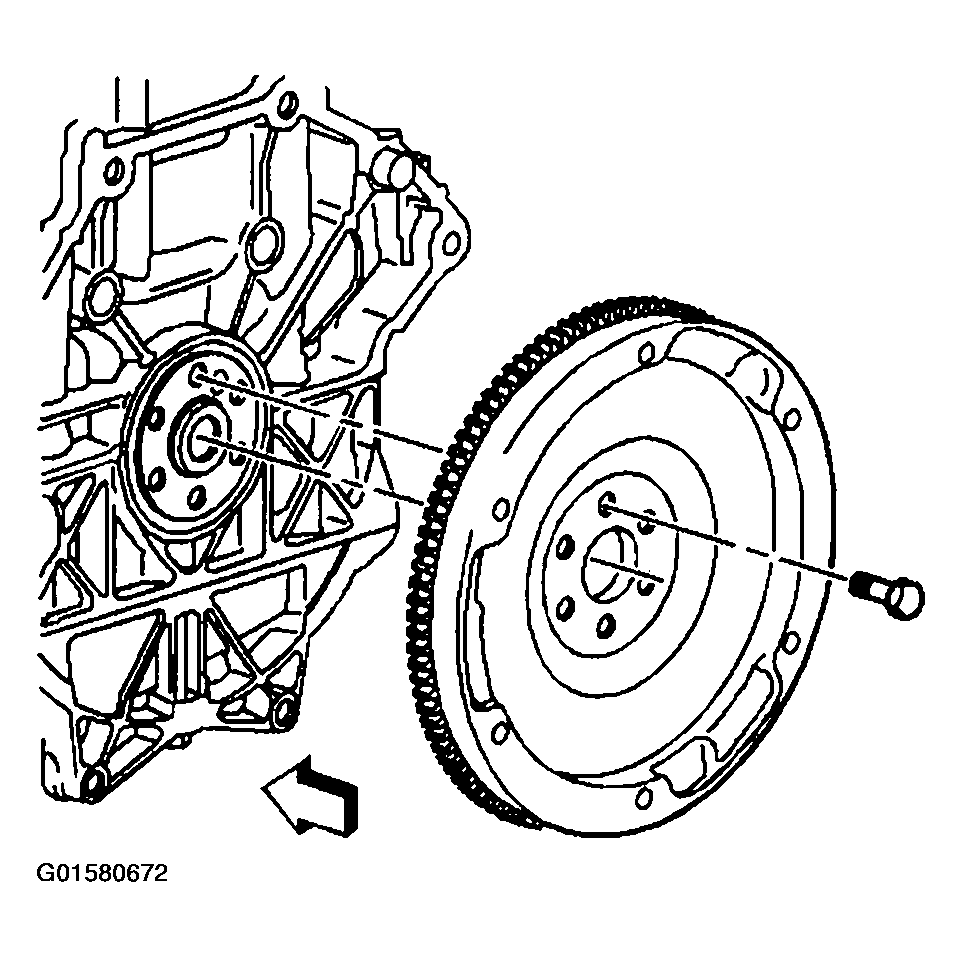

      Fig 1: Inspecting Flywheel (Manual Transmission)
      G01580672Courtesy of GENERAL MOTORS CORP.
  4. Inspect the automatic transmission flywheel for the following:
    • Damaged ring gear teeth
    • Stress cracks around the flywheel-to-crankshaft bolt hole locations
    • Weight saving holes
      Fig 2: Inspecting Flywheel (Automatic Transmission)
      G01580673Courtesy of GENERAL MOTORS CORP.
