Crankshaft and Bearings Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft from the block.
Remove the crankshaft rear oil seal from the block.

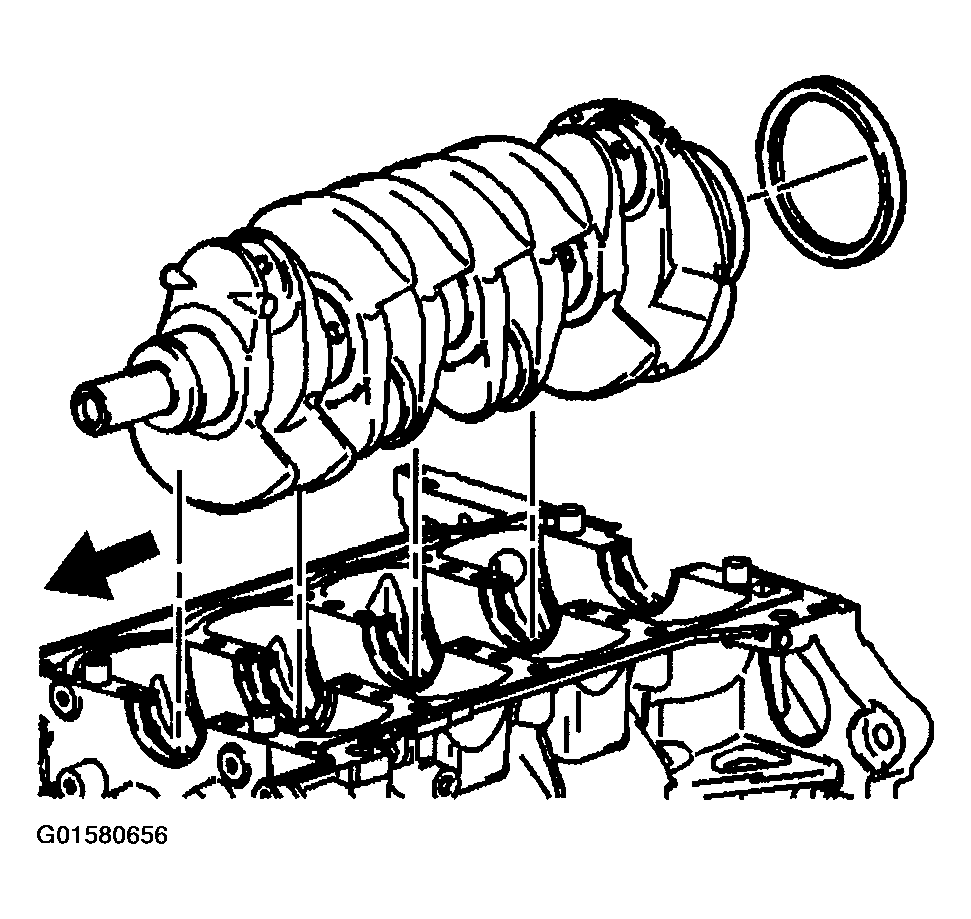

Fig 1: Removing Crankshaft
Courtesy of GENERAL MOTORS CORP.
Remove the bearing inserts from the block.

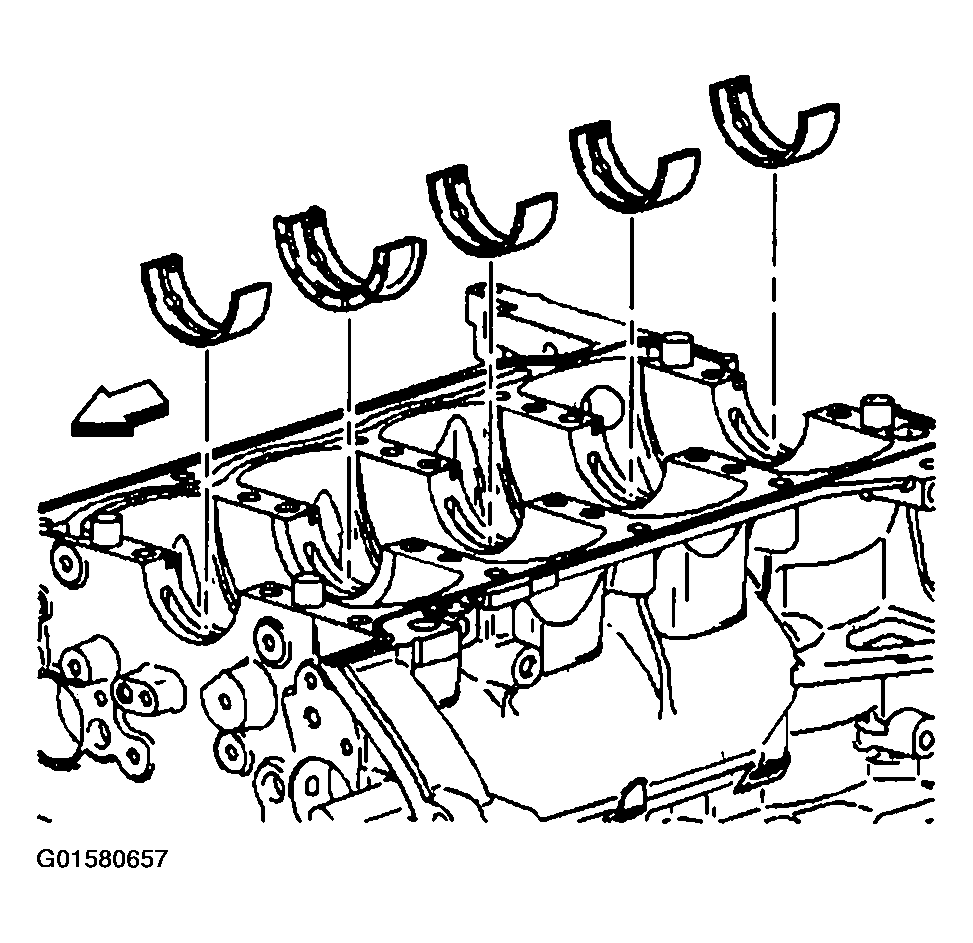

Fig 2: Removing Bearing Inserts From Block
Courtesy of GENERAL MOTORS CORP.
Remove the bearing inserts from the bed plate.

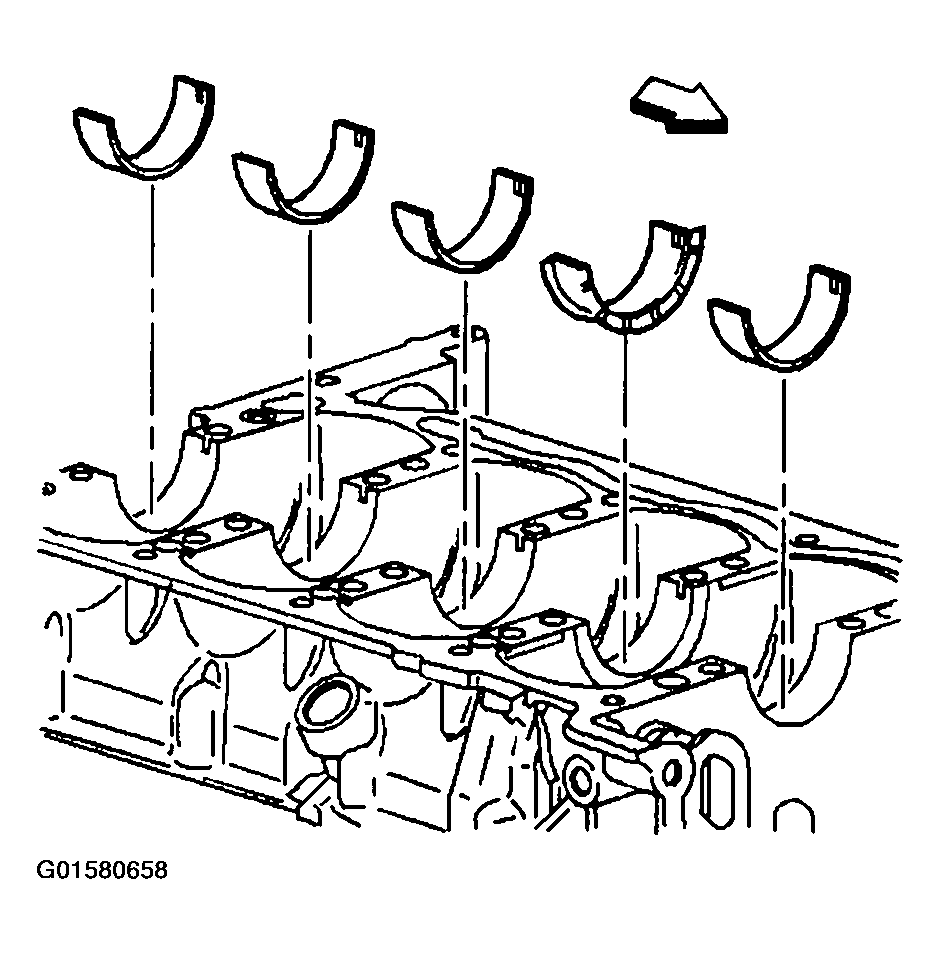

Fig 3: Removing Bearing Inserts From Bed Plate
Courtesy of GENERAL MOTORS CORP.
Clean the oil, sludge, and carbon.
Inspect the oil passages for obstructions.
Inspect the threads.
Inspect the bearing journals and the thrust surfaces for the following conditions:
- Cracks
- Chips
- Gouges
- Roughness
- Grooves
- Overheating (discoloration)
Inspect the corresponding bearing inserts for imbedded foreign material. If foreign material exists find the cause and repair it.
Important: Replace the crankshaft if cracks, severe gouges or burned spots are found. Slight roughness may be removed with a fine polishing cloth soaked in clean engine oil. Burrs may be removed with a fine oil stone.
Measure the crankshaft journals. Use a micrometer or dial indicator to measure the taper and runout. Note the result for the later selection of bearing inserts. If not within limits the crankshaft must be replaced.
Note the location of the main bearing high spots. If they are not in line, the crankshaft is bent and must be replaced.
