Tools Required
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- J 36660-A Torque Angle Meter
- J 8087 Cylinder Bore Checking Gauge
Important: If crankshaft bearing failure is due to other than normal wear, investigate the cause. Inspect the crankshaft or connecting rod bearing bores.
Inspect the connecting rod bearing bores or crankshaft main bearing bores using the following procedure.
- Tighten the bearing cap to specification using the J 36660-A.

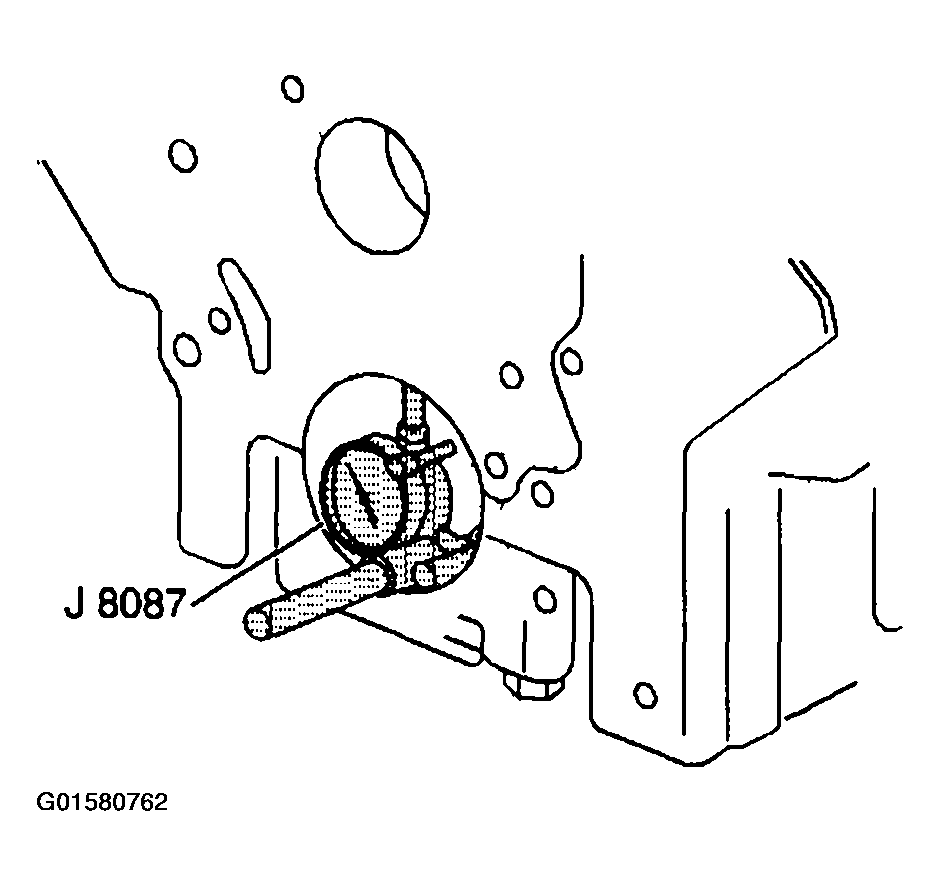

- Measure the bearing bore for taper and out-of-round using the J 8087.
- No taper or out-of-round should exist.
