Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

J 42067  Rear Main Seal Installer

  1. Remove excess sealer from seal recess.
  2. Lubricate the outside diameter of the new crankshaft seal with clean engine oil.
  3. Using the J 42067,  press the new crankshaft seal into the housing. The J 42067  also establishers the depth of the seal in the crankshaft seal bore.

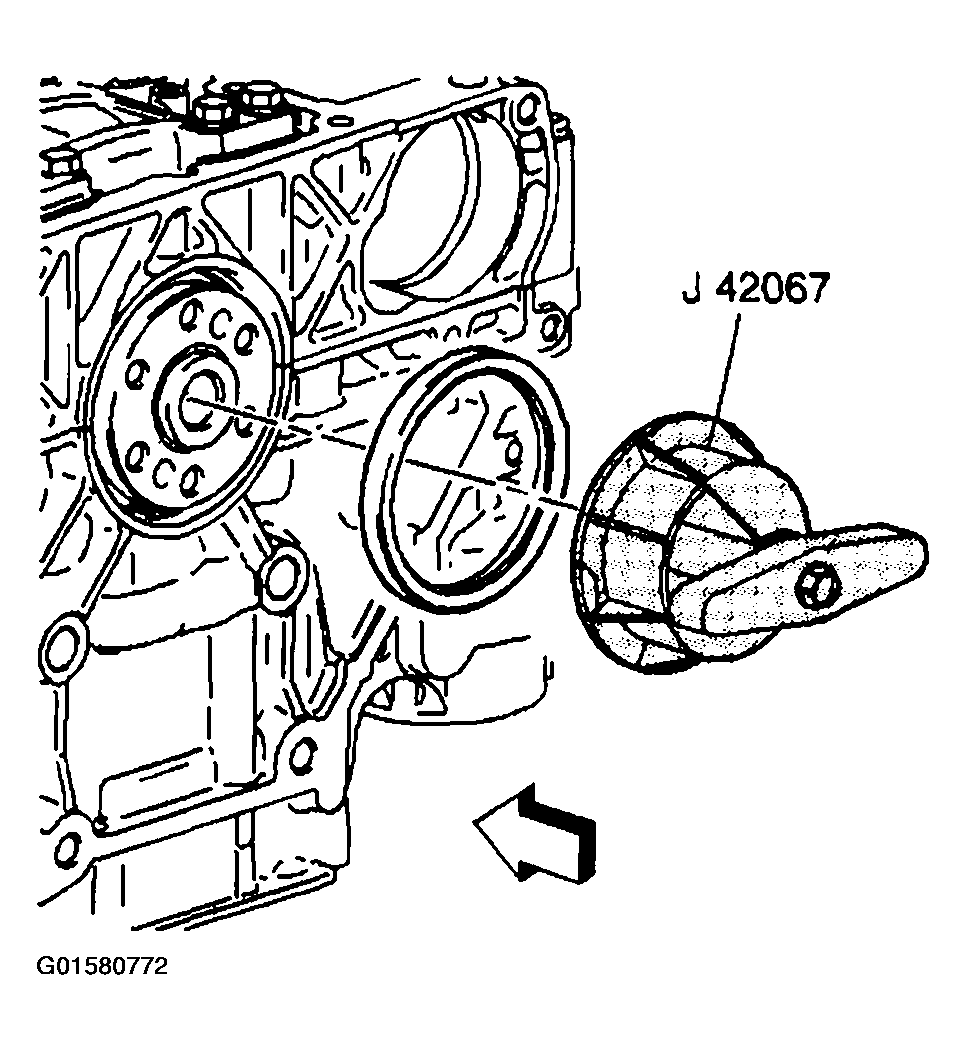

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01580772Courtesy of GENERAL MOTORS CORP.
