Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

J 35268-A  Camshaft/Front Main Seal Installer

  1. Install the seal into the front cover by driving it in from the timing chain side, using the J 35268-A.
  2. Ensure that the engine front cover is properly supported when installing the seal.

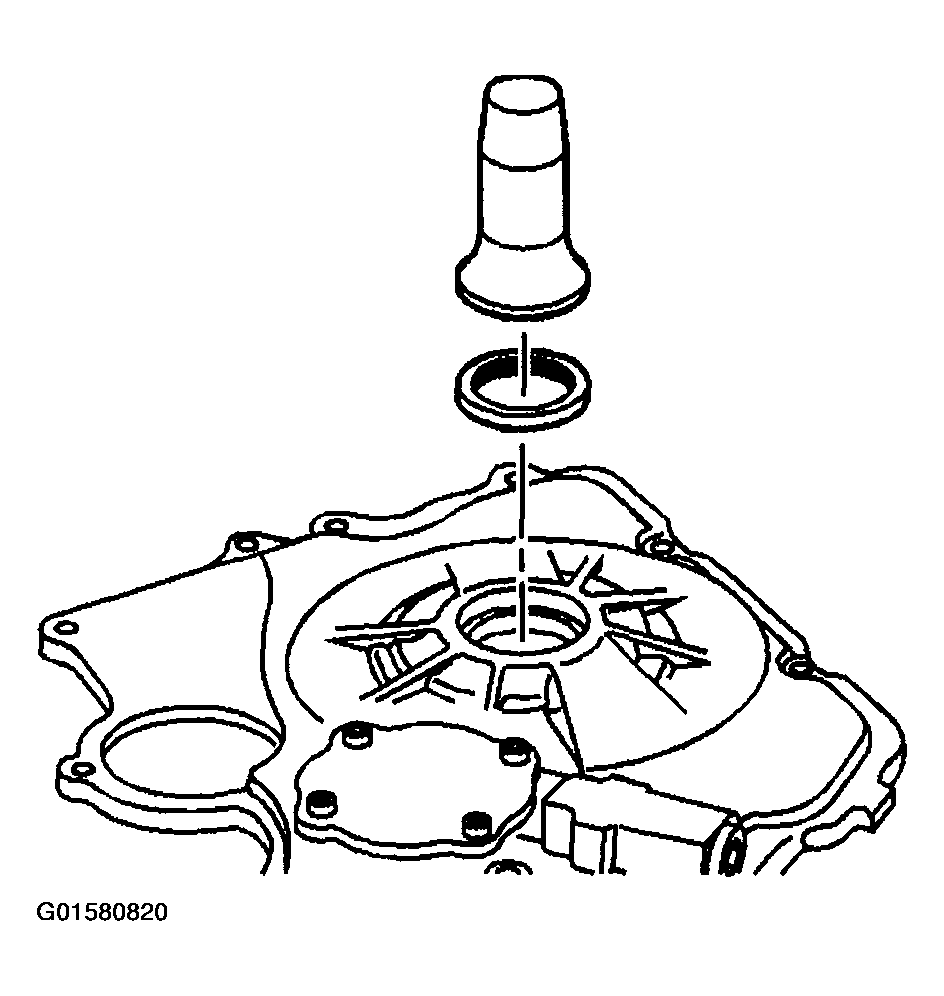

    Fig 1: Installing Crankshaft Front Oil Seal
    G01580820Courtesy of GENERAL MOTORS CORP.
