Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

J 38122-A  Harmonic Balancer Holder

  1. Install the J 38122-A.
  2. Remove the damper retaining bolt and washer. Use the J 38122-A  and a breaker bar in order to prevent the crankshaft from rotating when loosening the bolt.

    Discard the bolt.

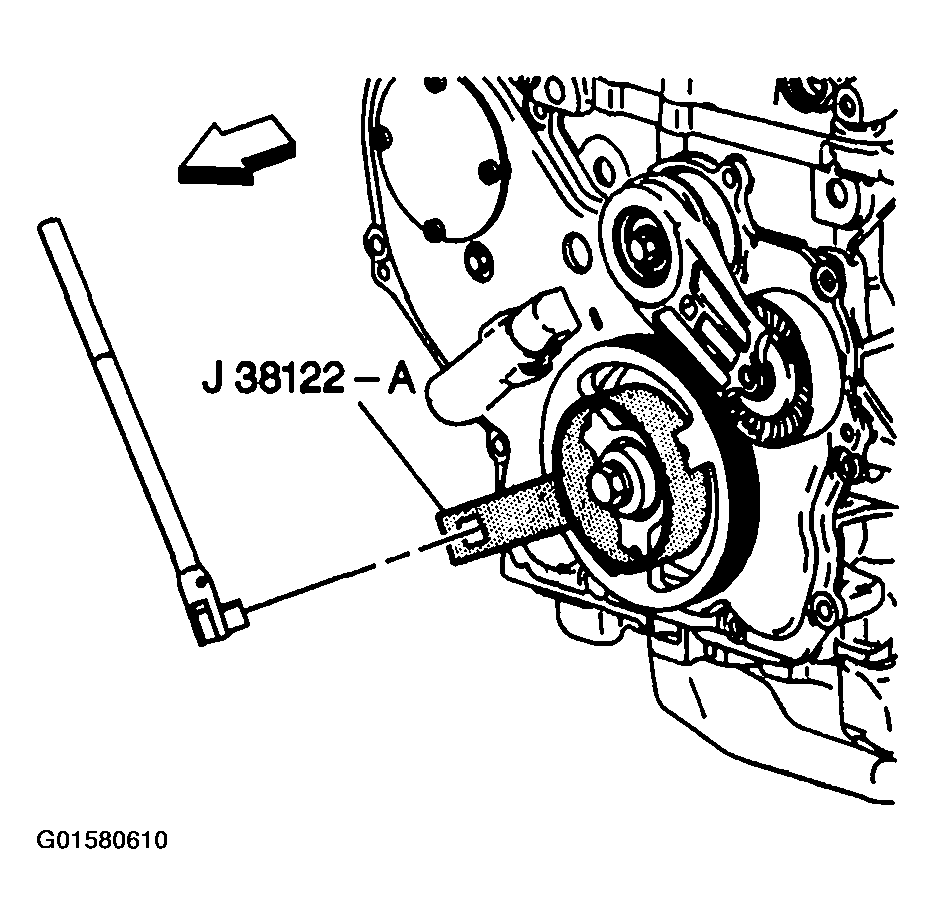

    Fig 1: Installing Harmonic Balancer Holder
    G01580610Courtesy of GENERAL MOTORS CORP.
  3. Remove the damper assembly.

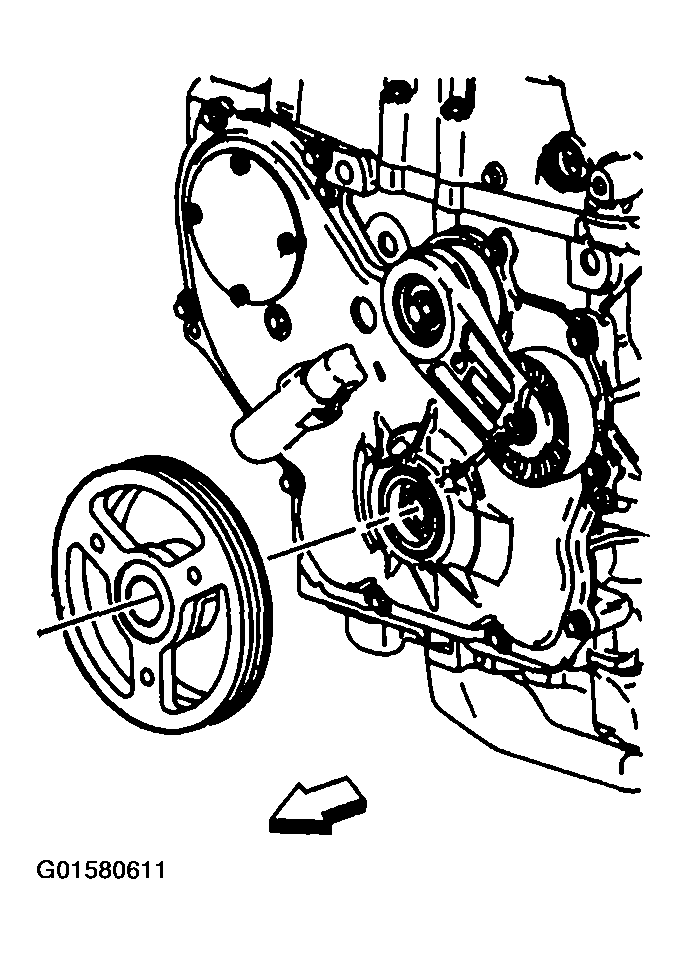

    Fig 2: Removing Harmonic Balancer
    G01580611Courtesy of GENERAL MOTORS CORP.
