Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

J 38122-A  Harmonic Balancer Holder

NOTE: Ensure both components are aligned correctly or serious engine damage will occur.
  1. Install the damper onto the crankshaft indexing keyway. Use care to properly align the keyway and flats on the damper with the oil pump drive.

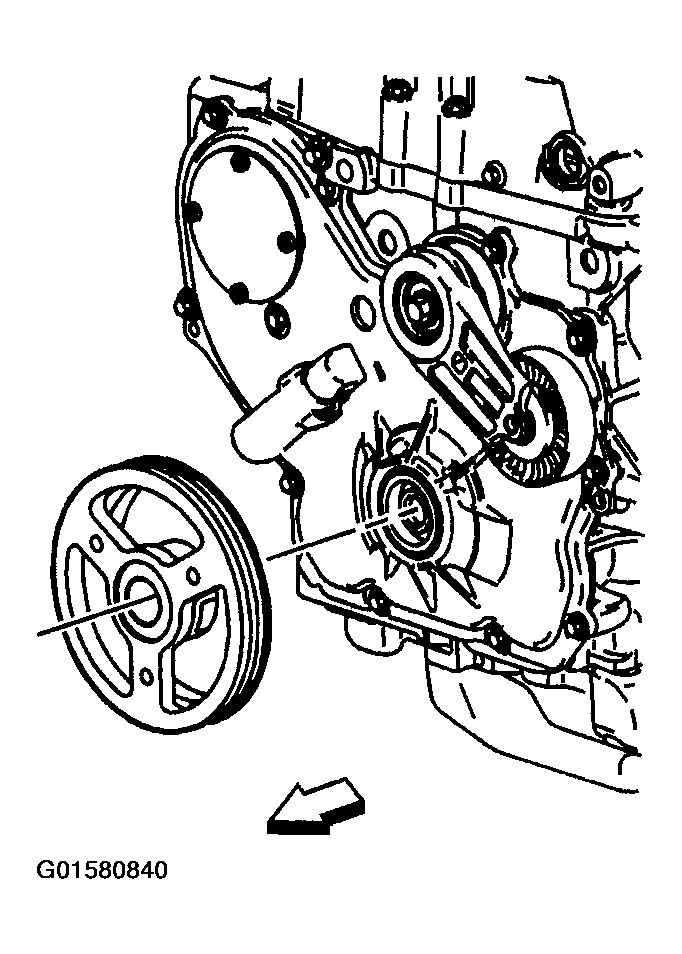

    Fig 1: Installing Crankshaft Damper
    G01580840Courtesy of GENERAL MOTORS CORP.
  2. Install the J 38122-A.

    Important:  Always install a new crankshaft damper retaining bolt and washer.

  3. Install a new retaining bolt and washer. Use the J 38122-A  and a breaker bar in order to prevent the crankshaft from rotating when tightening the bolt.

    Tighten

    Tighten the bolt to 100 N.m (74 lb ft) plus 75 degrees using a torque angle meter.

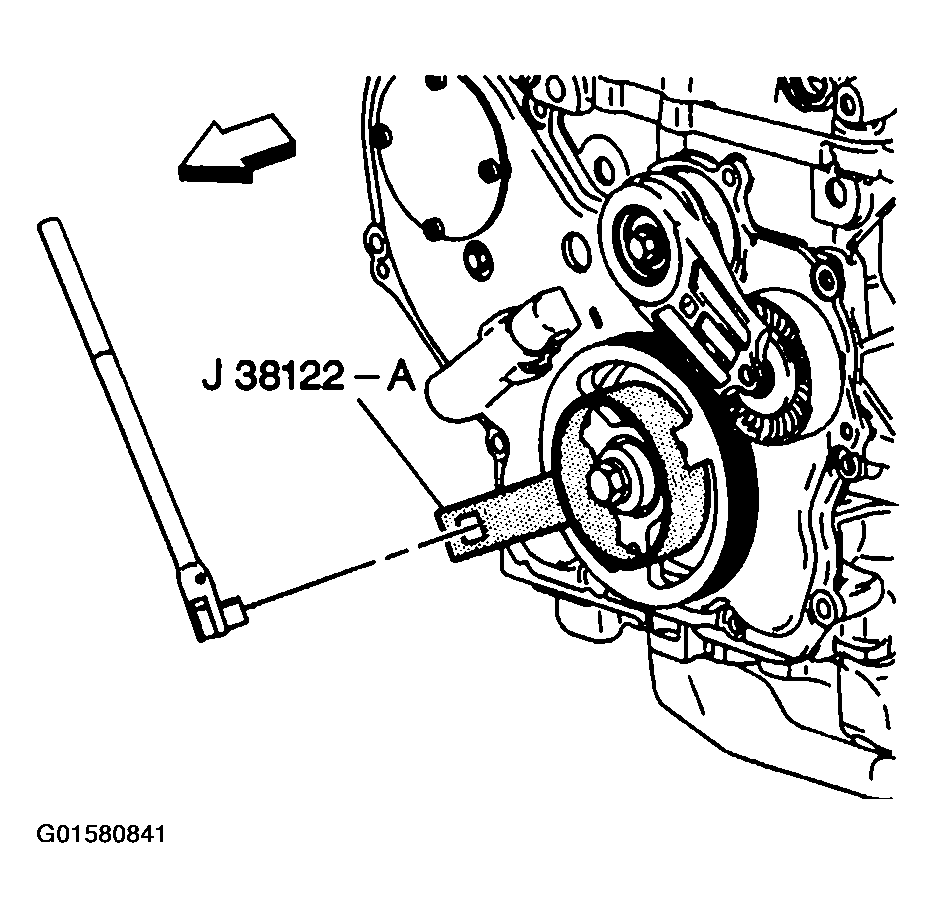

    Fig 2: Tightening Crankshaft Damper Bolt
    G01580841Courtesy of GENERAL MOTORS CORP.
