Camshaft Cover Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the power steering pump, (if equipped).

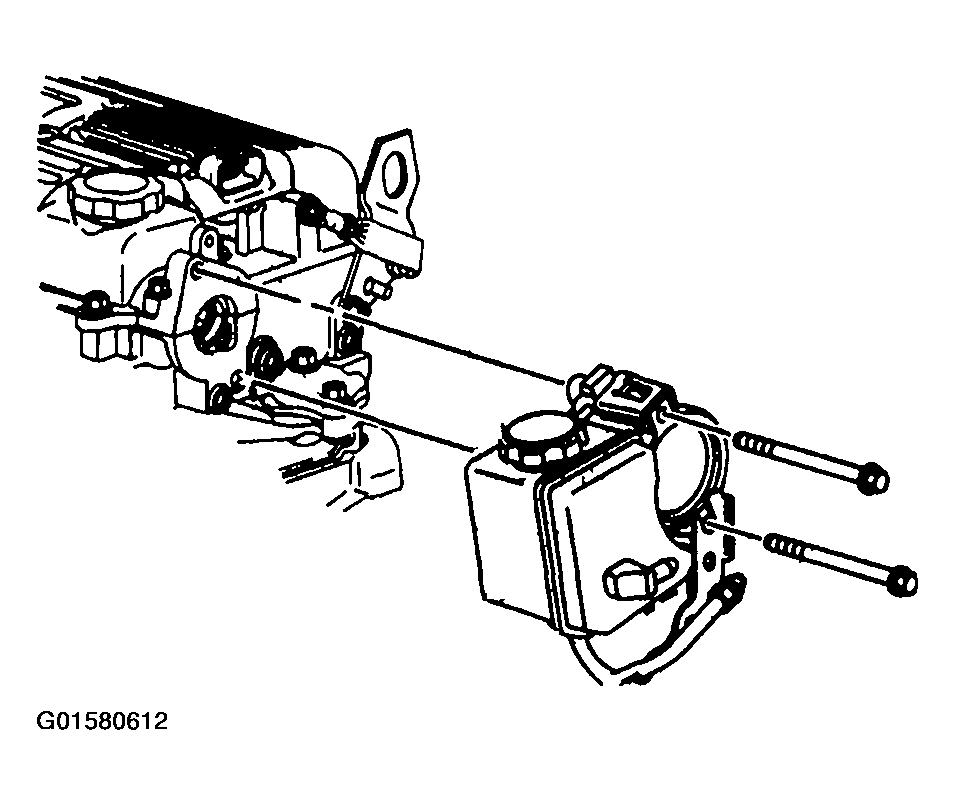

Fig 1: Removing Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft cover grounding strap.

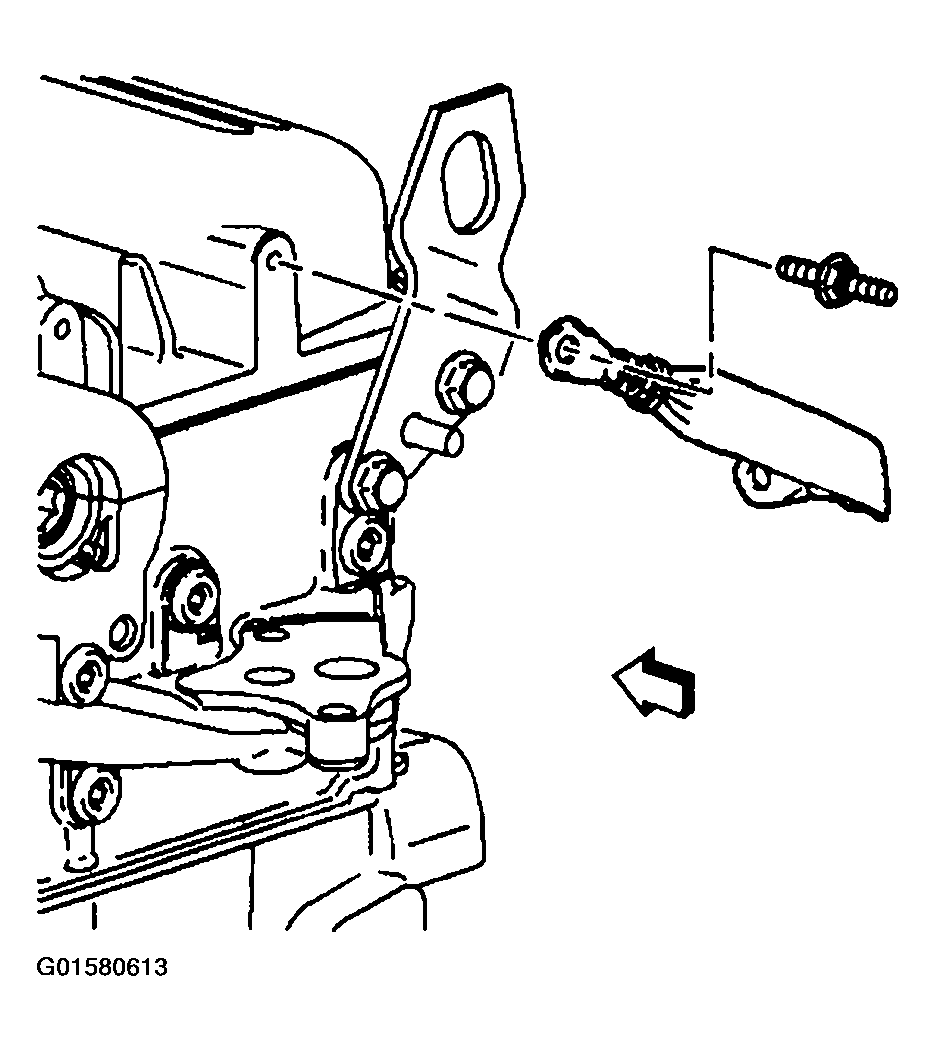

Fig 2: Removing Camshaft Cover Grounding Strap
Courtesy of GENERAL MOTORS CORP.
Remove the front lift bracket.

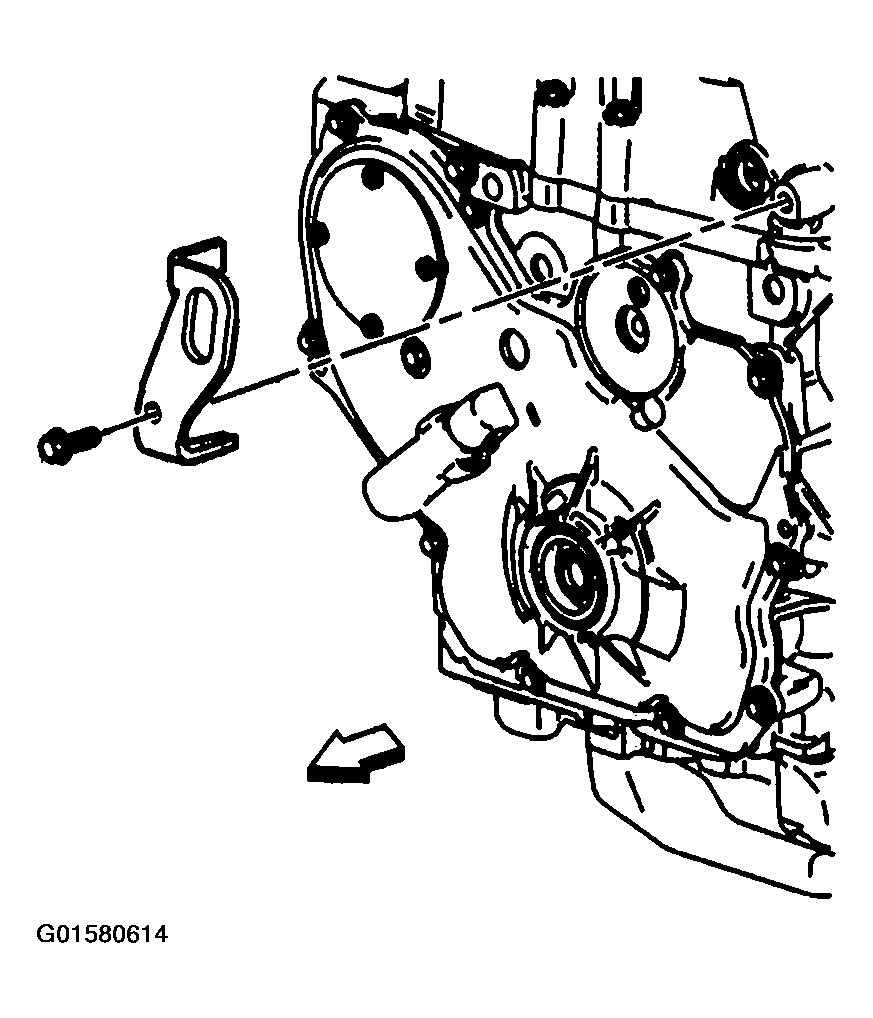

Fig 3: Removing Front Lift Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the rear lift bracket.

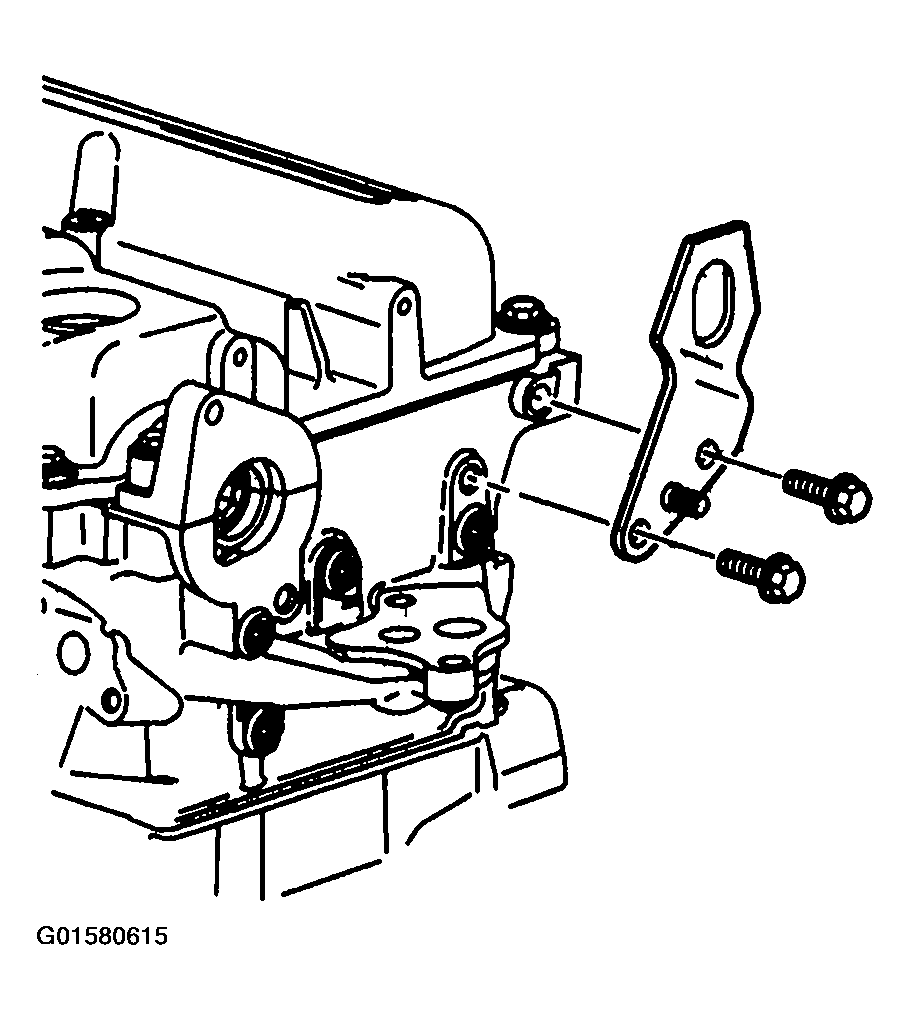

Fig 4: Removing Rear Lift Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the ignition module and coil assembly.

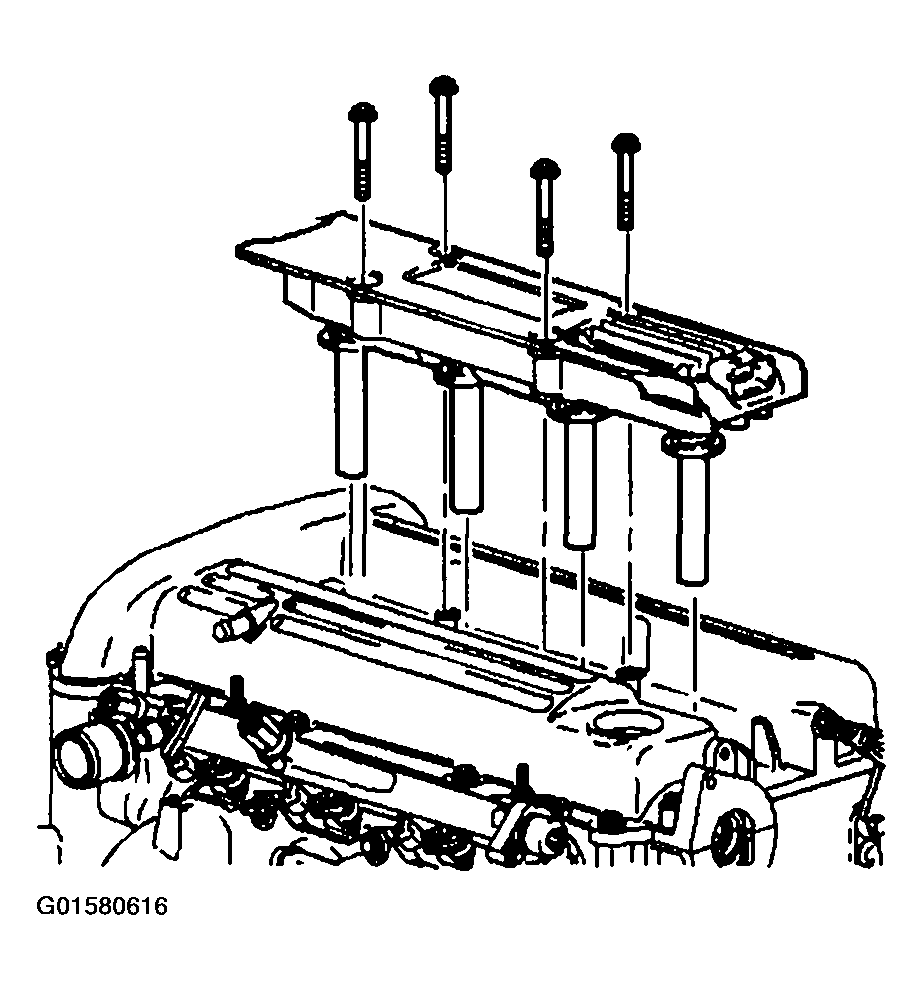

Fig 5: Removing Ignition Module & Coil Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft cover assembly.

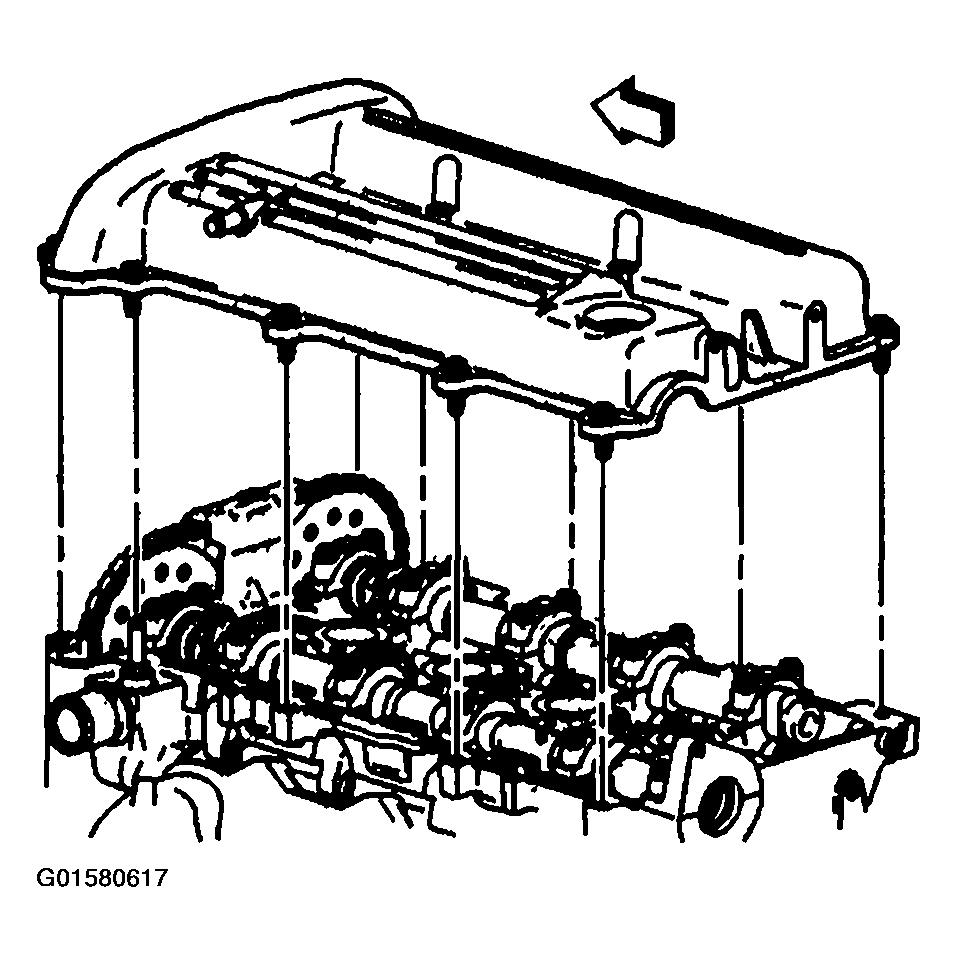

Fig 6: Removing Camshaft Cover
Courtesy of GENERAL MOTORS CORP.
