Disassembled Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

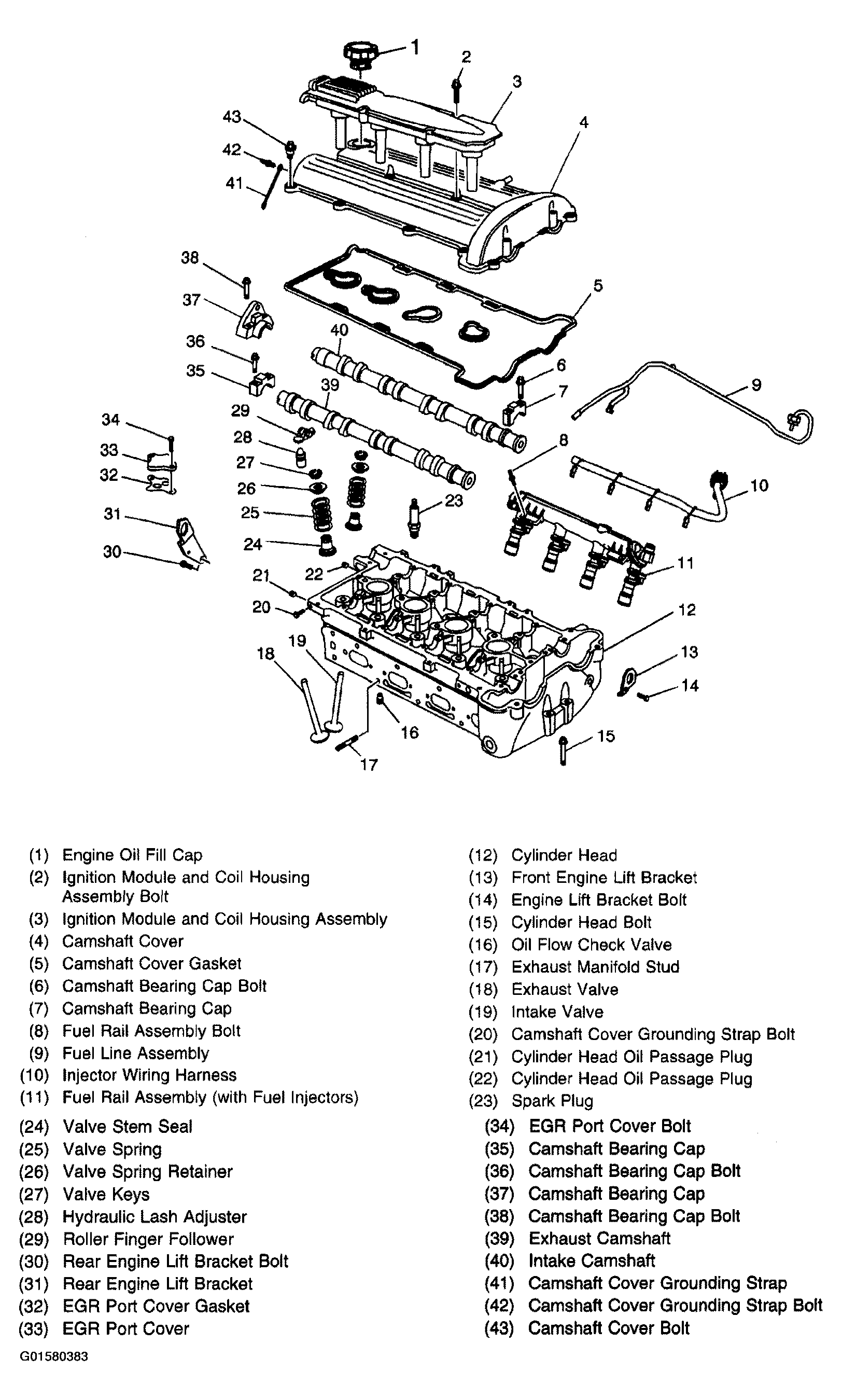

Fig 1: Cylinder Head and Components

Courtesy of GENERAL MOTORS CORP.

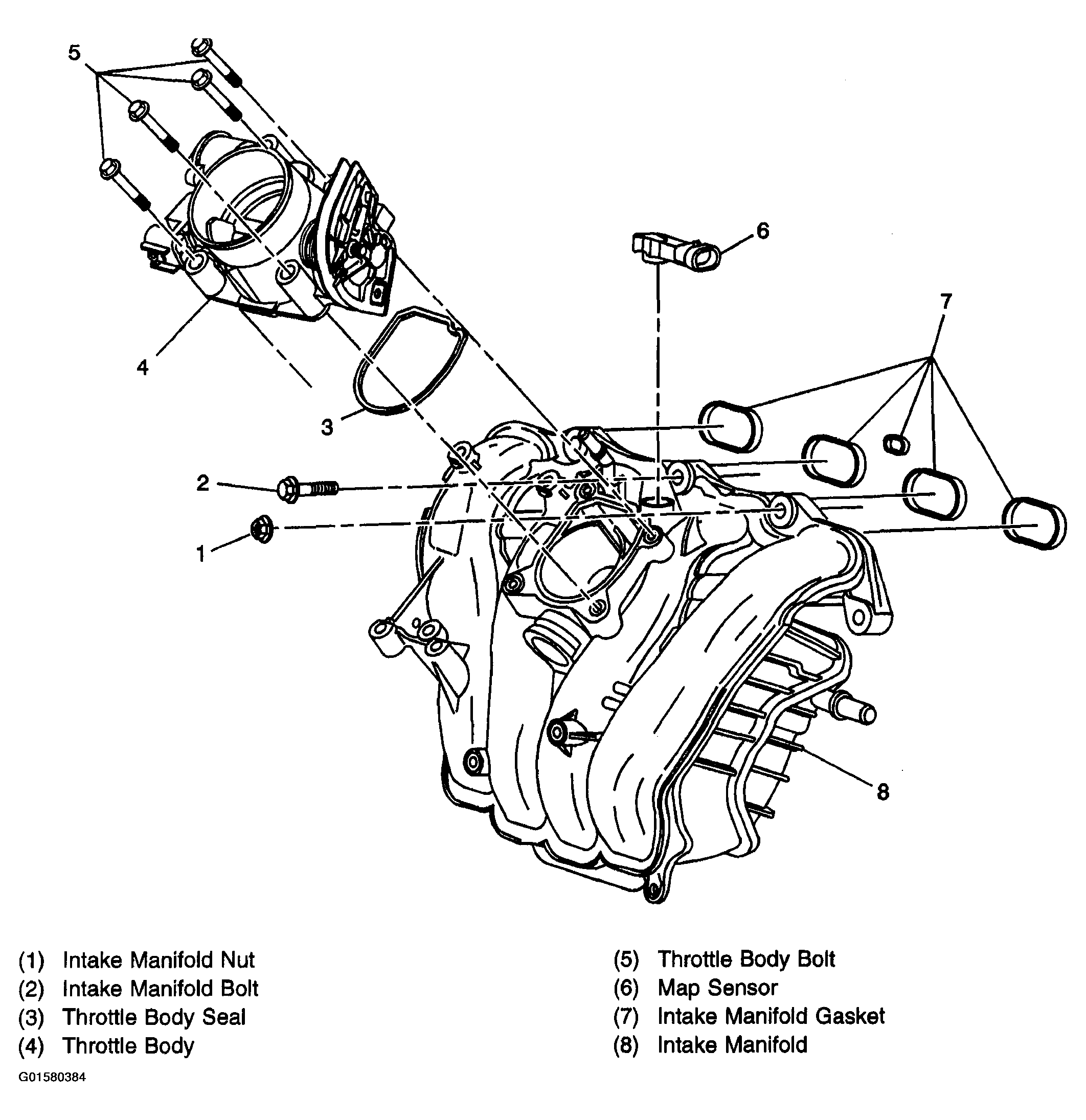

Fig 2: Intake Manifold and Components

Courtesy of GENERAL MOTORS CORP.

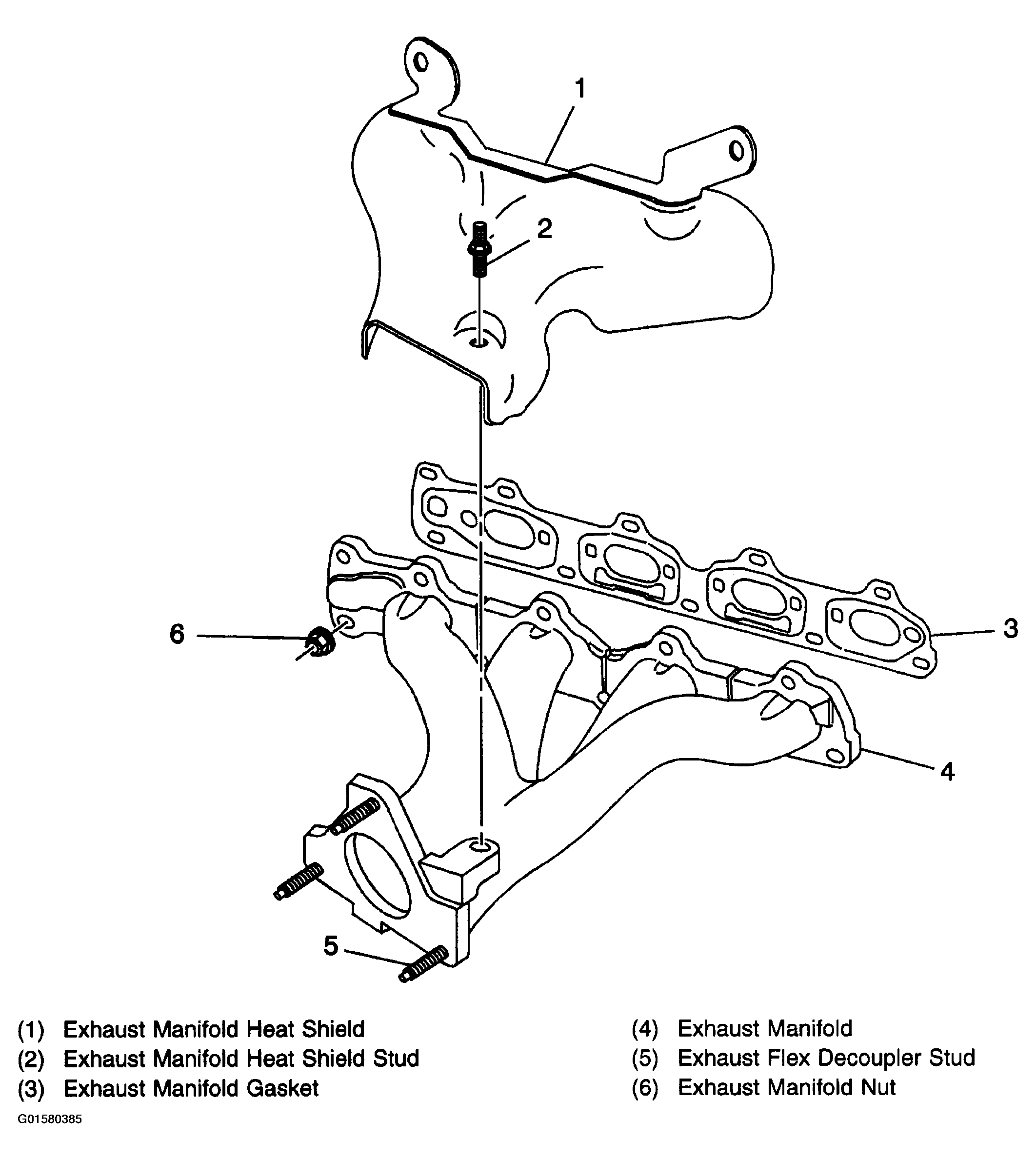

Fig 3: Exhaust Manifold and Components

Courtesy of GENERAL MOTORS CORP.

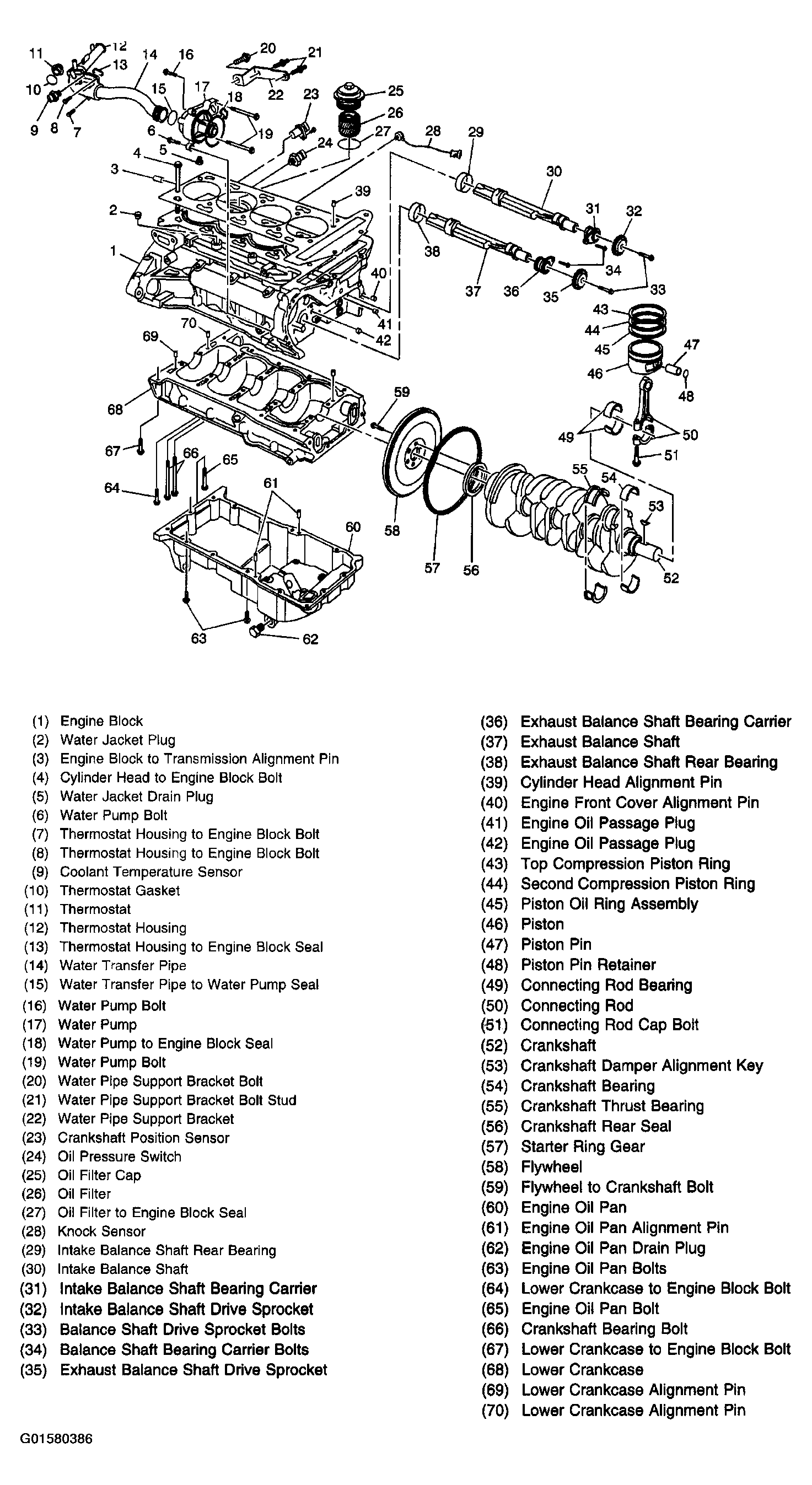

Fig 4: Engine Block and Components

Courtesy of GENERAL MOTORS CORP.

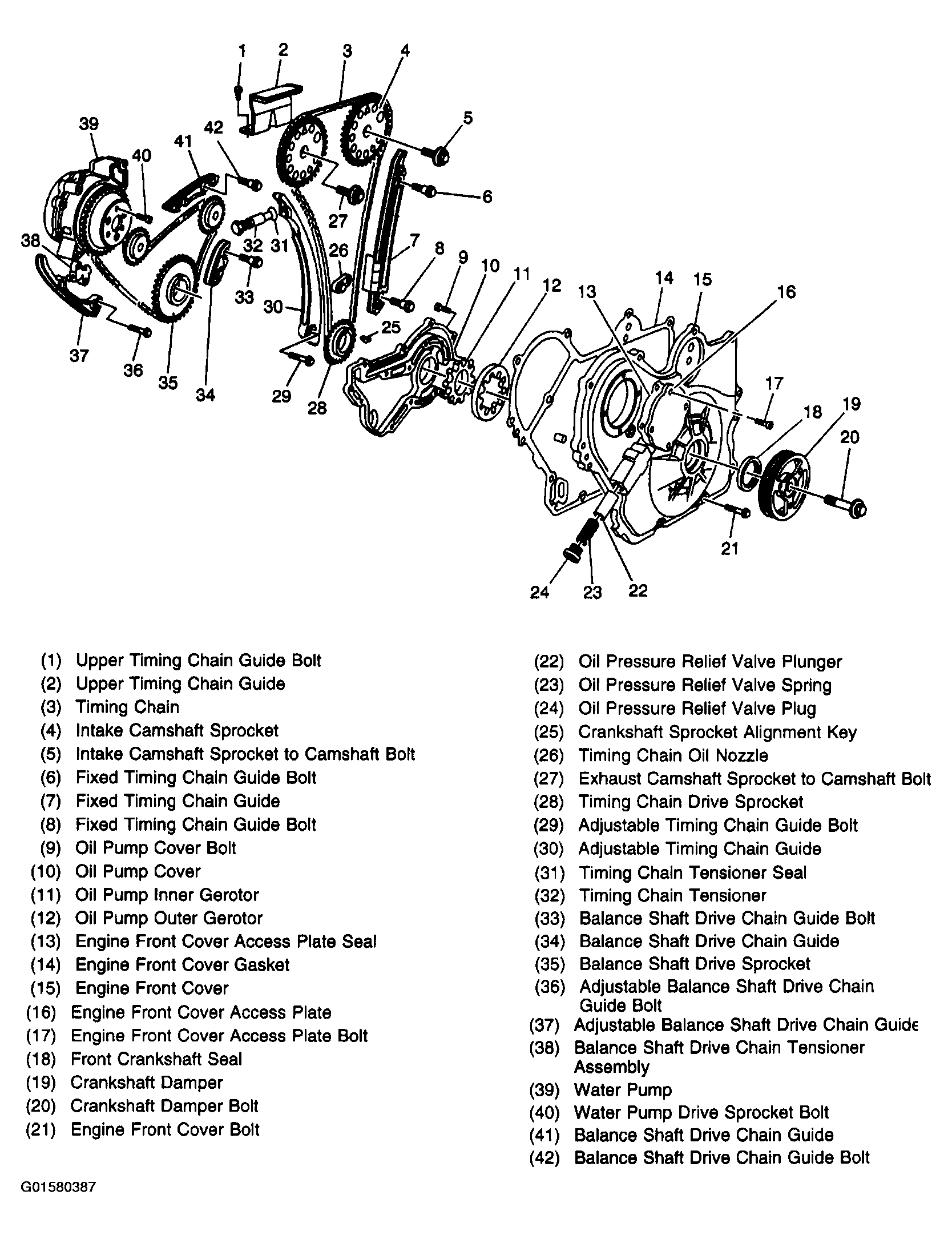

Fig 5: Timing Chain and Components

Courtesy of GENERAL MOTORS CORP.

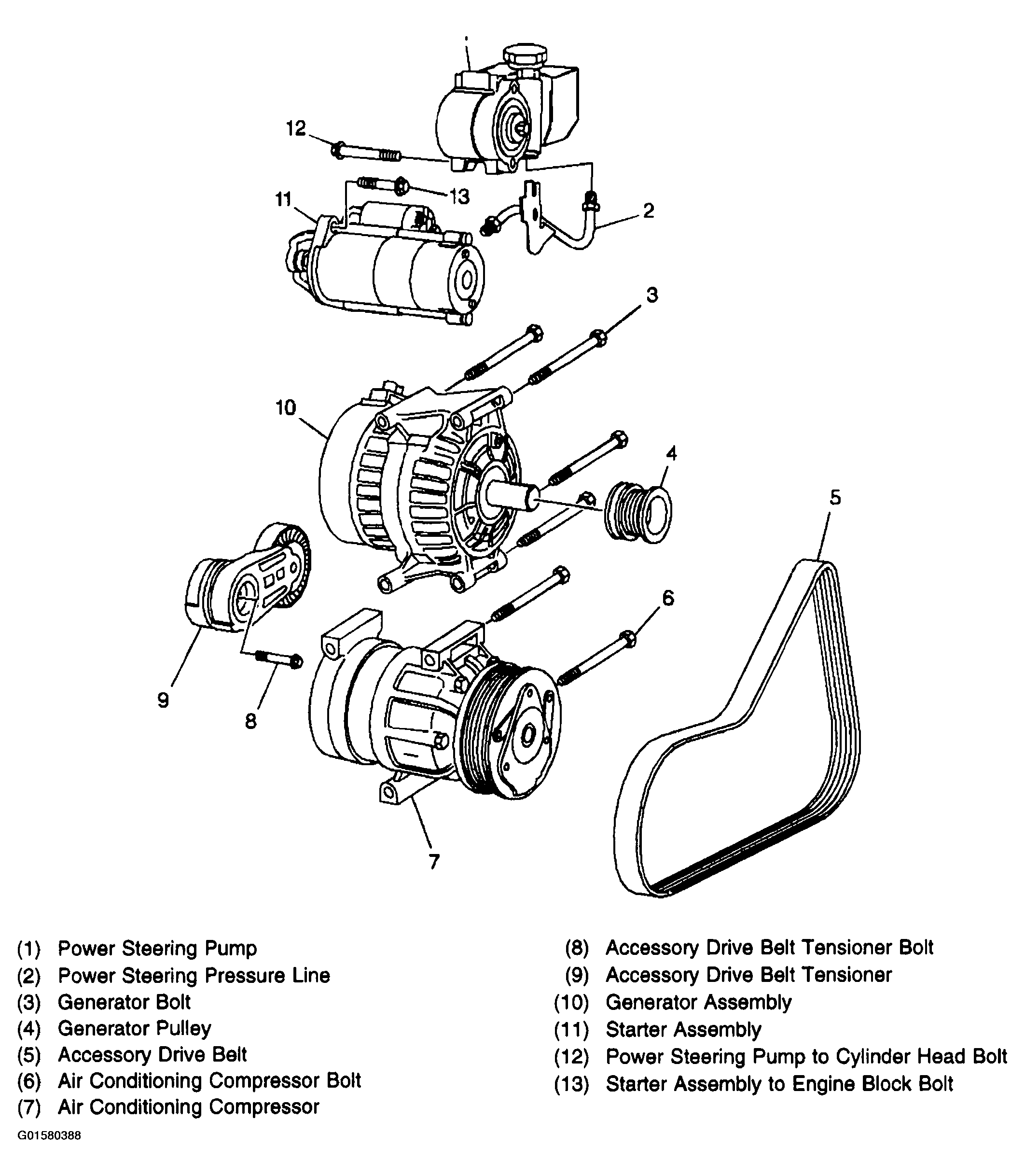

Fig 6: Accessory and Accessory Drive Components

Courtesy of GENERAL MOTORS CORP.
