Removal (2.2L LN2)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Disconnect generator electrical connections.
  3. Remove drive belt.
  4. Remove generator bolts. See Fig 1.
  5. Remove generator.

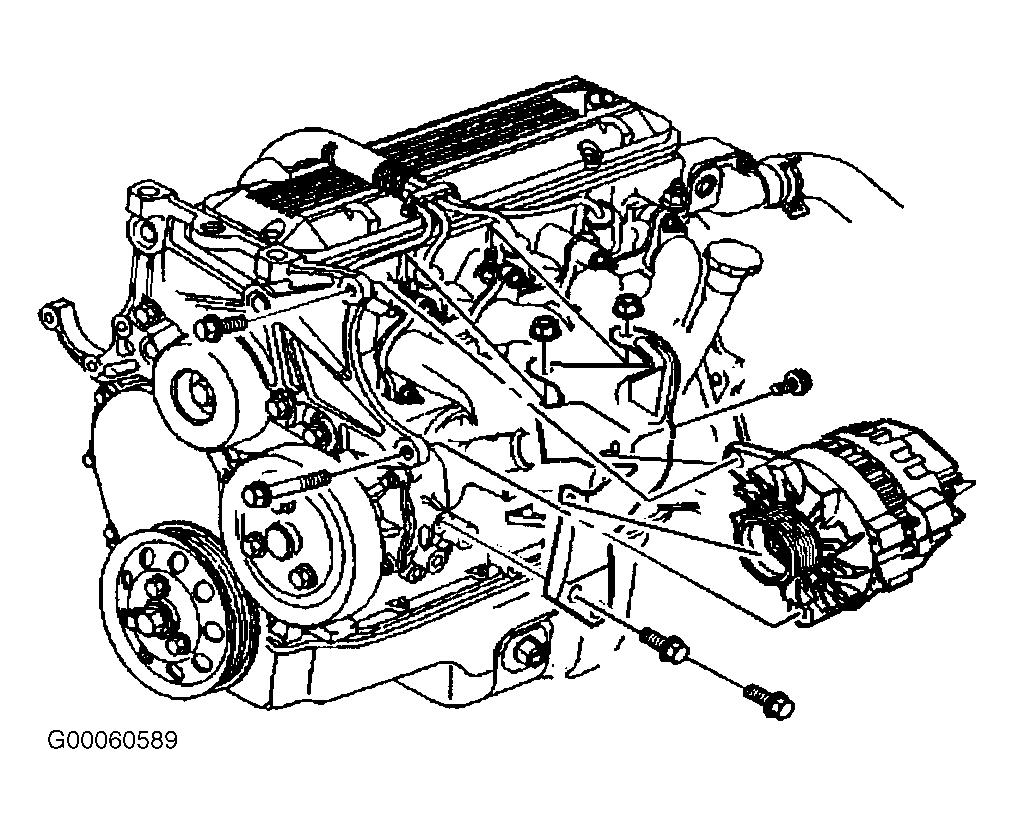

Fig 1: Removing Generator (2.2L)
G00060589Courtesy of GENERAL MOTORS CORP.
