Removal & Installation (Sunfire)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Using flat-blade screwdriver, remove defroster grille. Remove upper trim panel by lifting upward to release retainers. See Fig 1. Remove outer trim covers. Remove accessory trim plate.
  3. Remove screws from upper pad trim. Remove upper pad trim. Remove instrument panel trim pad screws. Remove instrument panel trim pad. To install, reverse removal procedure. Tighten trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

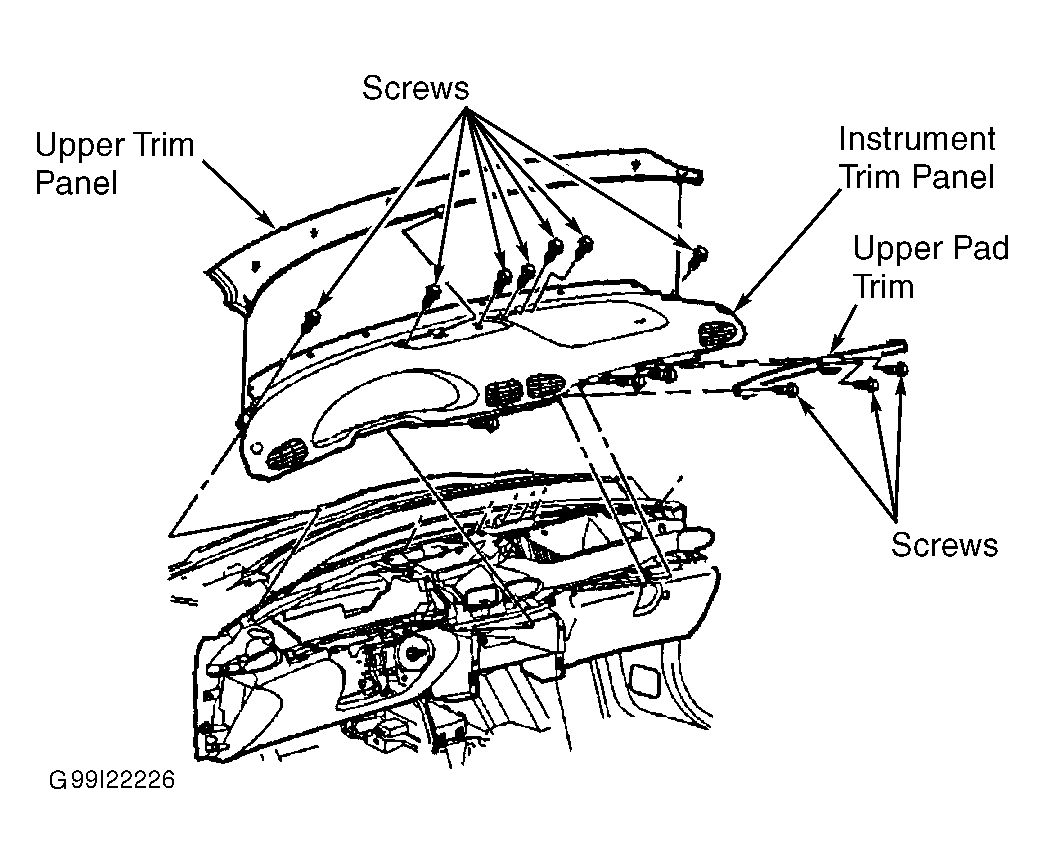

Fig 1: Identifying Instrument Panel Trim Pad (Sunfire)
G99I22226Courtesy of GENERAL MOTORS CORP.
