Removal & Installation (Cavalier)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove defroster grille screw. Using flat-blade screwdriver, remove defroster grille. Remove left and right instrument panel outer trim covers. Open glove box. Remove glove box trim plate. Remove accessory trim plate.
  3. Remove screws from instrument panel trim pad. See Fig 1. Remove trim pad. To install, reverse removal procedure. Tighten trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

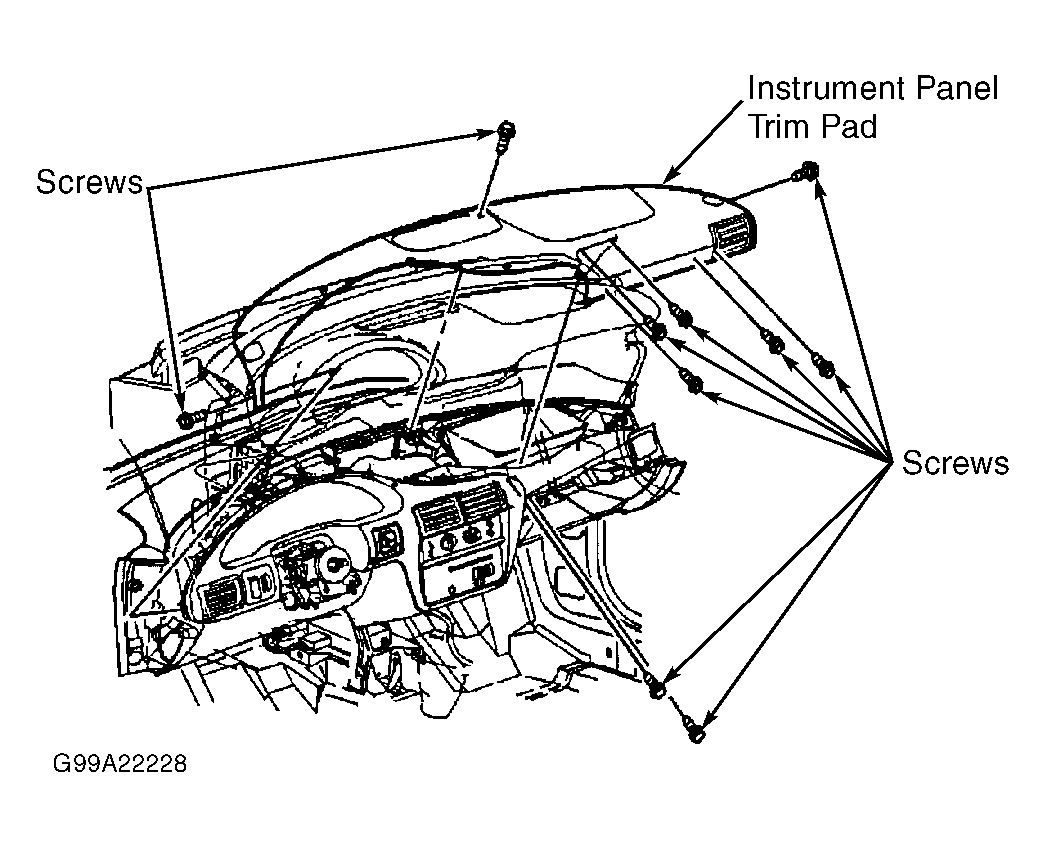

Fig 1: Identifying Instrument Panel Trim Pad (Cavalier)
G99A22228Courtesy of GENERAL MOTORS CORP.
