Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

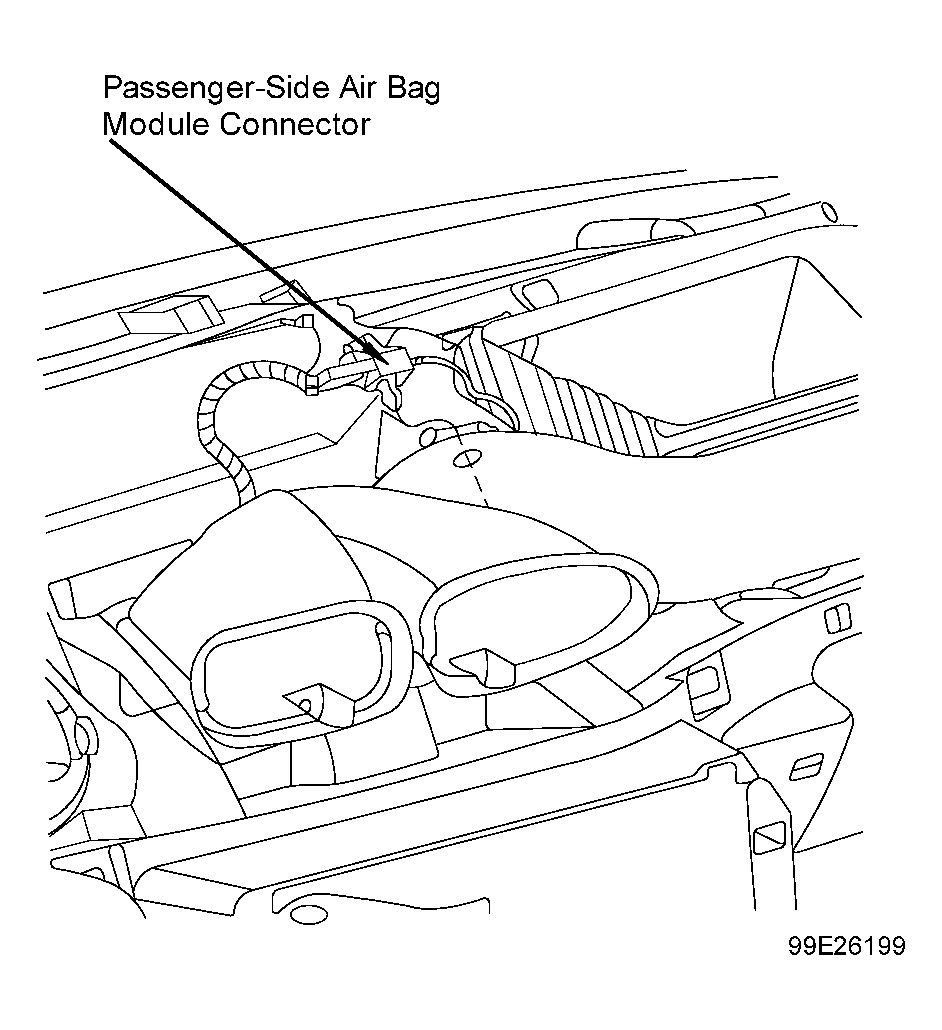

  2. Remove instrument panel trim pad. See INSTRUMENT PANEL TRIM PAD . Remove air distribution duct. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector and disconnect connector. See Figure. Remove passenger-side air bag module bolts. See Fig 1. Remove passenger-side air bag module.
  3. To install, reverse removal procedure. Tighten passenger-side air bag module bolts and instrument panel trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

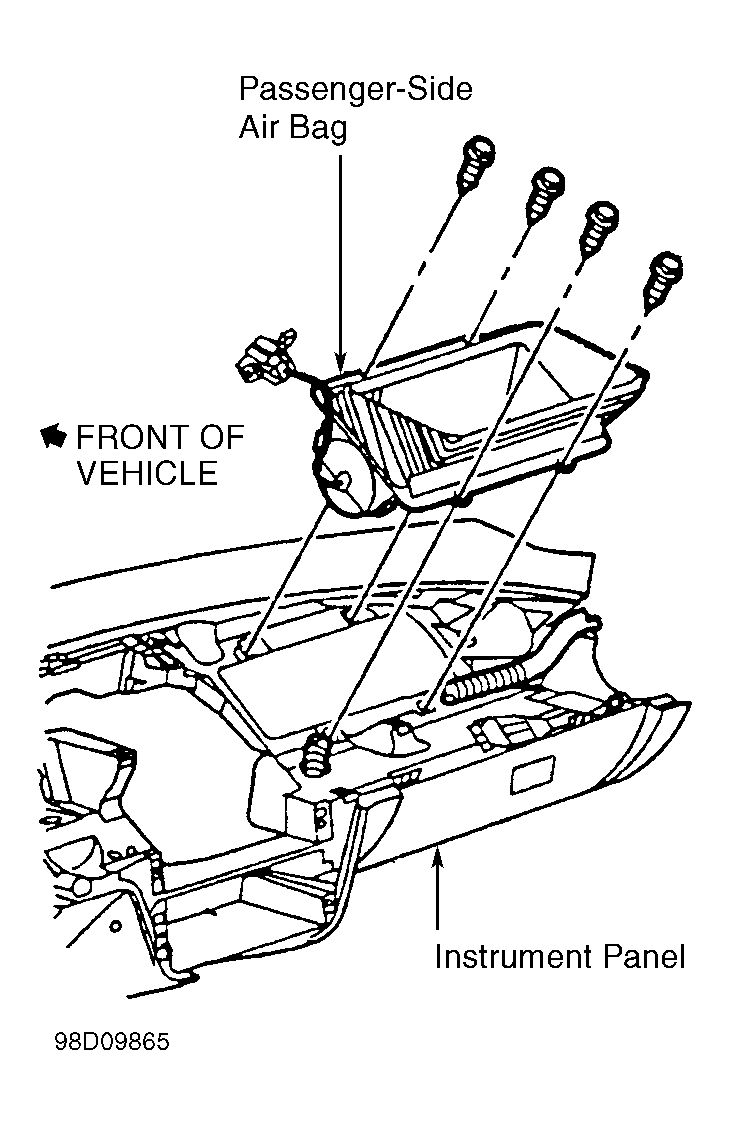

Fig 1: Identifying Passenger-side Air Bag Module
G98D09865Courtesy of GENERAL MOTORS CORP.
